M5-M48
RuiYang
810890

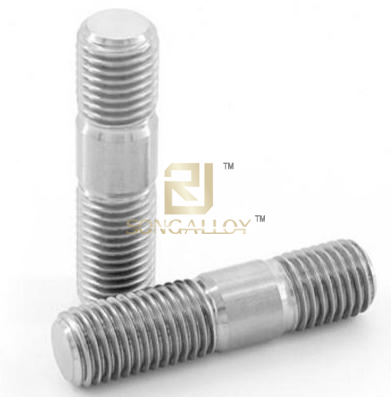

GB/T898 Titanium Double End Studs-bm=1.25d are similar to GB/T897 Double End Studs-bm=1d.
We supply titanium bolts stud end and titanium alloy bolts stud end bolts according to your order standard,sizes,qty and soonest delivery with our factory price.
Mini order of GB/T898 Titanium Double End Studs-bm=1.25d according to the titanium material grade you need.If common pure titanium like Gr2,1 pcs we could produce samples to you.
If other titanium alloy material,according to the raw titanium bars MOQ

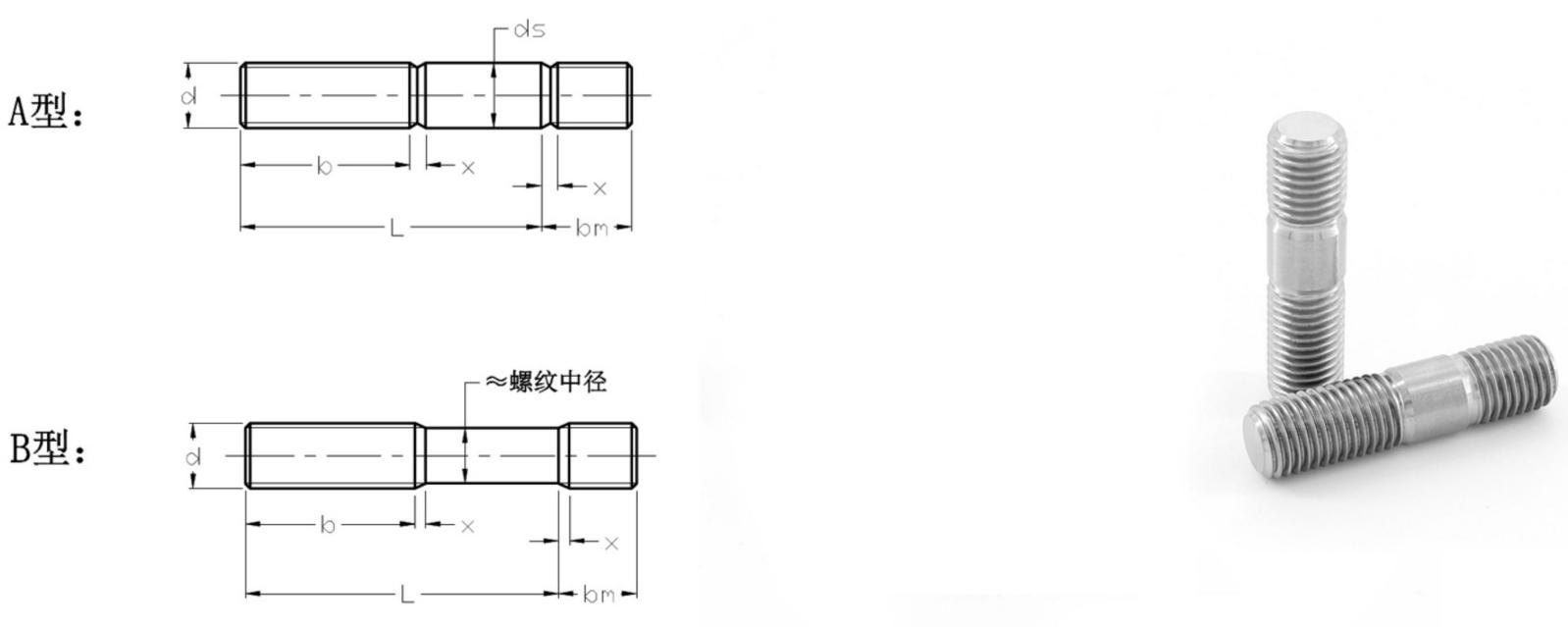

Our Titanium and titanium alloy GB/T898 Double End Studs-bm=1.25d sizes supplying as below:
d | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | （M18） | M20 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
bm | DK | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 |
min | 5.4 | 7.25 | 9.25 | 11.1 | 14.1 | 17.1 | 18.95 | 20.95 | 23.95 | |
max | 6.6 | 8.75 | 10.75 | 12.9 | 15.9 | 18.9 | 21.05 | 23.05 | 26.05 | |
ds | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | |
x | max | 2 | 2.5 | 3.125 | 3.75 | 4.375 | 5 | 5 | 6.25 | 6.25 |
d | （M22） | M24 | （M27） | M30 | （M33） | M36 | （M39） | M42 | M48 | |
P | Pitch | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 5 |
bm | DK | 28 | 30 | 35 | 38 | 41 | 45 | 49 | 52 | 60 |
min | 26.95 | 28.95 | 33.75 | 36.75 | 39.75 | 43.75 | 47.75 | 50.5 | 58.5 | |
max | 29.05 | 31.05 | 36.25 | 39.25 | 42.25 | 46.25 | 50.25 | 53.5 | 61.5 | |
ds | max | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 48 |
min | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 38.38 | 41.38 | 47.38 | |
x | max | 6.25 | 7.5 | 7.5 | 8.75 | 8.75 | 10 | 10 | 11.25 | 12.5 |
Welcome contact us for Titanium Alloy fasteners and GB/T898 Titanium Double End Studs-bm=1.25d bolts inquiry,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
