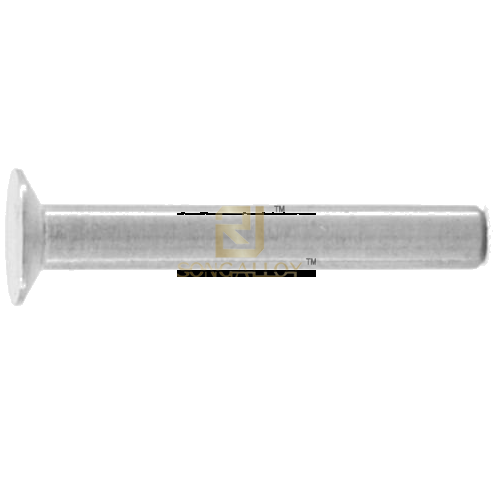

GB/T869 Titanium Countersunk Head Rivets are for riveting occasions with smooth surface and small load.We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium pipe and flange,pipe fittings,Ti wire rope,Ti Shackles etc.

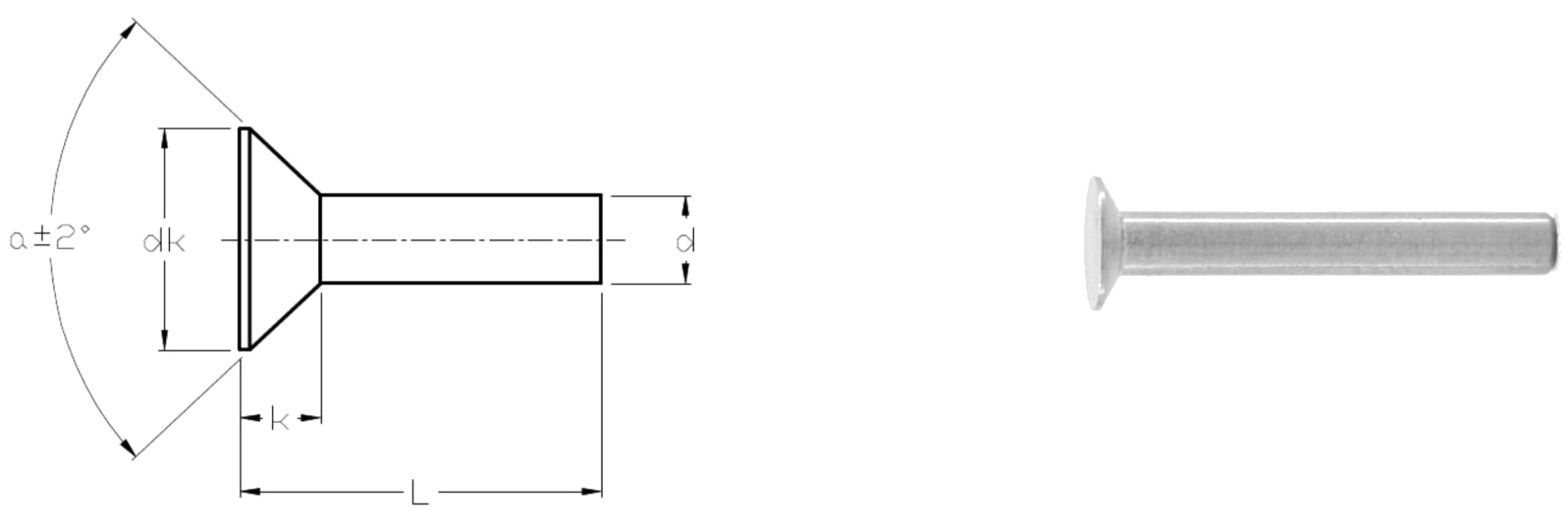

Our GB/T869 Titanium Countersunk Head Rivets Dimensions:
nominal diameter | d | dk | k | α | ||
max | min | max | min | ≈ | ||
1 | 1.06 | 0.94 | 2.03 | 1.77 | 0.5 | 90 |
（1.2） | 1.26 | 1.14 | 2.23 | 1.97 | 0.5 | 90 |
1.4 | 1.46 | 1.34 | 2.83 | 2.57 | 0.7 | 90 |
（1.6） | 1.66 | 1.54 | 3.03 | 2.77 | 0.7 | 90 |
2 | 2.06 | 1.94 | 4.05 | 3.75 | 1 | 90 |
2.5 | 2.56 | 2.44 | 4.75 | 4.45 | 1.1 | 90 |
3 | 3.06 | 2.94 | 535 | 5.05 | 1.2 | 90 |
（3.5） | 3.58 | 3.42 | 6.28 | 5.92 | 1.4 | 90 |
4 | 4.08 | 3.92 | 7.18 | 6.82 | 1.6 | 90 |
5 | 5.08 | 4.92 | 8.98 | 8.62 | 2 | 90 |
6 | 6.08 | 5.92 | 10.62 | 10.18 | 2.4 | 90 |
8 | 8.1 | 7.9 | 14.22 | 13.78 | 3.2 | 90 |
10 | 10.1 | 9.9 | 17.82 | 17.38 | 4 | 90 |
12 | 12.12 | 11.88 | 18.86 | 18.34 | 6 | 60 |
（14） | 14.12 | 13.88 | 21.76 | 21.24 | 7 | 60 |
16 | 16.12 | 15.88 | 24.96 | 24.44 | 8 | 60 |
Welcome contact us for Titanium Alloy fasteners and GB/T869 Titanium Countersunk Head Rivets inquiry,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
