M1.6-M24
RuiYang
810890
Where to Buy GB/T77 Titanium and Titanium alloy Hexagon Socket Set Screws with Flat Point?Please contact us

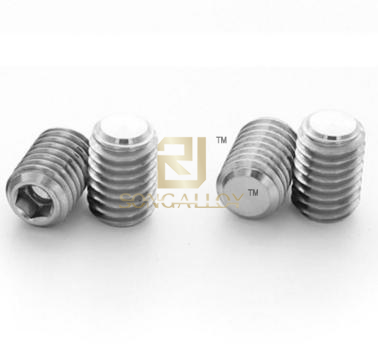

GB/T77 Titanium Hexagon Socket Set Screws with Flat Point are used for fixing the relative position of fastener parts, especially for axial positioning,widely used in situations where the nail head is not allowed to be exposed on the surface.
We are an audited fasteners supplier by SGS and BV,specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.
GB/T77 Hexagon Socket Set Screws with Flat Point sizes and dimensions
d | P | dp | e | s | t | ||||
Picth | max | min | min | DK | max | min | min | ||
short screw | long screw | ||||||||
M1.6 | 0.35 | 0.80 | 0.55 | 0.803 | 0.7 | 0.724 | 0.711 | 0.7 | 1.5 |
M2 | 0.4 | 1.00 | 0.75 | 1.003 | 0.9 | 0.902 | 0.889 | 0.8 | 1.7 |
M2.5 | 0.45 | 1.50 | 1.25 | 1.427 | 1.3 | 1.295 | 1.270 | 1.2 | 2 |
M3 | 0.5 | 2.00 | 1.75 | 1.73 | 1.5 | 1.545 | 1.520 | 1.2 | 2 |
M4 | 0.7 | 2.50 | 2.25 | 2.3 | 2 | 2.045 | 2.020 | 1.5 | 2.5 |
M5 | 0.8 | 3.5 | 3.2 | 2.87 | 2.5 | 2.560 | 2.520 | 2 | 3 |
M6 | 1 | 4.0 | 3.7 | 3.44 | 3 | 3.071 | 3.020 | 2 | 3.5 |
M8 | 1.25 | 5.5 | 5.2 | 4.58 | 4 | 4.084 | 4.020 | 3 | 5 |
M10 | 1.5 | 7.00 | 6.64 | 5.72 | 5 | 5.084 | 5.020 | 4 | 6 |
M12 | 1.75 | 8.50 | 8.14 | 6.86 | 6 | 6.095 | 6.020 | 4.8 | 8 |
M16 | 2 | 12.00 | 11.57 | 9.15 | 8 | 8.115 | 8.025 | 6.4 | 10 |
M20 | 2.5 | 15.00 | 14.57 | 11.43 | 10 | 10.115 | 10.025 | 8 | 12 |
M24 | 3 | 18.00 | 17.57 | 13.72 | 12 | 12.42 | 12.032 | 10 | 15 |
Welcome contact us for GB/T77 Titanium Hexagon Socket Set Screws with Flat Point,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
