M1.2-M12
RuiYang
810890

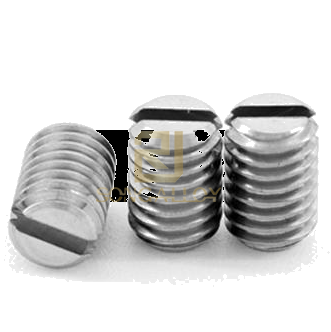

GB/T73 Titanium Slotted Set Screws with Flat Point are used to bind two objects together by threading into one object and exerting pressure on the other object. Flat Point Set Screws are intended to be mated up against a flat surface.
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
We are an audited fasteners supplier by SGS and BV,specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.
Our supply Titanium and titanium alloy China standard GB/T73 Slotted Set Screws with Flat Point Dimensions:
d | M1.2 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
P | Pitch | 0.25 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
dp | min | 0.35 | 0.55 | 0.75 | 1.25 | 1.75 | 2.25 | 3.2 | 3.7 | 5.2 | 6.64 | 8.14 |
max | 0.6 | 0.8 | 1 | 1.5 | 2 | 2.5 | 3.5 | 4 | 5.5 | 7 | 8.5 | |
n | DK | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 2 |
min | 0.26 | 0.31 | 0.31 | 0.46 | 0.46 | 0.66 | 0.86 | 1.06 | 1.26 | 1.66 | 2.06 | |
max | 0.4 | 0.45 | 0.45 | 0.6 | 0.6 | 0.8 | 1 | 1.2 | 1.51 | 1.91 | 2.31* | |
t | min | 0.4 | 0.56 | 0.64 | 0.72 | 0.8 | 1.12 | 1.28 | 1.6 | 2 | 2.4 | 2.8 |
max | 0.52 | 0.74 | 0.84 | 0.95 | 1.05 | 1.42 | 1.63 | 2 | 2.5 | 3 | 3.6 | |
Welcome contact us for GB/T73 Titanium Slotted Set Screws with Flat Point inquiry.One stop service for supply all kinds of titanium bolts and nuts,pure titanium screws and full thread hexagon head bolts and half thread bolts,heavy nuts and thin nuts,countersunk screws and related titanium fasteners,Titanium cnc parts,just mail us info@topqualityalloy.com with necessary sizes and quantity.
GB/T73 Titanium Slotted Set Screws with Flat Point are used to bind two objects together by threading into one object and exerting pressure on the other object. Flat Point Set Screws are intended to be mated up against a flat surface.
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
We are an audited fasteners supplier by SGS and BV,specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.
Our supply Titanium and titanium alloy China standard GB/T73 Slotted Set Screws with Flat Point Dimensions:
d | M1.2 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
P | Pitch | 0.25 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
dp | min | 0.35 | 0.55 | 0.75 | 1.25 | 1.75 | 2.25 | 3.2 | 3.7 | 5.2 | 6.64 | 8.14 |
max | 0.6 | 0.8 | 1 | 1.5 | 2 | 2.5 | 3.5 | 4 | 5.5 | 7 | 8.5 | |
n | DK | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 2 |
min | 0.26 | 0.31 | 0.31 | 0.46 | 0.46 | 0.66 | 0.86 | 1.06 | 1.26 | 1.66 | 2.06 | |
max | 0.4 | 0.45 | 0.45 | 0.6 | 0.6 | 0.8 | 1 | 1.2 | 1.51 | 1.91 | 2.31* | |
t | min | 0.4 | 0.56 | 0.64 | 0.72 | 0.8 | 1.12 | 1.28 | 1.6 | 2 | 2.4 | 2.8 |
max | 0.52 | 0.74 | 0.84 | 0.95 | 1.05 | 1.42 | 1.63 | 2 | 2.5 | 3 | 3.6 | |
Welcome contact us for GB/T73 Titanium Slotted Set Screws with Flat Point inquiry.One stop service for supply all kinds of titanium bolts and nuts,pure titanium screws and full thread hexagon head bolts and half thread bolts,heavy nuts and thin nuts,countersunk screws and related titanium fasteners,Titanium cnc parts,just mail us info@topqualityalloy.com with necessary sizes and quantity.
