M1.2-M12
RuiYang

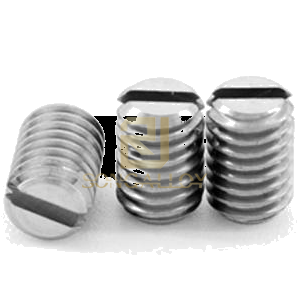

GB/T 73 Stainless Steel Slotted Set Screws are used to fasten the relative positions of two parts,with Flat Point the slotted setting screw has a small pressing force.

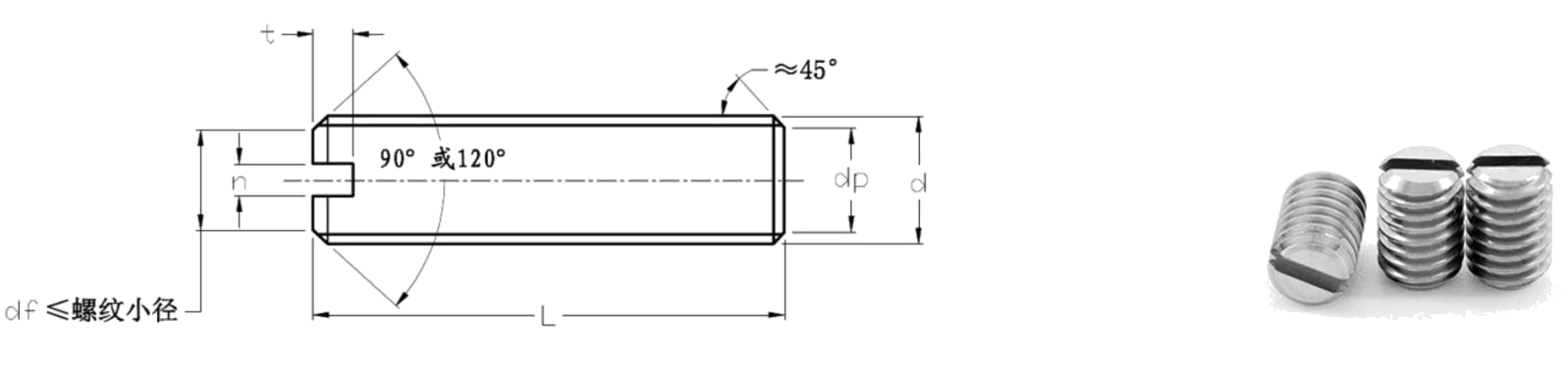

The details of GB/T73 Stainless Steel Slotted Set Screws sizes and drawings as below:
d | M1.2 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |
P | pitch | 0.25 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
dp | min | 0.35 | 0.55 | 0.75 | 1.25 | 1.75 | 2.25 | 3.2 | 3.7 | 5.2 | 6.64 | 8.14 |
max | 0.6 | 0.8 | 1 | 1.5 | 2 | 2.5 | 3.5 | 4 | 5.5 | 7 | 8.5 | |
n | DK | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 2 |
min | 0.26 | 0.31 | 0.31 | 0.46 | 0.46 | 0.66 | 0.86 | 1.06 | 1.26 | 1.66 | 2.06 | |
max | 0.4 | 0.45 | 0.45 | 0.6 | 0.6 | 0.8 | 1 | 1.2 | 1.51 | 1.91 | 2.31* | |
t | min | 0.4 | 0.56 | 0.64 | 0.72 | 0.8 | 1.12 | 1.28 | 1.6 | 2 | 2.4 | 2.8 |
max | 0.52 | 0.74 | 0.84 | 0.95 | 1.05 | 1.42 | 1.63 | 2 | 2.5 | 3 | 3.6 | |
One stop service for supply all kinds of stainless steel bolts and stainless steel nuts,full thread hexagon head bolts and half thread bolts,heavy nuts and thin nuts,countersunk screws and related stainless steel fasteners.
Welcome contact us for GB/T73 Stainless Steel Slotted Set Screws also titanium hex bolts and nuts,just mail us info@topqualityalloy.com with necessary information.
