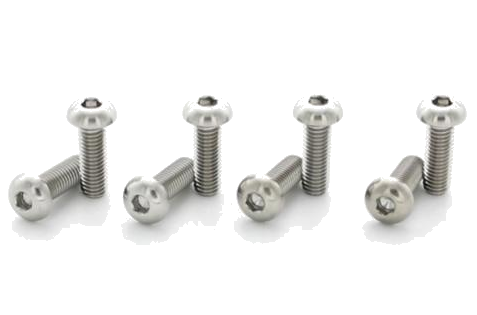

Our factory professional supply GB/T70.2 Titanium Hexagon Socket Head Cap Screws,this type ti screws refers to a screw with a hexagon socket head and a flat round head.Generally used on the outer plane,its appearance is more beautiful and smooth in titanium and titanium alloy screws.
GB/T70.2 Titanium Hexagon Socket Head Cap Screws sizes and drawings details as below:
d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | |
p | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
a | max | 1 | 1.4 | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 |
min | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | |
da | max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 14.2 | 18.2 |
dk | max | 5.7 | 7.60 | 9.50 | 10.50 | 14.00 | 17.50 | 21.00 | 28.00 |
min | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | 27.48 | |
e | min | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 |
k | max | 1.65 | 2.20 | 2.75 | 3.3 | 4.4 | 5.5 | 6.60 | 8.80 |
min | 1.40 | 1.95 | 2.50 | 3.0 | 4.1 | 5.2 | 6.24 | 8.44 | |
r | min | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 |
s | DK | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
max | 2.08 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | |
min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | |
t | min | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | 5.2 |
w | min | 0.2 | 0.3 | 0.38 | 0.74 | 1.05 | 1.45 | 1.63 | 2.25 |
Min tensile load（N） | Grade8.8 | 3220 | 5620 | 9080 | 12900 | 23400 | 37100 | 53900 | 100000 |
Grade10.9 | 4180 | 7300 | 11800 | 16700 | 30500 | 48200 | 70200 | 130000 | |
Grade12.9 | 4910 | 8560 | 13800 | 19600 | 35700 | 56600 | 82400 | 154000 | |
With professional factory best guarantee the quality and lead time.
