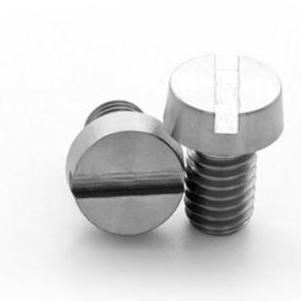

GB/T67 Slotted Pan Head Screws the groove type is a one-line groove, and the groove type is one less process than the commonly used cross groove, and the cost is slightly lower than that of the cross groove.
We have professional factory also with stock for some sizes,soonest delivery guarantee.

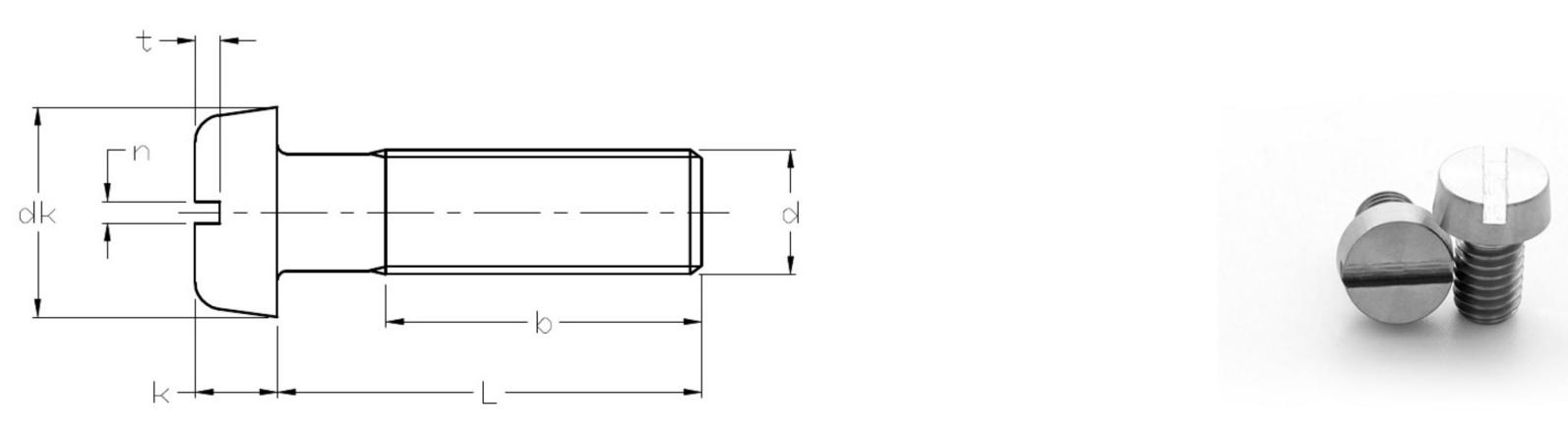

Ours standardGB/T67 Slotted Pan Head Screws drawings and sizes as below in table:
d | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | |
p | pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | max | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | min | 25 | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max | 3.2 | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 |
min | 2.9 | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | |
k | max | 1 | 1.3 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.8 | 6 |
min | 0.86 | 1.16 | 1.36 | 1.66 | 1.96 | 2.26 | 2.86 | 3.3 | 4.5 | 5.7 | |
n | 公称 | 0.4 | 0.5 | 0.6 | 0.8 | 1 | 1.2 | 1.2 | 1.6 | 2 | 2.5 |
max | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.51 | 1.51 | 1.91 | 2.31 | 2.81 | |
min | 0.46 | 0.56 | 0.66 | 0.86 | 1.06 | 1.26 | 1.26 | 1.66 | 2.06 | 2.56 | |
t | min | 0.35 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.9 | 2.4 |
x | max | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.
Welcome mail us info@topqualityalloy.com for inquiry of GB/T67 Titanium Slotted Pan Head Screws,Once we got your details inquiry,will return you immediately.
GB/T67 Slotted Pan Head Screws the groove type is a one-line groove, and the groove type is one less process than the commonly used cross groove, and the cost is slightly lower than that of the cross groove.
We have professional factory also with stock for some sizes,soonest delivery guarantee.
Ours standardGB/T67 Slotted Pan Head Screws drawings and sizes as below in table:
d | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | |
p | pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | max | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | min | 25 | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max | 3.2 | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 |
min | 2.9 | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | |
k | max | 1 | 1.3 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.8 | 6 |
min | 0.86 | 1.16 | 1.36 | 1.66 | 1.96 | 2.26 | 2.86 | 3.3 | 4.5 | 5.7 | |
n | 公称 | 0.4 | 0.5 | 0.6 | 0.8 | 1 | 1.2 | 1.2 | 1.6 | 2 | 2.5 |
max | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.51 | 1.51 | 1.91 | 2.31 | 2.81 | |
min | 0.46 | 0.56 | 0.66 | 0.86 | 1.06 | 1.26 | 1.26 | 1.66 | 2.06 | 2.56 | |
t | min | 0.35 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.9 | 2.4 |
x | max | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.
Welcome mail us info@topqualityalloy.com for inquiry of GB/T67 Titanium Slotted Pan Head Screws,Once we got your details inquiry,will return you immediately.
