M1.6-M64
RuiYang
We are Stainless Steel Hexagon Nuts supplier,Stainless Steel Nuts cnc big sizes supplier,when you need hex nut stainless steel,ss hex nut,stainless hex nuts,stainless steel hex nut,please contact us freely
Common material are ss 304 hex nut,A2 stainless nuts and bolts,A4 nuts,grade could be A2-70,a4-70,a4-80

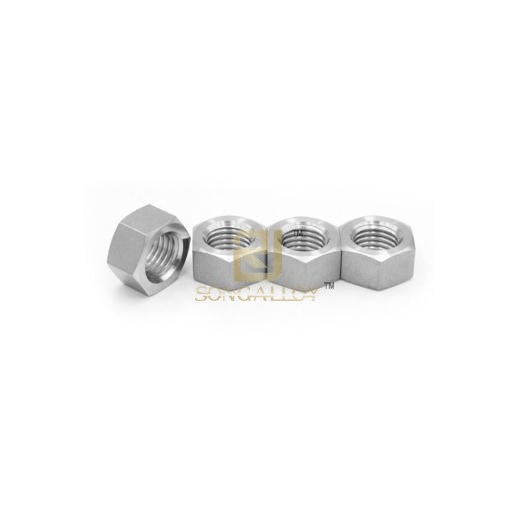

GB/T6170 Stainless Steel Hexagon Nuts-Style1 it is used with bolts and screws to connect and tighten the parts,style 1 hexagon nuts are the most widely used.A nut is a part that is screwed together with a bolt or a screw to tighten it. It is a part that must be used by all production and manufacturing machinery.
GB/T6170 Stainless Steel Hexagon Nuts-Style1 sizes as below:
d | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | |
P(pitch) | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | |
c | max | 0.2 | 0.2 | 0.3 | 0.40 | 0.40 | 0.50 | 0.50 | 0.60 | 0.60 | 0.60 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 |
min | 0.1 | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 015 | 0.15 | 0.15 | 0.2 | 00.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | |
da | max | 1.84 | 2.3 | 2.9 | 3.45 | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 17.3 | 21.6 | 25.9 | 32.4 | 38.9 | 45.4 | 51.8 | 60.5 | 69.1 |
min | 1.60 | 2.0 | 2.5 | 3.00 | 4.0 | 5.00 | 6.00 | 8.00 | 10.0 | 12 | 16.0 | 20.0 | 24.0 | 30.0 | 36.0 | 42 | 48.0 | 56.0 | 64.0 | |
dw min | 2.4 | 3.1 | 4.1 | 4.6 | 5.9 | 6.9 | 8.9 | 11.6 | 14.6 | 16.6 | 22.5 | 27.7 | 33.3 | 42.8 | 51.1 | 60 | 69.5 | 78.7 | 88.2 | |
emin | 3.41 | 4.32 | 5.45 | 5.01 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 26.75 | 32.95 | 39.55 | 50.85 | 60.79 | 71.3 | 82.6 | 93.56 | 104.86 | |
m | max | 1.30 | 1.60 | 2.00 | 2.04 | 3.2 | 4.7 | 5.2 | 6.8 | 8.40 | 10.80 | 14.8 | 18.0 | 21.5 | 25.6 | 31.0 | 34.0 | 38.0 | 45.0 | 51.0 |
min | 1.05 | 1.35 | 1.75 | 2.15 | 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 14.1 | 16.9 | 20.2 | 24.3 | 29.4 | 32.4 | 36.4 | 43.4 | 49.1 | |
Mw min | 0.8 | 1.1 | 1.4 | 1.7 | 2.3 | 3.5 | 3.9 | 5.2 | 6.4 | 8.3 | 11.3 | 13.5 | 16.2 | 19.4 | 23.5 | 25.9 | 29.1 | 34.7 | 39.8 | |
s | max | 3.20 | 4.00 | 5.00 | 5.50 | 7.00 | 8.00 | 10.00 | 13.00 | 16.00 | 18.00 | 21.00 | 30.00 | 36 | 16 | 55.0 | 65.0 | 75.0 | 85.0 | 95.0 |
min | 3.02 | 3.82 | 4.82 | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 23.67 | 29.16 | 35 | 45 | 53.8 | 63.1 | 73.1 | 82.8 | 92.8 | |
One stop service for supply all kinds of stainless steel bolts and stainless steel nuts,full thread hexagon head bolts and half thread bolts,heavy nuts and thin nuts,countersunk screws and related stainless steel fasteners.
Welcome contact us for GB/T6170 Stainless Steel Hexagon Nuts-Style1 also stainless steel hex bolts and nuts,just mail us info@topqualityalloy.com with necessary Material,sizes,pcs information.Meawhile,titanium nuts and bolts also supply here.
