M1.6-M20
RuiYang
810890
GB/T5782 Titanium Hexagon Head Bolts are the most widely used type of bolts, among which grades A and B are used for important occasions where assembly accuracy is required, and where large shocks, vibrations or alternating loads are tolerated.We have professional factory also with stock for some sizes,soonest delivery guarantee.

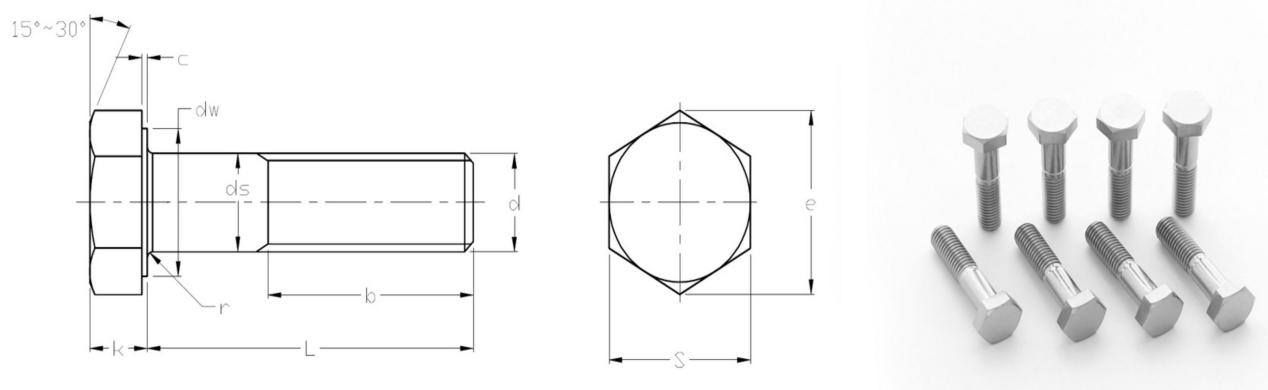

The details of GB/T5782 Titanium Hexagon Head Bolts sizes and drawings as below:
d | M1.6 | M2 | M2.6 | M3 | M3.5 | M 4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | ||
P | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | ||
b | L ≤125 | 9 | 10 | 11 | 12 | 13 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | |
125<L≤200 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | ||
L>200 | 28 | 29 | 30 | 31 | 32 | 33 | 35 | 37 | 41 | 45 | 49 | 53 | 57 | 61 | 65 | ||
c | max | 0.25 | 0.25 | 0.25 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | |
min | 0.1 | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | ||
da | max | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | |
ds | max | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
A | min | 1.46 | 1.86 | 2.36 | 2.86 | 3.32 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | |
B | min | 1.35 | 1.75 | 2.25 | 2.75 | 3.2 | 3.7 | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | |
dw | A | min | 2.27 | 3.07 | 4.07 | 4.57 | 5.07 | 5.88 | 6.88 | 8.88 | 11.63 | 14.63 | 16.63 | 19.64 | 22.49 | 25.34 | 28.19 |
B | min | 2.3 | 2.95 | 3.95 | 4.45 | 4.95 | 5.74 | 6.74 | 8.74 | 11.47 | 14.63 | 16.63 | 19.64 | 22.49 | 25.34 | 28.19 | |
e | A | min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 |
B | min | 3.28 | 4.18 | 5.31 | 5.88 | 6.44 | 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | |
L1 | max | 0.6 | 0.8 | 1 | 1 | 1 | 1.2 | 1.2 | 1.4 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | |
k | DK | 1.1 | 1.4 | 1.7 | 2 | 2.4 | 2.8 | 3.5 | 4 | 5.3 | 6.4 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | |
A | max | 1.225 | 1.525 | 1.825 | 2.125 | 2.525 | 2.925 | 3.65 | 4.15 | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | |
min | 0.975 | 1.275 | 1.575 | 1.875 | 2.275 | 2.675 | 3.35 | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | ||
B | max | 1.3 | 1.6 | 1.9 | 2.2 | 2.6 | 3 | 3.74 | 4.24 | 5.54 | 6.69 | 7.79 | 9.09 | 10.29 | 11.85 | 12.85 | |
min | 0.9 | 1.2 | 1.5 | 1.8 | 2.2 | 2.6 | 3.26 | 3.76 | 5.06 | 6.11 | 7.21 | 8.51 | 9.71 | 11.15 | 12.15 | ||
K1 | A | min | 0.68 | 0.89 | 1.1 | 1.31 | 1.59 | 1.87 | 2.35 | 2.7 | 3.61 | 4.35 | 5.12 | 6.03 | 6.87 | 7.9 | 8.6 |
B | min | 0.63 | 0.8 | 1.05 | 1.26 | 1.54 | 1.82 | 2.28 | 2.63 | 3.54 | 4.28 | 5.05 | 5.96 | 6.8 | 7.81 | 8.51 | |
r | min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | |
s | max | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | |
A | min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | |
B | min | 2.9 | 3.7 | 4.7 | 5.2 | 5.7 | 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | |
Welcome contact us for GB/T5782 Titanium Hexagon Head Bolts inquiry,we could supply you cnc process and cold heading process of your choice,price according to your order quantity and tech dept for your choice.
One stop service for supply all kinds of titanium bolts and nuts,full thread hexagon head bolts and half thread bolts,heavy nuts and thin nuts,countersunk screws and related titanium fasteners,Titanium cnc parts,welcome contact us for GB/T5782 Titanium hexagon head bolts and related ti bolts inquiry just mail us info@topqualityalloy.com with necessary sizes and quantity.
