M6-M20
RuiYang
810890

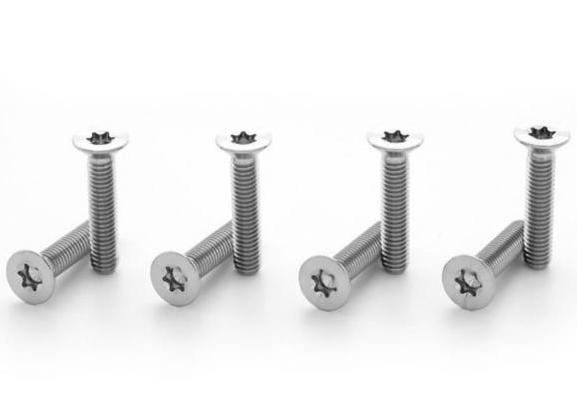

Titanium screws with China GB/T2673 Hexalobular Socket Countersunk Head Screws the screw heads can sink into the mounting surface,keeping the mounting surface flat.Commonly used in machinery,mainly has the advantages of easy fastening,disassembly,not easy to slip angle,etc.It can save a lot of force and can play a good tightening role.

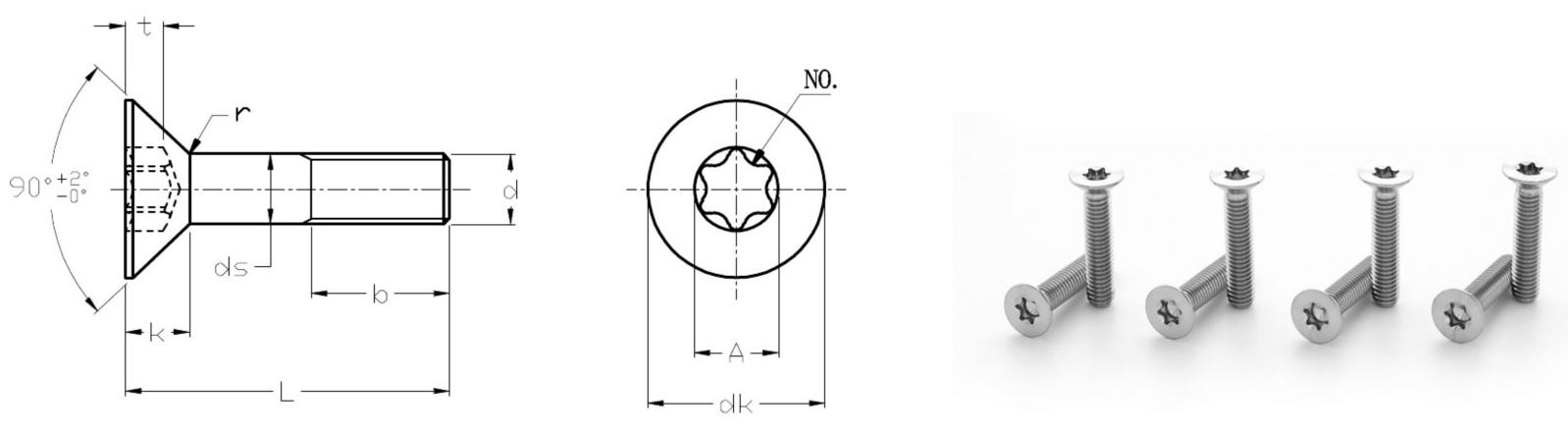

Dimensions of GB/T2673 Hexalobular Socket Countersunk Head Screws as below:
| d | M6 | M8 | M10 | M12 | （M14） | M16 | M20 | |
| P | Pitch | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
| a | max | 2 | 2.5 | 3 | 3.5 | 4 | 4 | 5 |
| b | min | 38 | 38 | 38 | 48 | 48 | 48 | 48 |
| dk | max=DK | 11.3 | 15.8 | 18.3 | 22 | 25.5 | 29 | 36 |
| min | 10.9 | 15.4 | 17.8 | 21.5 | 25 | 28.5 | 35.4 | |
| k | max | 3.3 | 4.65 | 5 | 6 | 7 | 8 | 10 |
| r | max | 1.5 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 |
| x | max | 2.5 | 3.2 | 3.8 | 4.3 | 5 | 5 | 6.3 |
| slot number | 30 | 40 | 50 | 55 | 55 | 60 | 80 | |
| A | refer | 5.6 | 6.75 | 8.95 | 11.35 | 11.35 | 13.45 | 17.75 |
| t | max | 1.8 | 2.5 | 2.7 | 3.5 | 3.7 | 4.1 | 6 |
| min | 1.4 | 2.1 | 2.3 | 3.02 | 3.22 | 3.62 | 5.42 | |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
We are an audited fasteners supplier by SGS and BV,specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.There are our mature entrepreneurial management,professional R&D team,advanced manufacturing technology.
Welcome contact us for titanium GB/T2673 Hexalobular Socket Countersunk Head Screws in titanium screws and titanium alloy fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and orders.
