| Quantity: | |
|---|---|
M2-M10
RuiYang
810890

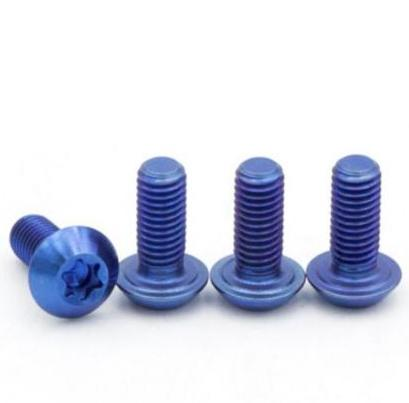

Titanium screws China GB/T2672 Hexalobular Socket Pan Head Screws have a large pressing area,a large contact surface when connecting,higher reliability,so the installation is very convenient.
GB/T2672 Hexalobular Socket Pan Head Screws are mainly used for the fastening connection of aluminum profiles, such as electric vehicle motors of aluminum bases and end covers.

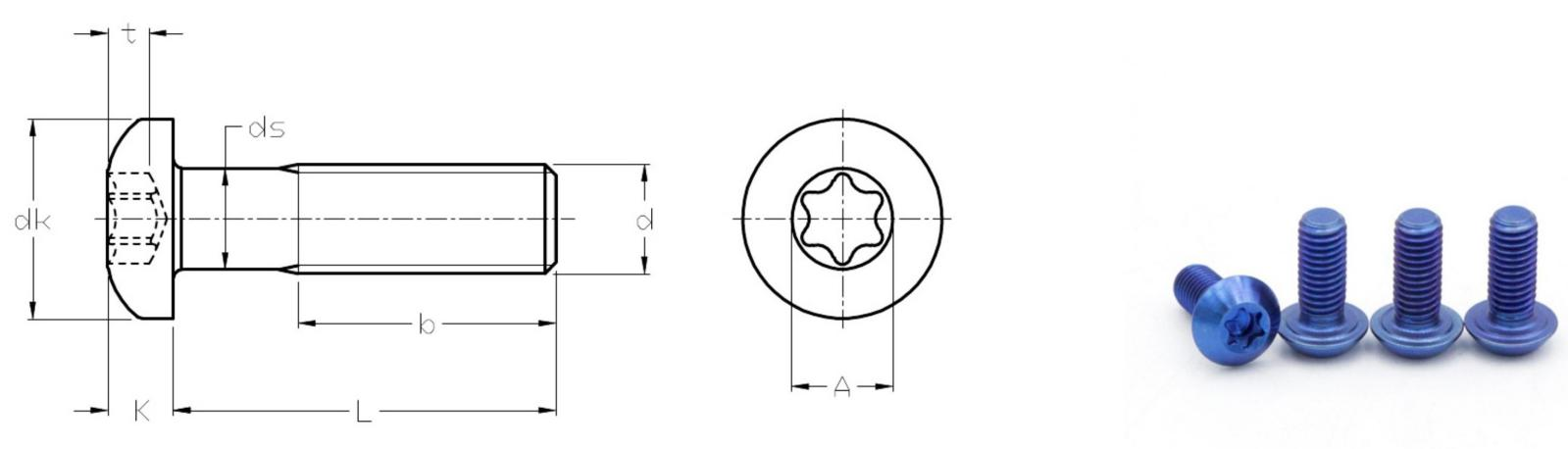

GB/T2672 Hexalobular Socket Pan Head Screws sizes shown as below:
d | M2 | M2.5 | M3 | （M3.5） | M4 | M5 | M6 | M8 | M10 | |
P | Pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | max | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | min | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max=DK | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 |
min | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | |
k | max=DK | 1.6 | 2.1 | 2.4 | 2.6 | 3.1 | 3.7 | 4.6 | 6 | 7.5 |
min | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | |
x | max | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
slot number | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 45 | 50 | |
A | refer | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 |
t | max | 0.77 | 1.04 | 1.27 | 1.33 | 1.66 | 1.91 | 2.42 | 3.18 | 4.02 |
min | 0.63 | 0.91 | 1.01 | 1.07 | 1.27 | 1.52 | 2.02 | 2.79 | 3.62 | |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.We have professional factory also with stock for some sizes,soonest delivery guarantee,our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.
Welcome contact us for titanium GB/T2672 Hexalobular Socket Pan Head Screws in titanium screws and titanium alloy fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
