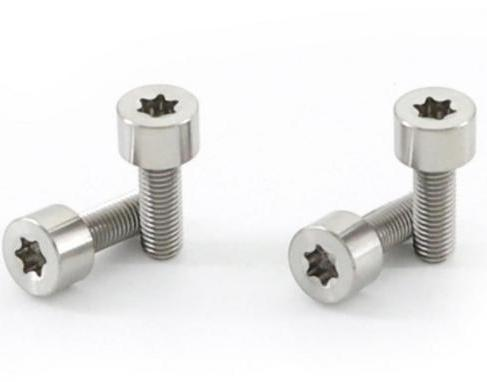

GB/T2671.2 Hexalobular Socket Head Cap Screws in titanium screws is a relatively uncommon type of screw,according to the production process and materials,it is no different from other cross recessed screws, the only difference is that the Phillips socket and the installation tools used are different.
We have professional factory also with stock for some GB/T2671.2 Hexalobular Socket Head Cap Screws sizes,soonest delivery guarantee,our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.

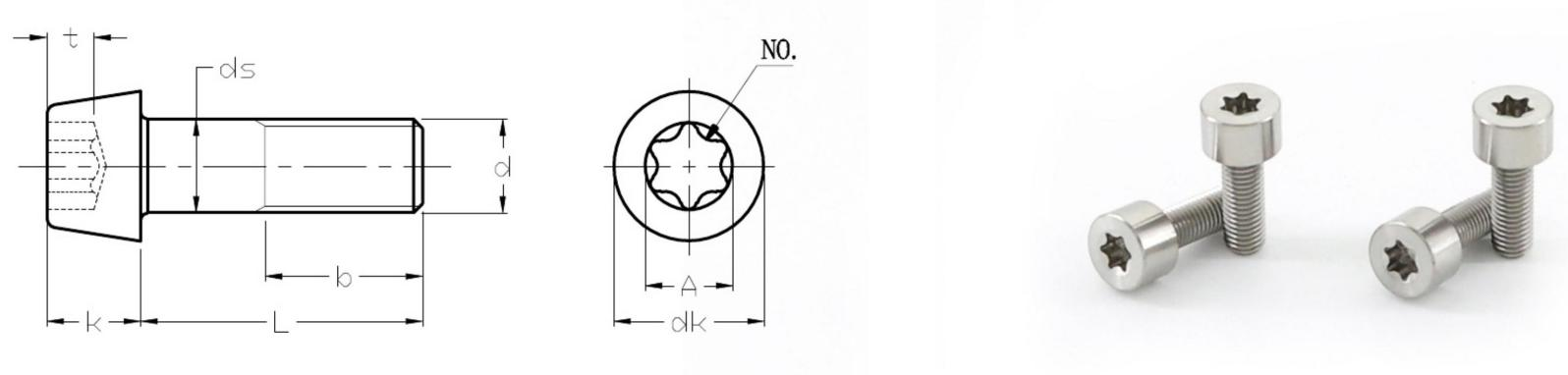

GB/T2671.2 Titanium Hexalobular Socket Head Cap Screws dimensions and drawings details shows as below
d | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | （M18） | M20 | ||
p | Pitch | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | |
b | refer | 16 | 17 | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 48 | 52 | |
dk | max | flat head | 3.8 | 4.5 | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 |
knurled head | 3.98 | 4.68 | 5.68 | 7.22 | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 27.33 | 30.33 | ||
min | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | ||
ds | max | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
min | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | ||
k | max | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
min | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | ||
slot number | T6 | T8 | T10 | T20 | T25 | T30 | T45 | T50 | T55 | T60 | T70 | T80 | T90 | ||
A | refer | 1.75 | 2.4 | 2.8 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 | 11.35 | 13.45 | 15.7 | 17.75 | 20.2 | |
t | max | 0.84 | 1.04 | 1.27 | 1.8 | 2.03 | 2.42 | 3.31 | 4.02 | 5.21 | 5.99 | 7.01 | 8 | 9.2 | |
min | 0.71 | 0.91 | 1.01 | 1.42 | 1.65 | 2.02 | 2.92 | 3.62 | 4.82 | 5.62 | 6.62 | 7.5 | 8.69 | ||
Welcome contact us for titanium GB/T2671.2 Hexalobular Socket Head Cap Screws in titanium screws and titanium alloy fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
