Din 580 eye bolt stainless steel forged lifting eye bolts produce and supply,we are are ss wire rope and wire rope fasteners supplier.

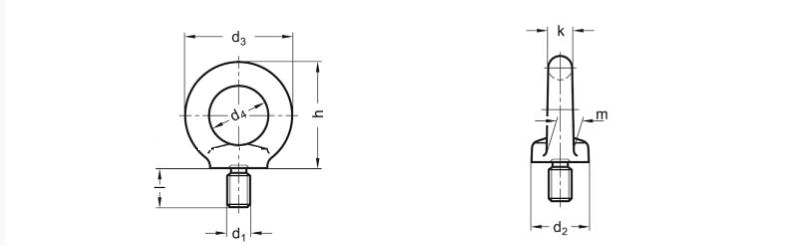

DIN 580 eye bolt dimensions,din 580 eye bolt standard as below we could supply as below:
MEASUREMENTS ACCORDING TO FIGURE(MM) | WLL2 | WLL1 | WEIGHT PER 100(KG.) | ||||||
D1 | D2 | D3 | D4 | H | K | L | T | T | |
M6 | 17 | 28 | 16 | 31 | 6 | 13 | 0.07 | 0.09 | 5 |
M8 | 20 | 36 | 20 | 36 | 8 | 13 | 0.095 | 0.14 | 6 |
M10 | 25 | 45 | 25 | 45 | 10 | 17 | 0.17 | 0.23 | 11 |
M12 | 30 | 54 | 30 | 53 | 12 | 20.5 | 0.24 | 0.34 | 18 |
M14 | 35 | 63 | 35 | 62 | 14 | 27 | 28 | ||
M16 | 35 | 63 | 35 | 62 | 14 | 27 | 0.5 | 0.7 | 28 |
M18 | 40 | 72 | 40 | 71 | 16 | 30 | 45 | ||
M20 | 40 | 72 | 40 | 71 | 16 | 30 | 0.83 | 1.2 | 45 |
M22 | 45 | 81 | 45 | 80.5 | 18 | 35 | 67 | ||
M24 | 50 | 90 | 50 | 90 | 20 | 36 | 1.27 | 0.8 | 87 |
M27 | 50 | 90 | 50 | 90 | 20 | 38 | 88 | ||
M30 | 65 | 108 | 60 | 109 | 24 | 45 | 2.6 | 3.6 | 166 |
M33 | 65 | 108 | 60 | 109 | 24 | 45 | 166 | ||
M36 | 75 | 126 | 70 | 128 | 28 | 54 | 3.7 | 5.1 | 265 |
M39 | 85 | 144 | 80 | 147 | 32 | 63 | 403 | ||
M42 | 85 | 144 | 80 | 147 | 32 | 63 | 5 | 7 | 403 |
M45 | 100 | 166 | 90 | 168 | 38 | 68 | 638 | ||
M48 | 100 | 166 | 90 | 168 | 38 | 68 | 6.1 | 8.6 | 638 |
M52 | 110 | 184 | 100 | 187 | 42 | 78 | 880 | ||
M56 | 110 | 184 | 100 | 187 | 42 | 78 | 8.3 | 11.5 | 880 |
M64 | 120 | 206 | 110 | 208 | 48 | 90 | 11 | 16 | 1240 |
M72 | 150 | 260 | 140 | 260 | 60 | 100 | 15 | 21 | 2330 |
M80 | 170 | 296 | 160 | 298 | 68 | 112 | 20 | 28 | 3420 |
M100 | 190 | 330 | 180 | 330 | 75 | 130 | 27 | 38 | 4910 |
Where to buy DIN580 eye bolts,please inform us freely,we could supply you stainless steel eye bolts and related stainless steel bolts and nuts one stop service,related DIN582 eye nuts we also could supply you.
