M1-M90
RuiYang
810890

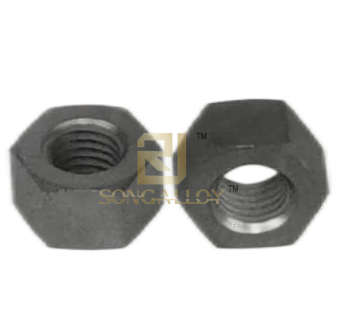

DIN934 Titanium Hex Nuts are one of the titanium full nuts in titanium fasteners.
DIN934 Titanium Hexagon Nuts-Product Grade A And B are parts that are screwed together with bolts or screws for fastening,and are an original that all production machinery must use.Titanium nut Din934 is used in conjunction with bolts and screws to connect and fasten parts. Class A and B nuts are used for machines, equipment or structures with relatively smooth surfaces and high precision requirements.
DIN934 Titanium hex nuts are metric titanium nuts like China GB titanium nuts.

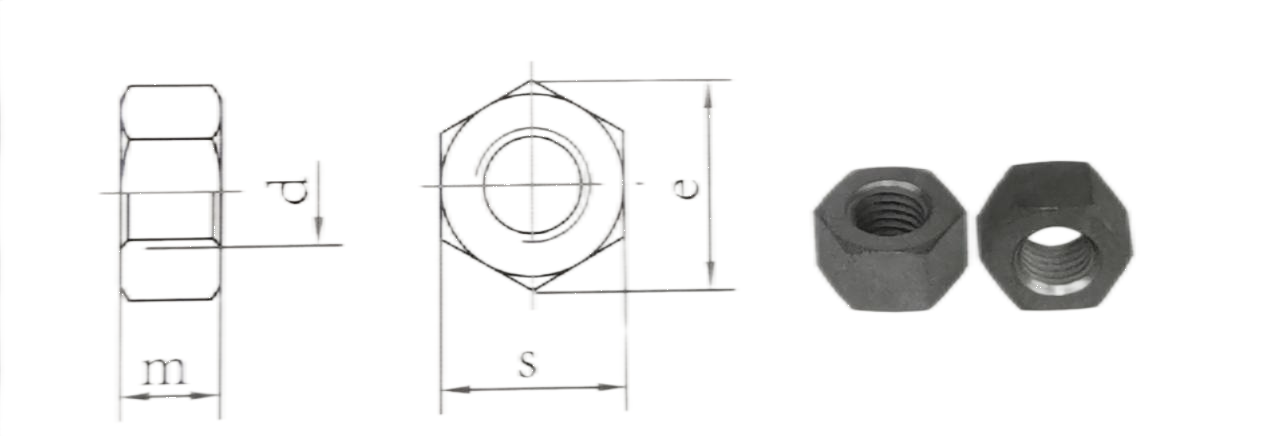

DIN934 Titanium Hex Nuts Dimensions Grade A And B detailed in below table:
d | s | e | m |
M1 | 2.5 | 2.72 | 0.8 |
M1.2 | 3 | 3.29 | 1 |
M1.4 | 3 | 3.29 | 1.2 |
M1.6 | 3.2 | 3.48 | 1.3 |
M1.7 | 3.5 | 3.82 | 1.4 |
M2 | 4 | 4.32 | 1.6 |
M2.3 | 4.5 | 4.95 | 1.8 |
M2.5 | 5 | 5.45 | 2 |
M2.6 | 5 | 5.51 | 2 |
M3 | 5.5 | 6.01 | 2.4 |
M3.5 | 6 | 6.01 | 2.8 |
M4 | 7 | 7.66 | 3.2 |
M5 | 8 | 8.76 | 4 |
M6 | 10 | 11.05 | 5 |
M7 | 11 | 12.12 | 5.5 |
M8 | 13 | 14.38 | 6.5 |
M10 | 17 | 18.9 | 8 |
M12 | 19 | 21.1 | 10 |
M14 | 22 | 24.49 | 11 |
M16 | 24 | 26.75 | 13 |
Titanium nuts DIN934 M18-90
M18 | 27 | 29.56 | 15 |
M20 | 30 | 32.95 | 16 |
M22 | 32 | 35.03 | 18 |
M24 | 36 | 39.55 | 19 |
M27 | 41 | 45.2 | 22 |
M30 | 46 | 50.85 | 24 |
M33 | 50 | 55.37 | 26 |
M36 | 55 | 60.79 | 29 |
M39 | 60 | 66.44 | 31 |
M42 | 65 | 71.3 | 34 |
M45 | 70 | 76.95 | 36 |
M48 | 75 | 82.6 | 38 |
M52 | 80 | 88.25 | 42 |
M56 | 85 | 95.07 | 45 |
M60 | 90 | 100.72 | 48 |
M64 | 95 | 106.37 | 51 |
M68 | 100 | 112.02 | 54 |
M72 | 105 | 117.67 | 58 |
M76 | 110 | 123.32 | 61 |
M80 | 115 | 128.97 | 64 |
M85 | 120 | 133.11 | 68 |
M90 | 130 | 145.77 | 72 |
Welcome contact us for DIN934 Titanium hex nuts and Titanium alloy Hexagon Nuts-Product Grade A And B inquiry,we could supply you cnc process and cold heading process of your choice,price according to your order quantity and tech dept for your choice.One stop service for supply all kinds of titanium bolts and nuts,full thread hexagon head bolts and half thread bolts,heavy nuts and thin nuts,countersunk screws and related titanium fasteners,Titanium cnc parts,please send your inquiry to info@topqualityalloy.com with necessary sizes and quantity.
DIN934 Titanium Hex Nuts are one of the titanium full nuts in titanium fasteners.
DIN934 Titanium Hexagon Nuts-Product Grade A And B are parts that are screwed together with bolts or screws for fastening,and are an original that all production machinery must use.Titanium nut Din934 is used in conjunction with bolts and screws to connect and fasten parts. Class A and B nuts are used for machines, equipment or structures with relatively smooth surfaces and high precision requirements.
DIN934 Titanium hex nuts are metric titanium nuts like China GB titanium nuts.
DIN934 Titanium Hex Nuts Dimensions Grade A And B detailed in below table:
d | s | e | m |
M1 | 2.5 | 2.72 | 0.8 |
M1.2 | 3 | 3.29 | 1 |
M1.4 | 3 | 3.29 | 1.2 |
M1.6 | 3.2 | 3.48 | 1.3 |
M1.7 | 3.5 | 3.82 | 1.4 |
M2 | 4 | 4.32 | 1.6 |
M2.3 | 4.5 | 4.95 | 1.8 |
M2.5 | 5 | 5.45 | 2 |
M2.6 | 5 | 5.51 | 2 |
M3 | 5.5 | 6.01 | 2.4 |
M3.5 | 6 | 6.01 | 2.8 |
M4 | 7 | 7.66 | 3.2 |
M5 | 8 | 8.76 | 4 |
M6 | 10 | 11.05 | 5 |
M7 | 11 | 12.12 | 5.5 |
M8 | 13 | 14.38 | 6.5 |
M10 | 17 | 18.9 | 8 |
M12 | 19 | 21.1 | 10 |
M14 | 22 | 24.49 | 11 |
M16 | 24 | 26.75 | 13 |
Titanium nuts DIN934 M18-90
M18 | 27 | 29.56 | 15 |
M20 | 30 | 32.95 | 16 |
M22 | 32 | 35.03 | 18 |
M24 | 36 | 39.55 | 19 |
M27 | 41 | 45.2 | 22 |
M30 | 46 | 50.85 | 24 |
M33 | 50 | 55.37 | 26 |
M36 | 55 | 60.79 | 29 |
M39 | 60 | 66.44 | 31 |
M42 | 65 | 71.3 | 34 |
M45 | 70 | 76.95 | 36 |
M48 | 75 | 82.6 | 38 |
M52 | 80 | 88.25 | 42 |
M56 | 85 | 95.07 | 45 |
M60 | 90 | 100.72 | 48 |
M64 | 95 | 106.37 | 51 |
M68 | 100 | 112.02 | 54 |
M72 | 105 | 117.67 | 58 |
M76 | 110 | 123.32 | 61 |
M80 | 115 | 128.97 | 64 |
M85 | 120 | 133.11 | 68 |
M90 | 130 | 145.77 | 72 |
Welcome contact us for DIN934 Titanium hex nuts and Titanium alloy Hexagon Nuts-Product Grade A And B inquiry,we could supply you cnc process and cold heading process of your choice,price according to your order quantity and tech dept for your choice.One stop service for supply all kinds of titanium bolts and nuts,full thread hexagon head bolts and half thread bolts,heavy nuts and thin nuts,countersunk screws and related titanium fasteners,Titanium cnc parts,please send your inquiry to info@topqualityalloy.com with necessary sizes and quantity.
