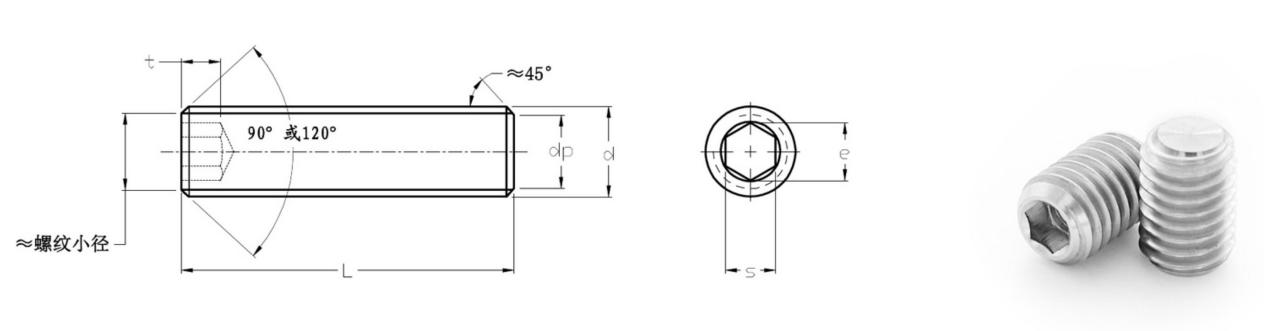

DIN913 Stainless Steel Hexagon Socket Set Screws with Flat Point bear large tightening torque,high connection strength,the head can be embedded in the part sink hole,It is used for joints with compact structure and smooth appearance.
d | M1.4 | M1.6 | M1.8 | M2 | M2.5 | M3 | M4 | M5 | M6 | ||
p | pitch | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | |
dp | max | 0.7 | 0.8 | 0.9 | 1 | 1.5 | 2 | 2.5 | 3.5 | 4 | |
min | 0.45 | 0.55 | 0.65 | 0.75 | 1.25 | 1.75 | 2.25 | 3.2 | 3.7 | ||
e | min | 0.803 | 0.803 | 0.803 | 1.003 | 1.427 | 1.73 | 2.3 | 2.87 | 3.44 | |
s | DK | 0.7 | 0.7 | 0.7 | 0.9 | 1.3 | 1.5 | 2 | 2.5 | 3 | |
max | 0.724 | 0.724 | 0.724 | 0.902 | 1.295 | 1.545 | 2.045 | 2.56 | 3.08 | ||
min | 0.711 | 0.711 | 0.711 | 0.889 | 1.27 | 1.52 | 2.02 | 2.52 | 3.02 | ||
t | min | short screw | 0.6 | 0.7 | 0.8 | 0.8 | 1.2 | 1.2 | 1.5 | 2 | 2 |
long screw | 1.4 | 1.5 | 1.6 | 1.7 | 2 | 2 | 2.5 | 3 | 3.5 | ||
d | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | ||
p | pitch | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | |
dp | max | 5.5 | 7 | 8.5 | 10 | 12 | 13 | 15 | 17 | 18 | |
min | 5.2 | 6.64 | 8.14 | 9.64 | 11.57 | 12.57 | 14.57 | 16.57 | 17.57 | ||
e | min | 4.58 | 5.72 | 6.86 | 6.86 | 9.15 | 11.43 | 11.43 | 13.72 | 13.72 | |
s | DK | 4 | 5 | 6 | 6 | 8 | 10 | 10 | 12 | 12 | |
max | 4.095 | 5.095 | 6.095 | 6.095 | 8.115 | 10.115 | 10.115 | 12.142 | 12.142 | ||
min | 4.02 | 5.02 | 6.02 | 6.02 | 8.025 | 10.025 | 10.025 | 12.032 | 12.032 | ||
t | min | short screw | 3 | 4 | 4.8 | 5.6 | 6.4 | 7.2 | 8 | 9 | 10 |
long screw | 5 | 6 | 8 | 9 | 10 | 11 | 12 | 13.5 | 15 | ||
Welcome contact us for DIN 913Stainless Steel Hexagon Socket Set Screws with Flat Point in stainless steel screws and stainless steel fasteners,please mail us info@topqualityalloy.com with necessary sizes,steel grade and quantity for inquiry and order.Related titanium screws also supply
