M2-M24
Ruiyang
731819

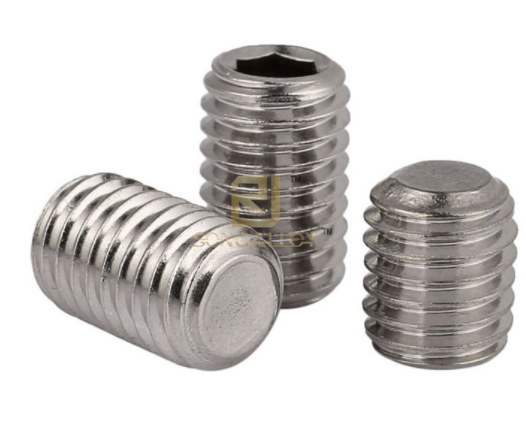

DIN913 hexagon socket set screws with flat point with allen key drive set screws M2-M24 customed in one stop service
DIN913 hex socket set screw material: Stainless steel,A2,A4,304,316,2205 Duplex stainless,254SMO,904L etc
Related material also nickel,titanim and titanium alloy

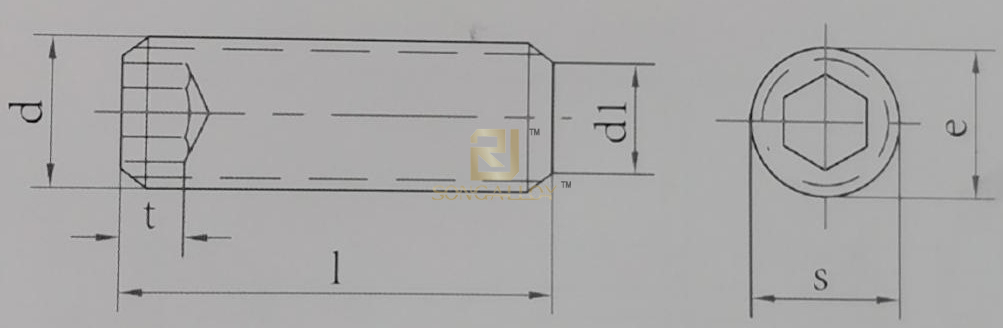

d | d1 max | t min | e | s |
M2 | 1 | 0.8 | 1.003 | 0.9 |
M2.5 | 1.5 | 1.2 | 1.003 | 1.3 |
M3 | 2 | 1.2 | 1.427 | 1.5 |
M4 | 2.5 | 1.5 | 1.73 | 2 |
M5 | 3.5 | 2 | 2.3 | 2.5 |
M6 | 4 | 2 | 2.87 | 3 |
M8 | 5.5 | 3 | 3.44 | 4 |
M10 | 7 | 4 | 4.58 | 5 |
M12 | 8.5 | 4.8 | 6.86 | 6 |
M14 | 10 | 5.6 | 6.86 | 6 |
M16 | 12 | 6.4 | 9.15 | 8 |
M20 | 15 | 8 | 11.43 | 10 |
M24. | 18 | 10 | 13.72 | 12 |

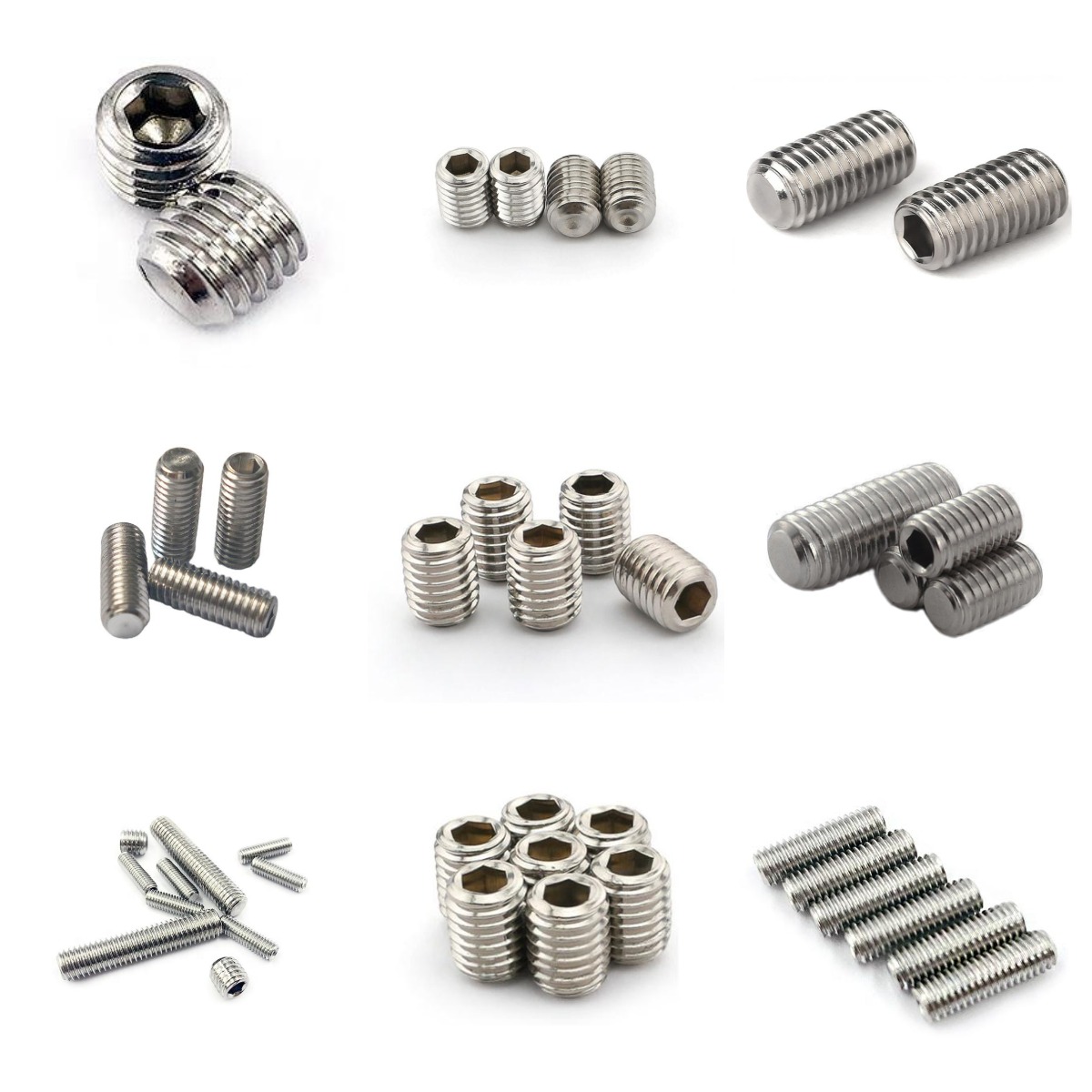

DIN913 Hexagon Socket Set Screws with Flat Point products shows as below:
Related DIN914 Hexagon socket set screws with cone point also could supply
DIN913 Socket set screws application:Automotive Industry,Rail Transit,Communications Equipment,Arine Engineering,Aerospace,Machinery Industry,Electronic Manufacturing,Petrochemical Industry,Photovoltaic and Solar Energy Industries and Fields.
Where to buy DIN913 hexagon socket set screws with flat point,please contact us for socket set screw inquiry with one stop service,not only for stainless steel screws,also titanium screws for your choice,just mail us info@topqualityalloy.com for inquiry and order.
