2.7-39
RuiYang
810890
DIN9021 Titanium Plain Washers-Large Series-Product Grade A customed
Titanium DIN9021 Plain Washers-Large Series-Product Grade A is used to overcome the unevenness of the workpiece support surface and increase the stress area of the support surface,reduce friction, prevent leakage, isolate, prevent loosening or disperse pressure.
We are an audited Pure Titanium washers and titanium bolts nuts supplier supply our clients right goods with best price.

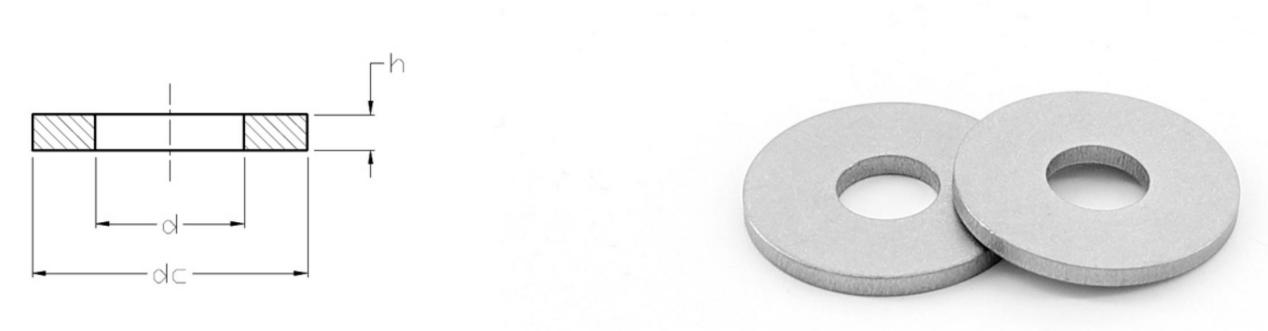

Titanium plain washers DIN9021 Plain Washers-Large Series-Product Grade A as below:
d | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 | |
for thread diameter | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 10 | |
d | min=DK | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 7.4 | 8.4 | 10.5 |
max | 2.84 | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 7.62 | 8.62 | 10.77 | |
dc | max=DK | 8 | 9 | 11 | 12 | 15 | 18 | 22 | 24 | 30 |
min | 7.64 | 8.64 | 10.57 | 11.57 | 14.57 | 17.57 | 21.48 | 23.48 | 29.48 | |
h | DK | 0.8 | 0.8 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2 | 2.5 |
max | 0.9 | 0.9 | 0.9 | 1.1 | 1.4 | 1.8 | 2.2 | 2.2 | 2.7 | |
min | 0.7 | 0.7 | 0.7 | 0.9 | 1 | 1.4 | 1.8 | 1.8 | 2.3 | |
Din9021 dimensions 13-39mm metric titanium washers sizes as below table
d | 13 | 15 | 17 | 20 | 22 | 26 | 33 | 39 | |
for thread diameter | 12 | 14 | 16 | 18 | 20 | 24 | 30 | 36 | |
d | min=DK | 13 | 15 | 17 | 20 | 22 | 26 | 33 | 39 |
max | 13.27 | 15.27 | 17.27 | 20.52 | 22.52 | 26.64 | 34 | 40 | |
dc | max=DK | 37 | 44 | 50 | 56 | 60 | 72 | 92 | 110 |
min | 36.38 | 43.38 | 49.38 | 54.1 | 58.1 | 70.1 | 89.8 | 107.8 | |
h | DK | 3 | 3 | 3 | 4 | 4 | 5 | 6 | 8 |
max | 3.3 | 3.3 | 3.3 | 4.6 | 4.6 | 6 | 7 | 9.2 | |
min | 2.7 | 2.7 | 2.7 | 3.4 | 3.4 | 4 | 5 | 6.8 | |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Welcome mail us info@topqualityalloy.com Buy DIN9021 Titanium Plain Washers-Large Series-Product Grade A and related titanium fasteners.
