M3-M10
RuiYang
810890
DIN85 Titanium Slotted Pan Head Screws supply and customed.DIN85 similar DIN84 screws,Gb67 screws,The groove type of DIN85 Slotted Pan Head Screws is a one-line groove.This groove type requires one less milling process than the commonly used cross groove,and the cost is slightly lower than that of the cross groove.
We produce GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.There are our mature entrepreneurial management,professional R&D team,advanced manufacturing technology.

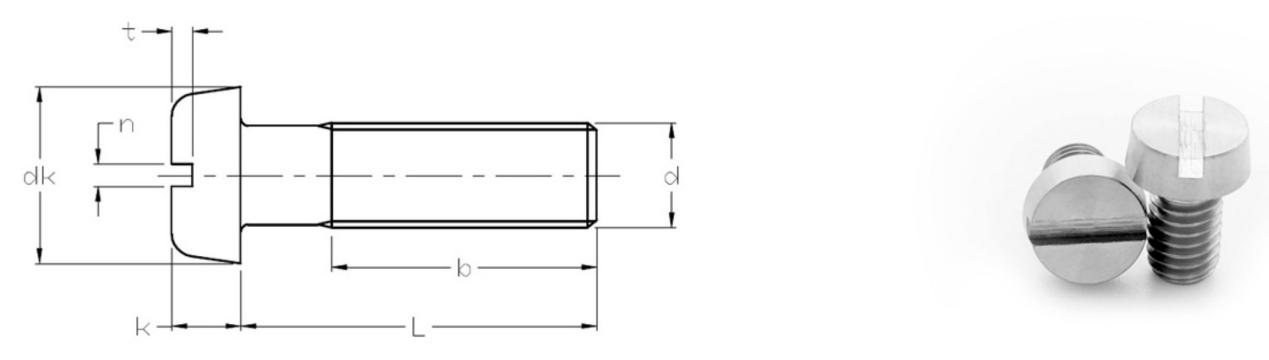

The drawings and details of DIN85 Titanium Slotted Pan Head Screws sizes as below:
thread size d1 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | |
p | Pitch | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
b | min | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max=DK | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
min | 5.7 | 6.64 | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 | |
k | max=DK | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.8 | 6 |
min | 1.66 | 1.96 | 2.26 | 2.86 | 3.3 | 4.5 | 5.7 | |
n | DK | 0.8 | 1 | 1.2 | 1.2 | 1.6 | 2.06 | 2.56 |
min | 0.86 | 1.06 | 1.26 | 1.26 | 1.66 | 2.06 | 2.56 | |
max | 1 | 1.2 | 1.51 | 1.51 | 1.91 | 2.31 | 2.81 | |
t | min | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.9 | 2.4 |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.We have professional factory also with stock for some sizes,soonest delivery guarantee.
Welcome mail us info@topqualityalloy.com for inquiry of DIN85 Titanium Slotted Pan Head Screws,Once we got your details inquiry,will return you immediately.
DIN85 Titanium Slotted Pan Head Screws supply and customed.DIN85 similar DIN84 screws,Gb67 screws,The groove type of DIN85 Slotted Pan Head Screws is a one-line groove.This groove type requires one less milling process than the commonly used cross groove,and the cost is slightly lower than that of the cross groove.
We produce GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.There are our mature entrepreneurial management,professional R&D team,advanced manufacturing technology.
The drawings and details of DIN85 Titanium Slotted Pan Head Screws sizes as below:
thread size d1 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | |
p | Pitch | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
b | min | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max=DK | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
min | 5.7 | 6.64 | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 | |
k | max=DK | 1.8 | 2.1 | 2.4 | 3 | 3.6 | 4.8 | 6 |
min | 1.66 | 1.96 | 2.26 | 2.86 | 3.3 | 4.5 | 5.7 | |
n | DK | 0.8 | 1 | 1.2 | 1.2 | 1.6 | 2.06 | 2.56 |
min | 0.86 | 1.06 | 1.26 | 1.26 | 1.66 | 2.06 | 2.56 | |
max | 1 | 1.2 | 1.51 | 1.51 | 1.91 | 2.31 | 2.81 | |
t | min | 0.7 | 0.8 | 1 | 1.2 | 1.4 | 1.9 | 2.4 |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.We have professional factory also with stock for some sizes,soonest delivery guarantee.
Welcome mail us info@topqualityalloy.com for inquiry of DIN85 Titanium Slotted Pan Head Screws,Once we got your details inquiry,will return you immediately.
