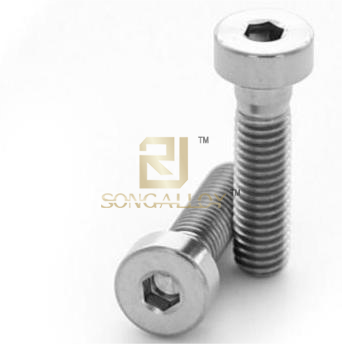

DIN7984 Stainless Steel Hexagon Socket Thin Head Cap Screws is one of the stainless allen key bolts,they mainly used in situations where the screw head is not allowed to be exposed or the outer hexagon screws are difficult to install and disassemble.

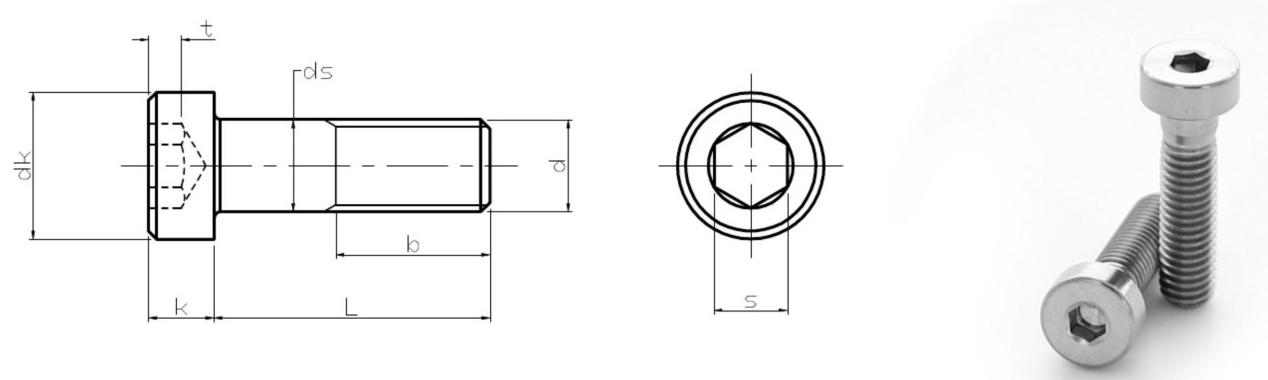

The details and drawing of DIN7984Stainless Steel Hexagon Socket Thin Head Cap Screws as below:
d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | |
P | pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
b | L≤125 | 12 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 |
125＜L≤200 | / | / | / | / | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | |
L＞200 | / | / | / | / | / | / | / | / | 57 | 61 | 65 | 69 | 73 | |
dk | max | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | 33 | 36 |
min | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | |
ds | max=DK | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | |
k | max=DK | 2 | 2.8 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 |
min | 1.86 | 2.66 | 3.32 | 3.82 | 4.82 | 5.82 | 6.78 | 7.78 | 8.78 | 9.78 | 10.73 | 11.73 | 12.73 | |
s | DK | 2 | 2.5 | 3 | 4 | 5 | 7 | 8 | 10 | 12 | 12 | 14 | 14 | 17 |
min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 7.025 | 8.025 | 10.025 | 12.0322 | 12.032 | 14.032 | 14.032 | 17.05 | |
max | 2.1 | 2.6 | 3.1 | 4.12 | 5.14 | 7.175 | 8.175 | 10.175 | 12.212 | 12.212 | 14.212 | 14.212 | 17.23 | |
t | DK | 1.5 | 2.3 | 2.7 | 3 | 3.8 | 4.5 | 5 | 5.3 | 5.5 | 6.5 | 7.5 | 8 | 8 |
min | 1.38 | 2.18 | 2.58 | 2.88 | 3.65 | 4.35 | 4.85 | 5.15 | 5.35 | 6.32 | 7.32 | 7.82 | 7.82 | |
max | 1.62 | 2.42 | 2.82 | 3.12 | 3.95 | 4.65 | 5.15 | 5.45 | 5.65 | 6.68 | 7.68 | 8.18 | 8.18 | |
Our advantages of DIN7991 SS Screws:
With professional factory,quality guarantee,PMI test offer before carrying
Soonest delivery with seaworthy package suit for different ways carrying
One stop service in supply fasteners since 2007
Welcome contact us for DIN7984 Stainless Steel Hexagon Socket Thin Head Cap Screws inquiry,Just mail us info@topqualityalloy.com with detailed material,sizes,quantity for our cooperation
