M5-M20
RuiYang
810890

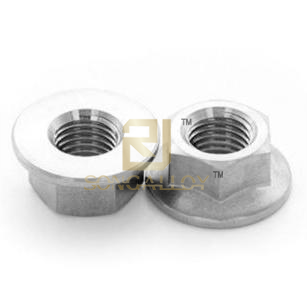

We are an audited DIN6923 Titanium Hexagon Flange Nuts producer and supplier,could supply Pure Titanium bolts and nuts,revivets and titanium alloy bolts and nuts quality guarantee by our mature entrepreneurial management,professional R&D team,advanced manufacturing technology,We do hope to supply our clients right goods with best price.
DIN6923 Hexagon Flange Nuts has good sealing and corrosion resistance.Flanges nuts DIN6923 Mainly includes a nut body,a flange surface is fixed at one end of the nut body,and a cap is fixed at the other end of the nut body; since the cap is set on the nut body, it has the Better sealing can effectively prevent rain, moisture, dust and other harmful substances from immersing in the nut body, prevent the nut body from rusting, and greatly extend the service life of the hexagonal flange nut.
DIN6923 Titanium Hexagon Flange Nuts sizes and tech datas details as below we supply:
d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||
p | Pitch | coarse teeth | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
thin teeth1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||
thin teeth2 | / | / | / | （1.0） | （1.25） | / | / | / | ||
c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | |
da | min | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
max | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | ||
dc | max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 | |
dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |
e | min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | |
m | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
min | 4.7 | 5.7 | 7.6 | 9.6 | 11.6 | 13.3 | 15.3 | 18.9 | ||
mw | min | 2.2 | 3.1 | 4.5 | 5.5 | 6.7 | 7.8 | 9 | 11.1 | |
s | Nominalsize=max | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 | |
min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.67 | ||
r | max | 0.3 | 0.36 | 0.48 | 0.6 | 0.72 | 0.88 | 0.96 | 1.2 | |
Welcome contact us for inquiry of Titanium DIN6923 Titanium Hexagon Flange Nuts and related flanges nuts and bolts in titanium fasteners,also stainless steel flanges nuts just mail us info@topqualityalloy.com with necessary sizes and quantity.
