DIN6921 Titanium Hexagon Flange Bolts customed in metric titanium flanges bolts.
Titanium bolts DIN6921 Hexagon Flange Bolts have the characteristics of accurate decoration and strong endurance,and are widely used.They are widely used in highway and railway bridges, including industrial and civil buildings,cranes,excavators and other heavy machinery.

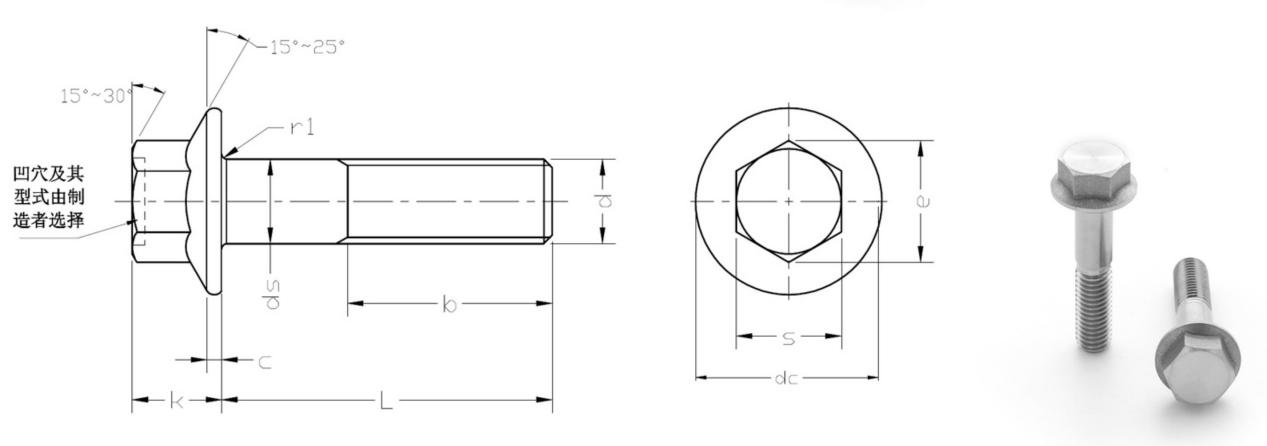

DIN6921 Titanium Hexagon Flange Bolts sizes and drawings of Titanium Hex Flange Bolts details as below:
d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | ||
p | Pitch | Coarse teeth | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
fine teeth1 | / | / | 1 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||
fine teeth2 | / | / | / | 1 | 1.25 | / | / | / | ||
b | L≤125 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | 46 | |
125＜L≤200 | / | / | 28 | 32 | 36 | 40 | 44 | 52 | ||
L＞200 | / | / | / | / | / | / | 57 | 65 | ||
c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | |
da | A | max | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 22.4 |
B | max | 6.2 | 7.4 | 10 | 12.6 | 15.2 | 17.7 | 20.7 | 25.7 | |
dc | max | 11.8 | 14.2 | 18 | 22.3 | 26.6 | 30.5 | 35 | 43 | |
ds | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | ||
du | max | 5.5 | 6.6 | 9 | 11 | 13.5 | 15.5 | 17.5 | 22 | |
dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |
e | min | 8.71 | 10.95 | 14.26 | 16.5 | 17.62 | 19.86 | 23.15 | 29.87 | |
f | max | 1.4 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | |
k | max | 5.4 | 6.6 | 8.1 | 9.2 | 11.5 | 12.8 | 14.4 | 17.1 | |
K1 | min | 2 | 2.5 | 3.2 | 3.6 | 4.6 | 5.1 | 5.8 | 6.8 | |
r1 | min | 0.25 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | |
r2 | max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 | |
r3 | min | 0.1 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | |
r4 | ≈ | 3 | 3.4 | 4.3 | 4.3 | 6.4 | 6.4 | 6.4 | 8.5 | |
s | max=DK | 8 | 10 | 13 | 15 | 16 | 18 | 21 | 27 | |
min | 7.78 | 9.78 | 12.73 | 14.73 | 15.73 | 17.73 | 20.67 | 26.67 | ||
We are an audited supplier by SGS,BV,produce GB,DIN,ASME/ANSI,ISO,UNI,JIS,and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.With professional factory best guarantee the quality and lead time,just free to buy from us.
