M4-M16
RuiYang
DIN6912 Stainless Steel Hexagon Socket Thin Head Cap Screws with Pilot Recess when the nail head penetrates into the machine,its connection strength is very large,so it is necessary to use the corresponding Allen wrench to assemble and disassemble the screw during use. It is generally used in various machine tools and its accessories.Titanium screws DIN6921 also one of the titanium allen bolts and titanium allen screws.

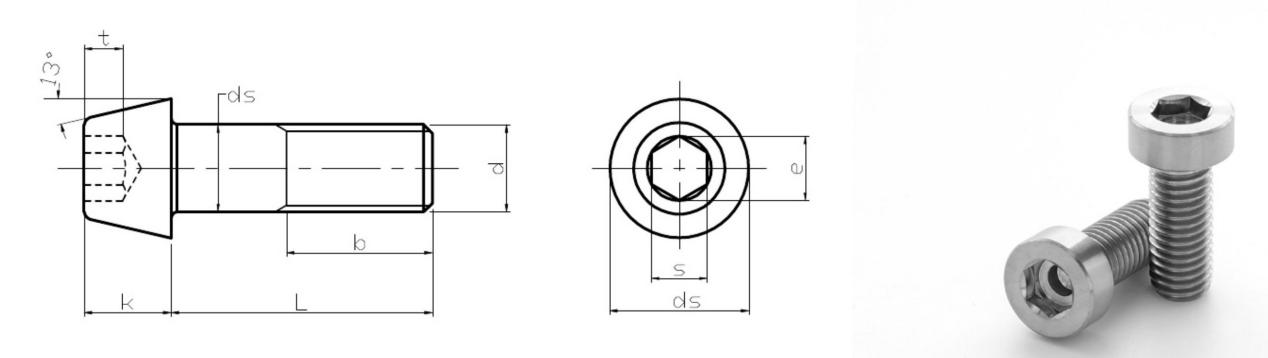

DIN6912 Stainless Steel Hexagon Socket Thin Head Cap Screws with Pilot Recess tech datas as below:
d | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | |
p | pitch | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 |
b | L≤125 | 14 | 16 | 18 | 22 | 26 | 30 | 34 | 38 |
125<L≤200 | / | / | / | / | 32 | 36 | 40 | 44 | |
L>200 | / | / | / | / | / | / | / | 57 | |
dk | max=DK | 7 | 8.5 | 10 | 13 | 16 | 18 | 21 | 24 |
min | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | |
d1 | min=DK | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 |
max | 2.06 | 2.56 | 3.06 | 4.075 | 5.075 | 6.075 | 7.09 | 8.09 | |
k | max=DK | 2.8 | 3.5 | 4 | 5 | 6.5 | 7.5 | 8.5 | 10 |
min | 2.66 | 3.32 | 3.82 | 4.82 | 6.28 | 7.28 | 8.28 | 9.78 | |
s | DK | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 |
min | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 | 14.032 | |
max | 3.1 | 4.12 | 5.14 | 6.14 | 8.175 | 10.175 | 12.212 | 14.212 | |
t | DK | 1.6 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5.5 |
min | 1.48 | 1.88 | 2.38 | 2.88 | 3.35 | 3.85 | 4.35 | 5.35 | |
max | 1.72 | 2.12 | 2.62 | 3.12 | 3.65 | 4.15 | 4.65 | 5.65 | |
t1 | min | 3.3 | 4 | 5 | 6.5 | 7.5 | 9 | 10 | 11.5 |
max | 3.6 | 4.3 | 5.3 | 6.86 | 7.86 | 9.36 | 10.36 | 11.93 |
Welcome contact us for DIN6912 stainless steel Hexagon Socket Thin Head Cap Screws with Pilot Recess in stainless steel screws and stainless steel fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
