1-8mm
RuiYang
810890

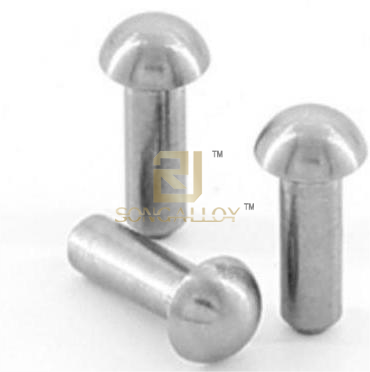

DIN660 Round Head Titanium Rivets mainly used for riveting occasions with large lateral load,the most widely used.
Our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.We are an audited Pure Titanium revivets and titanium bolts nuts supplier with mature entrepreneurial management,professional R&D team,advanced manufacturing technology,and hope to supply our clients right goods with best price.

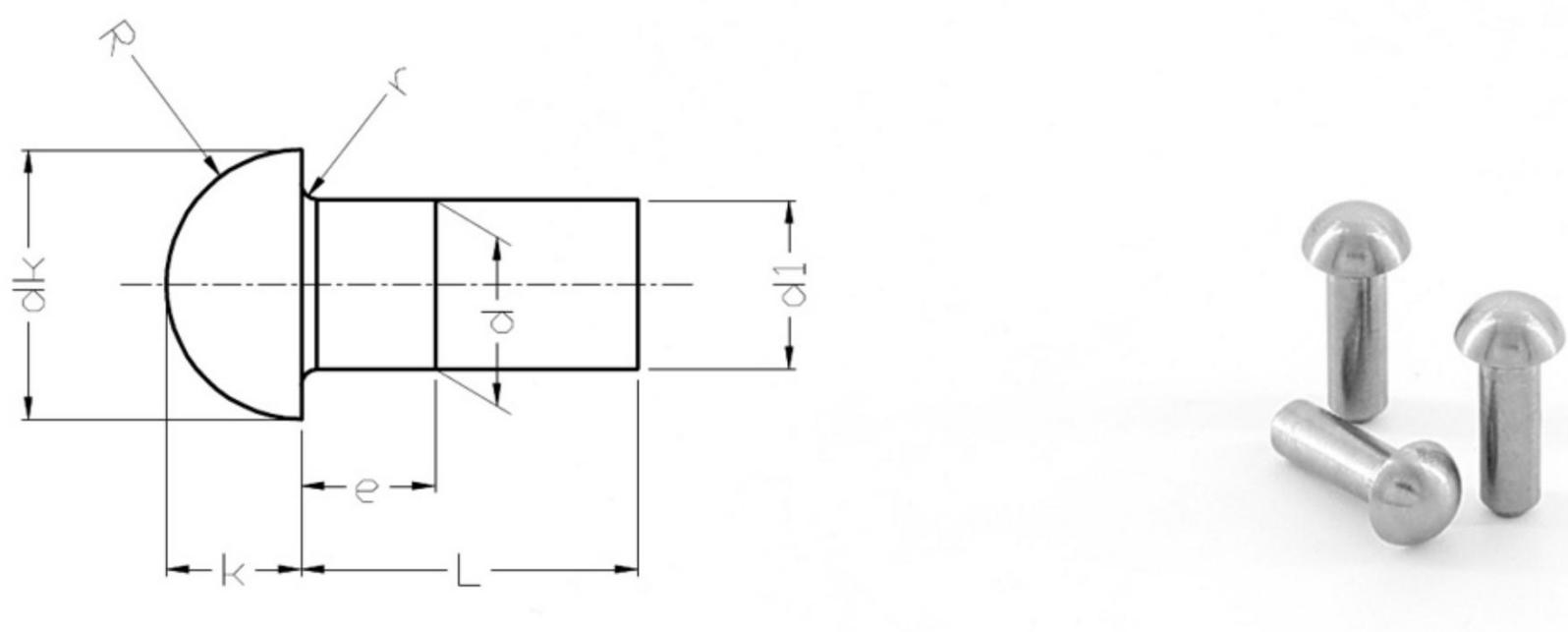

We supply DIN660 Round Head Titanium Rivets details as below:
d | d | dk | dk | k | r | |||||
max | min | max | d1 | min | e | DK | max | min | max | |
min | max | |||||||||
1 | 1.05 | 0.95 | 1.8 | 0.93 | 1.55 | 0.5 | 0.6 | 0.725 | 0.475 | 0.2 |
1.2 | 1.25 | 1.15 | 2.1 | 1.13 | 1.85 | 0.6 | 0.7 | 0.825 | 0.575 | 0.2 |
(1.4) | 1.45 | 1.35 | 2.4 | 1.33 | 2.15 | 0.7 | 0.8 | 0.925 | 0.675 | 0.2 |
1.6 | 1.65 | 1.55 | 2.8 | 1.52 | 2.55 | 0.8 | 1 | 1.125 | 0.875 | 0.2 |
2 | 2.1 | 1.9 | 3.5 | 1.87 | 3.2 | 1 | 1.2 | 1.325 | 1.075 | 0.2 |
2.5 | 2.6 | 2.4 | 4.4 | 2.37 | 4.1 | 1.25 | 1.5 | 1.625 | 1.375 | 0.2 |
3 | 3.1 | 2.9 | 5.2 | 2.87 | 4.9 | 1.5 | 1.8 | 1.925 | 1.675 | 0.2 |
(3.5) | 3.6 | 3.4 | 6.2 | 3.37 | 5.62 | 1.75 | 2.1 | 2.225 | 1.975 | 0.3 |
4 | 4.1 | 3.9 | 7 | 3.87 | 6.42 | 2 | 2.4 | 2.525 | 2.275 | 0.3 |
5 | 5.15 | 4.85 | 8.8 | 4.82 | 8.22 | 2.5 | 3 | 3.125 | 2.875 | 0.4 |
6 | 6.15 | 5.85 | 10.5 | 5.82 | 9.8 | 3 | 3.6 | 3.75 | 3.45 | 0.4 |
(7) | 7.15 | 6.85 | 12.2 | 6.82 | 11.5 | 3.5 | 4.2 | 4.35 | 4.05 | 0.4 |
8 | 8.15 | 7.85 | 14 | 7.76 | 13.3 | 4 | 4.8 | 4.95 | 4.65 | 0.4 |
Where to buy DIN660 Round Head Titanium Rivets?Where to buy titanium alloy rivets DIN660?just mail us info@topqualityalloy.com for inquiry and order.We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium bars,titanium pipe and titanium flange,titanium elbow and ti pipe fittings,Ti wire rope,Ti Shackles and stainless steel rivets,stainless steel bolts and nuts,stainless cnc parts.
DIN660 Round Head Titanium Rivets mainly used for riveting occasions with large lateral load,the most widely used.
Our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.We are an audited Pure Titanium revivets and titanium bolts nuts supplier with mature entrepreneurial management,professional R&D team,advanced manufacturing technology,and hope to supply our clients right goods with best price.
We supply DIN660 Round Head Titanium Rivets details as below:
d | d | dk | dk | k | r | |||||
max | min | max | d1 | min | e | DK | max | min | max | |
min | max | |||||||||
1 | 1.05 | 0.95 | 1.8 | 0.93 | 1.55 | 0.5 | 0.6 | 0.725 | 0.475 | 0.2 |
1.2 | 1.25 | 1.15 | 2.1 | 1.13 | 1.85 | 0.6 | 0.7 | 0.825 | 0.575 | 0.2 |
(1.4) | 1.45 | 1.35 | 2.4 | 1.33 | 2.15 | 0.7 | 0.8 | 0.925 | 0.675 | 0.2 |
1.6 | 1.65 | 1.55 | 2.8 | 1.52 | 2.55 | 0.8 | 1 | 1.125 | 0.875 | 0.2 |
2 | 2.1 | 1.9 | 3.5 | 1.87 | 3.2 | 1 | 1.2 | 1.325 | 1.075 | 0.2 |
2.5 | 2.6 | 2.4 | 4.4 | 2.37 | 4.1 | 1.25 | 1.5 | 1.625 | 1.375 | 0.2 |
3 | 3.1 | 2.9 | 5.2 | 2.87 | 4.9 | 1.5 | 1.8 | 1.925 | 1.675 | 0.2 |
(3.5) | 3.6 | 3.4 | 6.2 | 3.37 | 5.62 | 1.75 | 2.1 | 2.225 | 1.975 | 0.3 |
4 | 4.1 | 3.9 | 7 | 3.87 | 6.42 | 2 | 2.4 | 2.525 | 2.275 | 0.3 |
5 | 5.15 | 4.85 | 8.8 | 4.82 | 8.22 | 2.5 | 3 | 3.125 | 2.875 | 0.4 |
6 | 6.15 | 5.85 | 10.5 | 5.82 | 9.8 | 3 | 3.6 | 3.75 | 3.45 | 0.4 |
(7) | 7.15 | 6.85 | 12.2 | 6.82 | 11.5 | 3.5 | 4.2 | 4.35 | 4.05 | 0.4 |
8 | 8.15 | 7.85 | 14 | 7.76 | 13.3 | 4 | 4.8 | 4.95 | 4.65 | 0.4 |
Where to buy DIN660 Round Head Titanium Rivets?Where to buy titanium alloy rivets DIN660?just mail us info@topqualityalloy.com for inquiry and order.We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium bars,titanium pipe and titanium flange,titanium elbow and ti pipe fittings,Ti wire rope,Ti Shackles and stainless steel rivets,stainless steel bolts and nuts,stainless cnc parts.
