DIN3570 titanium u bolt in Ti Bolts-Type U are widely used mainly used in the fields of building installation, mechanical parts connection,vehicles and ships,bridges,tunnels,railways and others.
We have professional factory,we are an audited supplier in supply kinds of titanium fasteners including the Pure Titanium and titanium alloy bolts and nuts,Ti screws and cnc parts and related titanium products.One stop service for supply all kinds of titanium bolts and nuts,pure titanium screws,titanium products and stainless steel screws also.

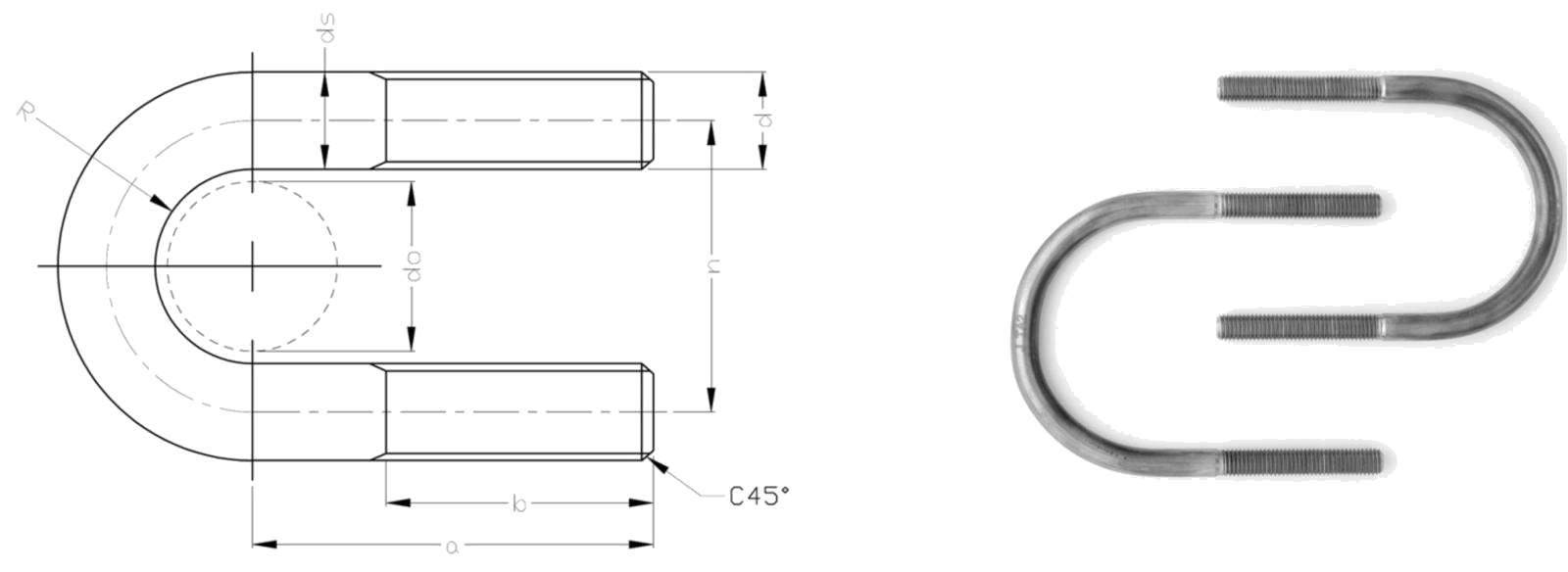

The dimension of DIN3570 Titanium Bolts-Type U as below:
Specifications | d | a | R | b | n | L0 | c |
14 | M6 | 33 | 8 | 22 | 22 | 98 | 1 |
18 | M6 | 35 | 10 | 22 | 26 | 108 | 1 |
22 | M10 | 42 | 12 | 28 | 34 | 135 | 1.5 |
25 | M10 | 44 | 14 | 28 | 38 | 143 | 1.5 |
33 | M10 | 48 | 18 | 28 | 46 | 160 | 1.5 |
38 | M12 | 55 | 20 | 32 | 52 | 192 | 2 |
42 | M12 | 57 | 22 | 32 | 56 | 202 | 2 |
45 | M12 | 59 | 24 | 32 | 60 | 210 | 2 |
48 | M12 | 60 | 25 | 32 | 62 | 220 | 2 |
51 | M12 | 62 | 27 | 32 | 66 | 225 | 2 |
57 | M12 | 66 | 31 | 32 | 74 | 240 | 2 |
60 | M12 | 67 | 32 | 32 | 76 | 250 | 2 |
76 | M12 | 75 | 40 | 32 | 92 | 289 | 2 |
83 | M12 | 78 | 43 | 32 | 98 | 310 | 2 |
89 | M12 | 81 | 46 | 32 | 104 | 325 | 2 |
102 | M16 | 93 | 53 | 38 | 122 | 365 | 2 |
108 | M16 | 96 | 56 | 38 | 128 | 390 | 2 |
114 | M16 | 99 | 59 | 38 | 134 | 405 | 2 |
133 | M16 | 108 | 69 | 38 | 154 | 450 | 2 |
140 | M16 | 112 | 72 | 38 | 160 | 470 | 2 |
159 | M16 | 122 | 82 | 38 | 180 | 520 | 2 |
165 | M16 | 125 | 85 | 38 | 186 | 538 | 2 |
219 | M16 | 152 | 112 | 38 | 240 | 680 | 2 |
We not only produce DIN3570 titanium u bolt,But also produce GB,DIN,ASME,ANSI,ISO,UNI,JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard with your samples or drawings.
