M4-M12
Ruiyang
810890
DIN1587 Titanium Hexagon Acorn Nuts and stainless steel hexagonal slotted nut are equipped with cotter pins, and are matched with screw bolts with holes to withstand vibration and alternating loads, which can prevent the nuts from loosening and coming out.It can prevent loosening and has good elasticity,mostly used on rough and simple components.

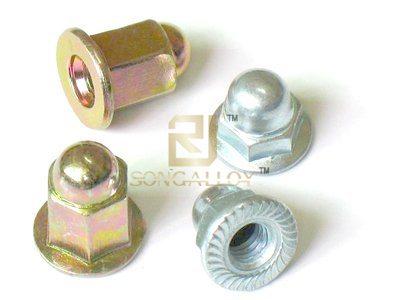

Titanium Dome Cap Nuts are hexagon nuts are made to DIN 1587 standard and feature a domed head that resembles an acorn.
DIN1587 Titanium hexagonal acorn nuts application:
Titanium DIN1587 Hexagon Acorn Nuts suitable for high-strength fasteners,mechanical fasteners,furniture fasteners, vehicle fasteners, special-shaped parts for car processing, cold heading special-shaped fasteners, double-ended anchor U-shaped wires,fasteners for building decoration Firmware, and other types of fasteners, can also be used in basic engineering, auto and motorcycle accessories, light industry, machinery, furniture, hardware tools,building decoration, etc.

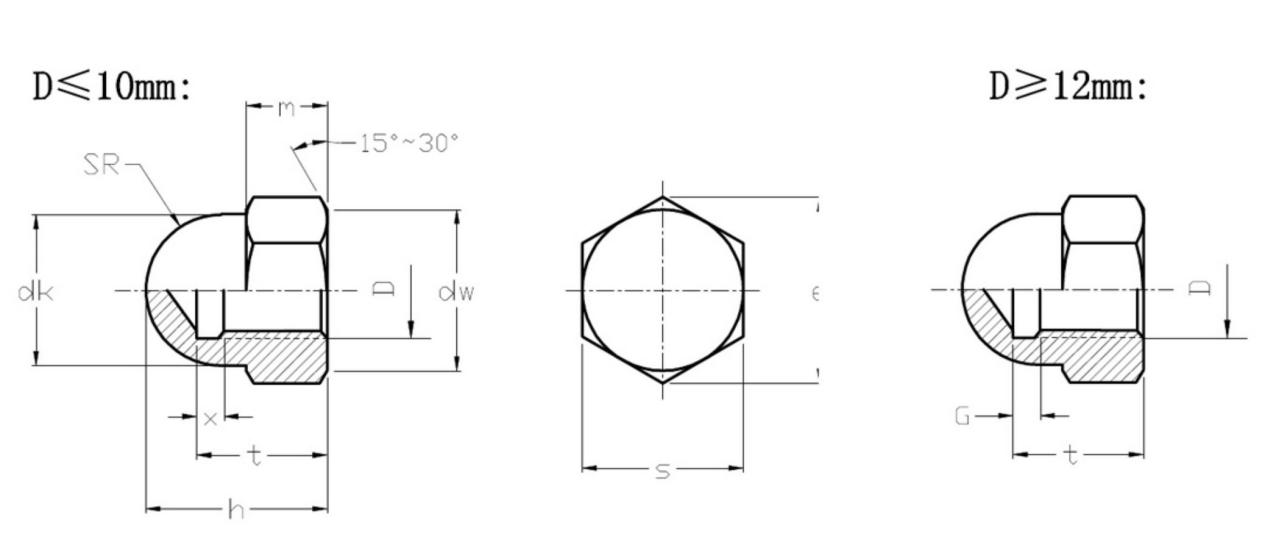

Dimension and drawings of DIN1587 Titanium Hexagon Acorn Nuts shown as below:
d | M4 | M5 | M6 | M8 | M10 | M10 | M12 | M12 | ||
P | series1 | coarse teeth | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.5 | 1.75 | 1.75 |
series2 | fine teeth | / | / | / | 1 | 1 | 1 | 1.5 | 1.5 | |
series3 | fine teeth | / | / | / | / | 1.25 | 1.25 | 1.25 | 1.25 | |
da | min | 4 | 5 | 6 | 8 | 10 | 10 | 12 | 12 | |
max | 4.6 | 5.75 | 6.75 | 8.75 | 10.8 | 10.8 | 13 | 13 | ||
dk | max | 6.5 | 7.5 | 9.5 | 12.5 | 16 | 15 | 18 | 17 | |
dw | min | 5.8 | 6.8 | 8.3 | 11.3 | 15.3 | 14.3 | 17.2 | 16.2 | |
e | min | grade A | 7.66 | 8.79 | 11.05 | 14.38 | 18.9 | 17.77 | 21.1 | 20.03 |
grade B | 7.5 | 8.63 | 10.89 | 14.2 | 18.72 | 17.59 | 20.88 | 19.85 | ||
x | max | series1 | 1.4 | 1.6 | 2 | 2.5 | 3 | 3 | / | / |
series2 | / | / | / | 2 | 2 | 2 | / | / | ||
series3 | / | / | / | / | 2.5 | 2.5 | / | / | ||
G | max | series1 | / | / | / | / | / | / | 6.4 | 6.4 |
series2 | / | / | / | / | / | / | 5.6 | 5.6 | ||
series3 | / | / | / | / | / | / | 4.9 | 4.9 | ||
h | max=DK | 8 | 10 | 12 | 15 | 18 | 18 | 22 | 22 | |
min | grade A | 7.64 | 9.64 | 11.57 | 14.57 | 17.57 | 17.57 | 21.48 | 21.48 | |
grade B | 7.42 | 9.42 | 11.3 | 14.3 | 17.3 | 17.3 | 21.16 | 21.16 | ||
m | max | 3.2 | 4 | 5 | 6.5 | 8 | 8 | 10 | 10 | |
min | 2.9 | 3.7 | 4.7 | 6.14 | 7.64 | 7.64 | 9.64 | 9.64 | ||
mw | min | 2.32 | 2.96 | 3.76 | 4.91 | 6.11 | 6.11 | 7.71 | 7.71 | |
SR | ≈ | 3.25 | 3.75 | 4.75 | 6.25 | 8 | 7.5 | 9 | 8.5 | |
s | max=DK | 7 | 8 | 10 | 13 | 17 | 16 | 19 | 18 | |
min | grade A | 6.78 | 7.78 | 9.78 | 12.73 | 16.73 | 15.73 | 18.73 | 17.73 | |
grade B | 6.64 | 7.64 | 9.64 | 12.57 | 16.57 | 15.57 | 18.48 | 17.57 | ||
t | min | 5.26 | 7.21 | 7.71 | 10.65 | 12.65 | 12.65 | 15.65 | 15.65 | |
max | 5.74 | 7.79 | 8.29 | 11.35 | 13.35 | 13.35 | 16.35 | 16.35 | ||
w | min | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 |
Related pure titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners we also supply.All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Welcome mail us info@topqualityalloy.com to buy DIN1587 Titanium Hexagon Acorn Nuts from us,One stop servie here.
