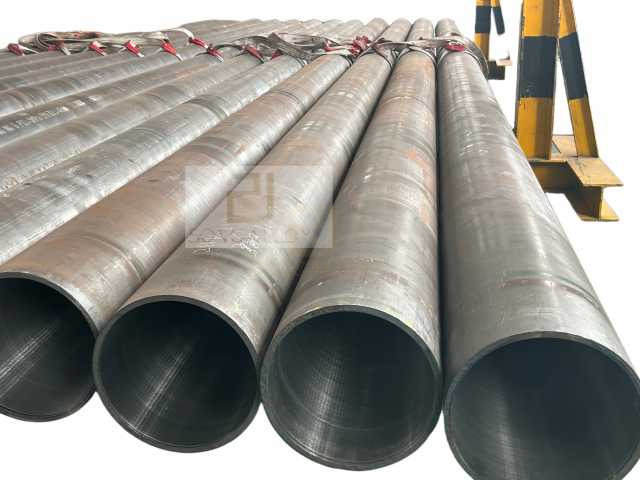

Bimetallic Pipe Laser Cladding

Ruiyang company supply you kinds of Laser Clad Technology for Bimetallic Pipes for your choice.

The laser cladding technology with low heat input, can be applied for overlay.cladding on heat-sensitive materials, thin-walled components, small-sized structure,steel pipe and valves.Additionally, it can be used for entirely new material

combinations, such as function material Cobalt-based alloy, Nickel-based alloy, Tibased alloy, Cu-based alloy and ect.As the property of cladding layer is significantly higher than base material, it will be the most cost-effective solution for the

manufacturing of bimetal pipe.

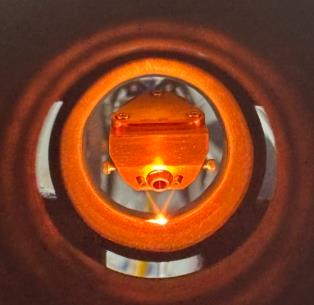

Our details tubing supply as below:

Steel Grade:J55 K55 N80 C90 T95 P110 Q125 Outer Diameter: 88.9-114.3mm(3 ½-4.5 inch)

Inner Diameter: 77.9-100.5mm

Tube length: Maximum 10m

CRA thickness:0.5-3mm

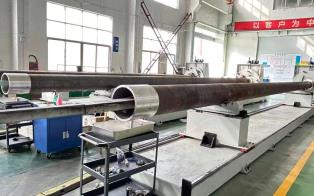

 Casing deails:

Steel Grade: J55 K55 N80 C90 C95 T95 P110

Outer Diameter: 114.3-508mm(4.5-20 inch)

Inner Diameter:100.5-485.74mm

Pipe length: Maximum 12.8m

CRA thickness:0.5-5mm

Reference:N80QØ339.72×12.19mm CRA Inconel 625 t =0.75mm

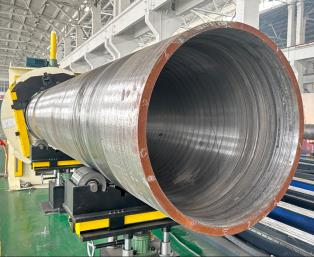

Pipeline steel pipe as below:

Steel Grade: X52(L360) X60(L415) X65(L450) X70(L485) X80(L555)Outer Diameter: 323.9-1016mm(12.75-40 inch)

Pipe length: Maximum 12.8m

CRA thickness:0.5-5mm

Reference:

N80QØ965×52mm CRA Inconel 625t=0.8mm

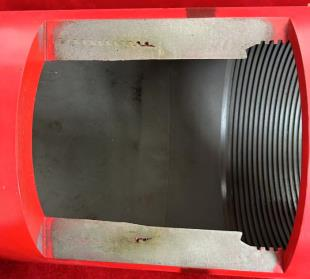

Coupling & Thread seal surface cladding:

Steel Grade: N80Q

Outer Diameter:368mm

Tread Type: HSTW-CA Gas tight

Cladding of seal surface: 12.5mm & 6.5mm CRA thickness:0.5mm

Overlay material: Inconel 625

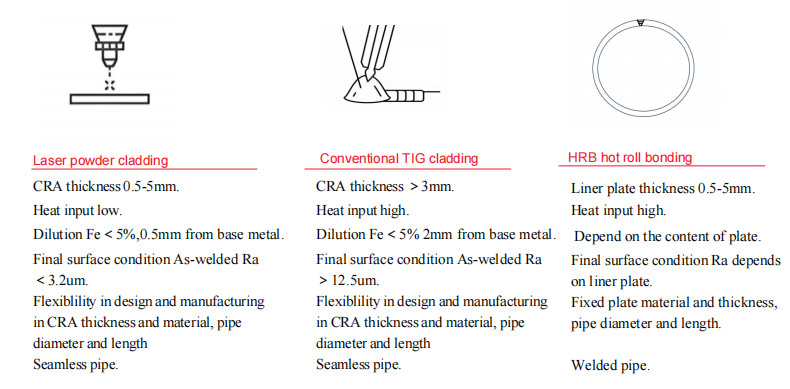

Why Bimetallic Pipe?

Hard Automation oder besser Robotik?

The substrate of the bimetallic pipe bears pressure, while the CRA cladding layer provides anti-corrosion

capability,It combines high strength and excellent corrosion resistance with remarkable cost saving.

This structure achieves a "1+1>2" efficiency effect.

The bonding of CRA layer and base pipe is metallurgical bonding.

Finally,while ensuring the same anti-corrosion capacity and service life as pure nickle alloy pipe,it greatly reduces the

consumption of expensive metals and significantly cuts initial investment and full-lifecycle costs. The cost reduction can reach 30-50%.

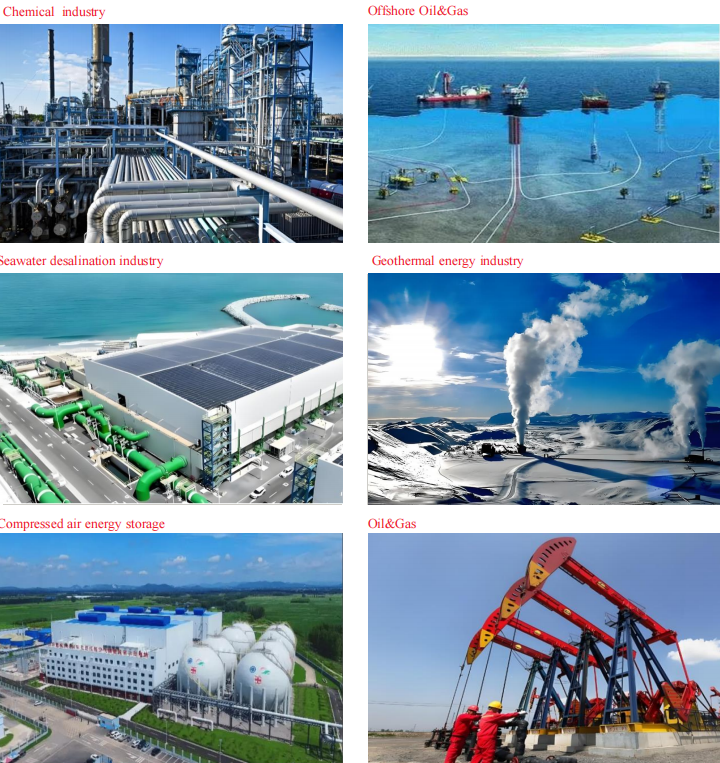

Effective anti-corrosion control is essential across these industries such as Chemcial,oil and gas,seawater desalination industry,Geothermal energy industry.compressed air energy storage fields.

Common corrosive media in those segment including H2S,CO2,Cl-,Acidic and others. How to reduce the safety

risks,economic losses, operation downtime and increase service life has been hot topic in those industry, Our biemetallic pipe deliver perfect anti-corrosion performance to those corrosive media ,can provide an ideal solution.

Welcome contact us to buy  Bimetallic Pipe Laser Cladding,just mail us info@topqualityalloy.com for save your cost and prompt your big projects
