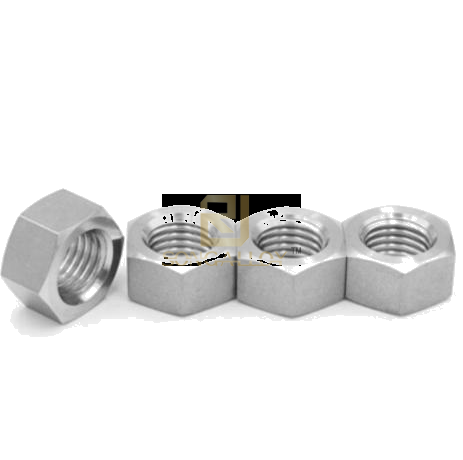

Asme B18.2.2 Titanium Hex Nuts (ANSI/ASME B18.2.2 TABLE1 Hexagon Nuts) are widely used in conjunction with Titanium bolts and Titanium screws to connect and fasten Titanium parts.
We produce GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Asme B18.2.2 Titanium Hex Nuts sizes as below:
d | s | k | ||
max | max | max | max | |
#0 | 0.156 | 0.15 | 0.05 | 0.043 |
#1 | 0.156 | 0.15 | 0.05 | 0.043 |
#2 | 0.188 | 0.18 | 0.066 | 0.057 |
#3 | 0.188 | 0.18 | 0.066 | 0.057 |
#4 | 0.25 | 0.241 | 0.098 | 0.087 |
#5 | 0.312 | 0.302 | 0.114 | 0.102 |
#6 | 0.312 | 0.302 | 0.114 | 0.102 |
#8 | 0.344 | 0.332 | 0.13 | 0.117 |
#10 | 0.375 | 0.362 | 0.13 | 0.117 |
#12 | 0.438 | 0.423 | 0.161 | 0.148 |
1/4 | 0.438 | 0.423 | 0.193 | 0.178 |
5/16 | 0.562 | 0.545 | 0.225 | 0.208 |
3/8 | 0.625 | 0.607 | 0.257 | 0.239 |
Welcome contact us buy Asme B18.2.2 Titanium Hex Nut ANSI Hexagon Nuts inquiry and order.
Ruiyang company could supply you one stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel fasteners for choice.Just mail to info@topqualityalloy.com for our cooperation.
