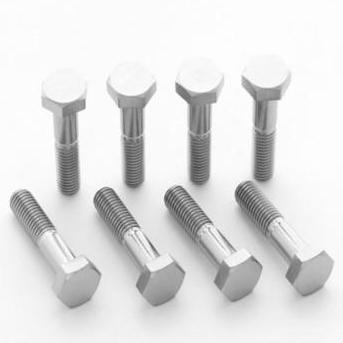

Ansi/asme B18.2.1 Titanium Alloy Hexagon Bolts

Supply Ansi/asme B18.2.1 Titanium Alloy Hexagon Bolts customed
Ansi B18.2.1-2010 table 2 Titanium Alloy Hexagon Bolts supplied
Ansi/asme B18.2.1 Titanium Alloy Hexagon Bolts supplied
Titanium hex bolt half thread material mainly GR1,Gr2,Gr5 titanium alloy
Good quality,soonest delivery with factory price
Availability:
Quantity:
Inquire Add to Basket

  • 1/4''~4''

  • RuiYang

  • 810890

We supply Ansi/asme B18.2.1 Titanium Alloy Hexagon Bolts,including the Standard ASME B18.2.1-2010 UNF threaded Hex Bolts according to your order request.

With our professional factory we could supply you factory price+soonest delivery+right quality+safe package

Asme b18.2.1 bolts and Hex Bolts ASME B18.2.1 materials we supply steel,stainless steel bolts and titanium bolts one stop service.

The Asme b18.2.1 thread length and asme b18.2.1 dimensions and drawings table 2 details as below:

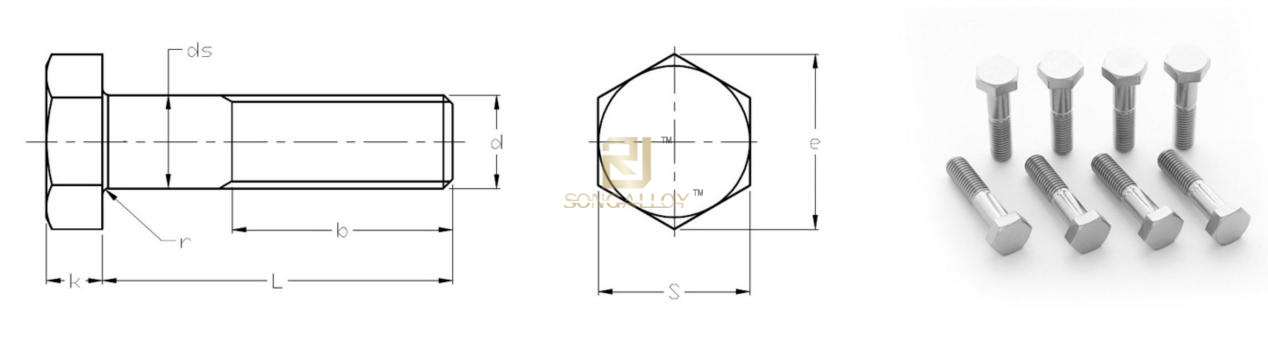

asme b18.2.1 titanium hex bolts dimensions

d

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

ds

max

0.26

0.324

0.388

0.452

0.515

0.642

0.768

0.895

1.022

1.149

1.277

1.404

1.531

min

0.237

0.298

0.36

0.421

0.482

0.605

0.729

0.852

0.976

1.098

1.223

1.345

1.47

s

size

7/16

1/2

9/16

5/8

3/4

15/16

1-1/8

1-5/16

1-1/2

1-11/16

1-7/8

2-1/16

2-1/4

max

0.438

0.5

0.562

0.625

0.75

0.938

1.125

1.312

1.5

1.688

1.875

2.062

2.25

min

0.425

0.484

0.544

0.603

0.725

0.906

1.088

1.269

1.45

1.631

1.812

1.994

2.175

e

max

0.505

0.577

0.650

0.722

0.866

1.083

1.299

1.516

1.732

1.949

2.165

2.382

2.598

min

0.484

0.552

0.620

0.687

0.826

1.033

1.240

1.447

1.653

1.859

2.066

2.273

2.480

k

size

11/64

7/32

1/4

19/64

11/32

27/64

1/2

37/64

43/64

3/4

27/32

29/32

1

max

0.188

0.235

0.268

0.316

0.364

0.444

0.524

0.604

0.7

0.78

0.876

0.94

1.036

min

0.15

0.195

0.226

0.272

0.302

0.378

0.455

0.531

0.591

0.658

0.749

0.81

0.902

r

max

0.030

0.030

0.030

0.030

0.030

0.060

0.060

0.060

0.090

0.090

0.090

0.090

0.090

min

0.010

0.010

0.010

0.010

0.010

0.020

0.020

0.020

0.030

0.030

0.030

0.030

0.030

b

L≤6

0.75

0.875

1

1.125

1.25

1.5

1.75

2

2.25

2.5

2.75

3

3.25

L＞6

1

1.125

1.25

1.375

1.5

1.75

2

2.25

2.5

2.75

3

3.25

3.5

d

1-5/8

1-3/4

1-7/8

2

2-1/4

2-1/2

2-3/4

3

3-1/4

3-1/2

3-3/4

4

ds

max

1.658

1.785

1.912

2.039

2.305

2.559

2.827

3.081

3.335

3.589

3.858

4.111

min

1.591

1.716

1.839

1.964

2.214

2.461

2.711

2.961

3.21

3.461

3.726

3.975

s

size

2-7/16

2-5/8

2-13/16

3

3-3/8

3-3/4

4-1/8

4-1/2

4-7/8

5-1/4

5-5/8

6

max

2.438

2.625

2.812

3

3.375

3.75

4.125

4.5

4.875

5.25

5.625

6

min

2.356

2.538

2.719

2.9

3.262

3.625

3.988

4.35

4.712

5.075

5.437

5.8

e

max

2.815

3.031

3.248

3.464

3.897

4.330

4.763

5.196

5.629

6.062

6.495

6.928

min

2.616

2.893

3.099

3.306

3.719

4.133

4.546

4.959

5.372

5.786

6.198

6.612

k

size

1-3/32

1-5/32

1-1/4

1-11/32

1-1/2

1-21/32

1-13/16

2

2-3/16

2-5/16

2-1/2

2-11/16

max

1.116

1.196

1.276

1.388

1.548

1.708

1.869

2.06

2.251

2.38

2.572

2.764

min

0.978

1.054

1.13

1.175

1.327

1.479

1.632

1.815

1.936

2.057

2.241

2.424

r

max

0.090

0.120

0.120

0.120

0.190

0.190

0.190

0.190

0.190

0.190

0.190

0.190

min

0.030

0.040

0.040

0.040

0.060

0.060

0.060

0.060

0.060

0.060

0.060

0.060

b

L≤6

3.5

3.75

4

4.25

4.75

5.25

5.75

6.25

6.75

7.25

7.75

8.25

L＞6

3.75

4

4.25

4.5

5

5.5

6

6.5

7

7.5

8

8.5

The Titanium heavy bolts heavy series are full thread according to ANSI/ASME B18.2.1-2010 TABLE 3 as below:

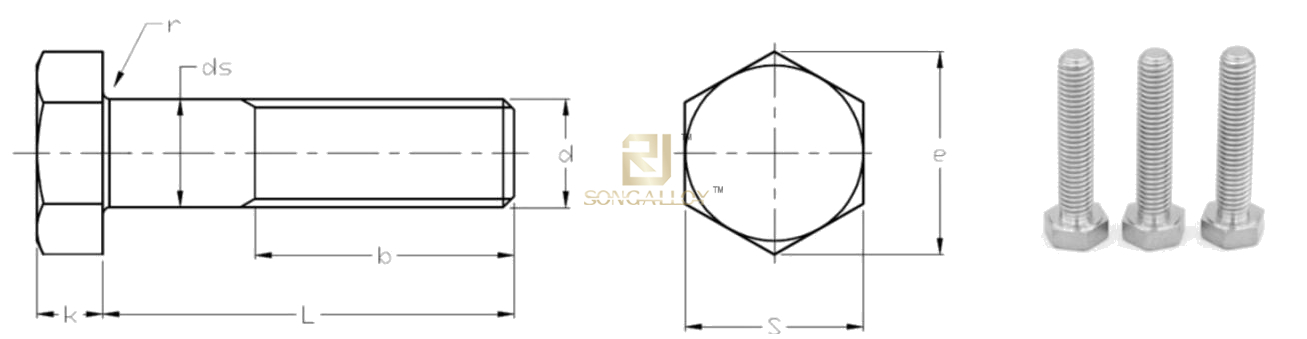

ANSI/ASME B18.2.1-2010 Titanium heavy Full thread dimensions 3/8''-3''

asme b18.2.1 titanium heavy hex bolts

d

3/8

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

ds

max

0.388

0.515

0.642

0.768

0.895

1.022

1.149

1.277

1.404

min

0.360

0.482

0.605

0.729

0.852

0.976

1.098

1.223

1.345


s

sizes

11/16

7/8

1-1/16

1-1/4

1-7/16

1-5/8

1-13/16

2

2-3/16

max

0.688

0.875

1.062

1.250

1.438

1.625

1.812

2.000

2.188

min

0.669

0.850

1.031

1.212

1.394

1.575

1.756

1.938

2.119

e

max

0.794

1.010

1.227

1.443

1.660

1.876

2.093

2.309

2.526

min

0.763

0.969

1.175

1.383

1.589

1.796

2.002

2.209

2.416


k

sizes

1/4

11/32

27/64

1/2

37/64

43/64

3/4

27/32

29/32

max

0.268

0.364

0.444

0.524

0.604

0.700

0.780

0.876

0.940

min

0.226

0.302

0.378

0.455

0.531

0.591

0.658

0.749

0.810

r

max

0.030

0.030

0.060

0.060

0.060

0.090

0.090

0.090

0.090

min

0.010

0.010

0.020

0.020

0.020

0.030

0.030

0.030

0.030

b

L≤6

1.250

1.500

1.750

2.000

2.250

2.500

2.750

3.000

3.250

6＜L

1.250

1.500

1.750

2.000

2.250

2.500

2.750

3.000

3.250

Heavy series upto 3 inch titanium hex bolts as below:


d

1-1/2

1-5/8

1-3/4

1-7/8

2

2-1/4

2-1/2

2-3/4

3

ds

max

1.531

1.658

1.758

1.912

2.039

2.305

2.559

2.827

3.081

min

1.470

1.591

1.716

1.839

1.964

2.214

2.461

2.711

2.961


s


2-3/8

2-9/16

2-3/4

2-15/16

3-1/8

3-1/2

3-7/8

4-1/4

4-5/8

max

2.375

2.562

2.750

2.938

3.125

3.500

3.875

4.250

4.625

min

2.300

2.481

2.662

2.844

3.025

3.388

3.750

4.112

4.475

e

max

2.742

2.959

3.175

3.392

3.608

4.041

4.474

4.907

5.340

min

2.622

2.829

3.035

3.242

3.449

3.862

4.275

4.688

5.102


k


1

1-3/32

1-5/32

1-1/4

1-11/32

1-1/2

1-21/32

1-13/16

2

max

1.036

1.116

1.196

1.276

1.388

1.548

1.708

1.869

2.060

min

0.902

0.978

1.054

1.130

1.175

1.327

1.479

1.632

1.815

r

max

0.090

0.090

0.120

0.120

0.120

0.190

0.190

0.190

0.190

min

0.030

0.030

0.040

0.040

0.040

0.060

0.060

0.060

0.060

b

L≤6

3.250

3.500

3.750

4.000

4.250

4.750

5.250

5.750

6.250

6＜L

3.500

3.750

4.000

4.250

4.500

5.000

5.500

6.000

6.500

We supply Full series ANSI/ASME B18.2.1 titanium hexagon bolts,not only half thread ti bolts and full thread ti bolts,material with pure titanium and titanium alloy for your choice

Meanwhile,ANSI/ASME B18.2.1 Titanium flanges bolts and nuts we also supply,welcome contact us but ANSI/ASME B18.2.1 Titanium alloy hexagon bolts from our company.Just mail us info@topqualityalloy.com for your choice.
