OD6-1200MM
songalloy
75071200

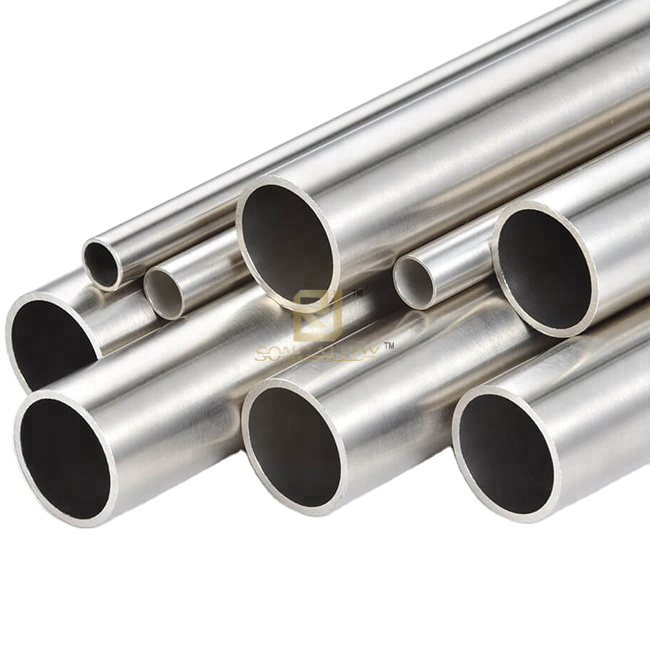

ASTMB167 UNS 06600 pipe supplier and ASTM B167 Inconel 600 Seamless Pipe producer,ASTMB163 Alloy 600 seamless pipe tube supply from Ruiyang company
| ASTM B167/B163 Inconel Alloy 600 UNS06600 Nickel alloy pipes and tubes | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Inconel 600 Pipe Chemical Composition | C | Si | Mn | S max | P Max | Cr | Ni | Cu | Fe |
| 0.15max | 0.5max | 1.0max | 0.015 | 0.015 | 14-17 | 72min | 0.5max | 6-10 | |
| Inconel 600 pipe Mechanical Properties annealed | OD | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | |||||
| OD≤127 | 550 | 240 | 35 | ||||||
| OD≥127 | 550 | 205 | 30 | ||||||
| Physical properties | Density | melting point | |||||||
| 8.24g/cm3 | 1370℃-1425℃ | ||||||||
Equivalent Grades for Alloy 600 UNS N06600 Nickel Alloy Pipe and Tube
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Inconel 600 Pipe | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
Alloy 6600(ASTM B167 Inconel 600 seamless pipe and alloy 600 nickel alloy pipe and tube) has the following properties
Alloy 600 pipe has good resistance to the corrosion of reduction, oxidation and nitriding media
inconel 600 pipe has good stress corrosion cracking resistance at room temperature and high temperature
NA13 Has good resistance to dry chlorine and hydrogen chloride gas corrosion
N06600 with Excellent mechanical properties at sub-zero,room temperature and high temperature
ncf 600 pipe has good creep fracture strength, and is recommended to work in an environment above 700 degrees
Alloy 600 pipe and alloy 600 tube nickel alloy Corrosion resistance:
Alloy 600 has corrosion resistance to corrosive media.The composition of chromium metal makes the alloy 99.2 (alloy 200, combined) than nickel under oxidation condition Gold 201 low carbon) has better corrosion resistance. At the same time, the higher nickel content of alloy 600 makes it very good in reduction conditions and alkaline solutions Good corrosion resistance, and can effectively prevent chlorine-iron stress corrosion cracking
Alloy 600 has good corrosion resistance in acetic acid, acetic acid, formic acid, stearic acid and other organic acids Moderate corrosion resistance in inorganic acids
The high purity water used for primary and secondary recycling in nuclear reactors has excellent corrosion resistance
The 600 is particularly resistant to corrosion by dry chlorine and hydrogen chloride at 650 degrees At high temperatures, the annealed and solution treated alloys exhibit excellent resistance to oxidation spalling and high strength in air The alloy can also resist ammonia and nitriding and carburizing atmospheres, but the alloy will receive part of the oxidizing medium when the REDOX conditions change alternately Corrosion
Scope of alloy 600 pipes and ASTM B167 Inconel 600 seamless pipe application
Thermocouple casing in corrosive atmosphere
Vinyl chloride monomer production: resistance to chlorine, hydrogen chloride, oxidation and carbonization corrosion
uranium oxidation to hexafluoride: hydrogen fluoride corrosion resistance
Areas of production and use of corrosive alkaline metals, especially sulphide environments
Titanium dioxide is prepared by chlorine gas
organic or inorganic chloride and fluoride production: chlorine and fluorine corrosion resistance
Nuclear reactors
Flares and parts in heat treatment furnace, especially in carbonization and nitriding atmosphere
