#0-3/4
RuiYang
810890

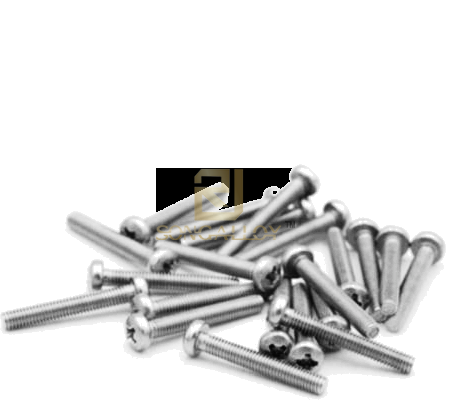

ANSI/ASME B18.6.3 TABLE18 Cross Recessed Pan Head Titanium Screws customed and supply
Titanium and titanium alloy ANSI/ASME B18.6.3 TABLE18 Cross Recessed Pan Head Screws mainly used in railway and highway bridges, boiler steel structures, industrial plants, high-rise civil buildings, tower and mast structures, hoisting machinery and their steel structures where friction-type high-strength pan head combination screws are required.
All our Titanium products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
ANSI/ASME B18.6.3 TABLE18 Cross Recessed Pan Head Titanium Screws dimensions as below:
d | dk | k | cross groove | |||
max | min | max | min | m | slot number | |
#0 | 0.116 | 0.104 | 0.044 | 0.036 | 0.06 | 0 |
#1 | 0.142 | 0.13 | 0.053 | 0.044 | 0.067 | 0 |
#2 | 0.167 | 0.155 | 0.062 | 0.053 | 0.097 | 1 |
#3 | 0.193 | 0.18 | 0.071 | 0.062 | 0.105 | 1 |
#4 | 0.219 | 0.205 | 0.08 | 0.07 | 0.115 | 1 |
#5 | 0.245 | 0.231 | 0.089 | 0.079 | 0.152 | 2 |
#6 | 0.27 | 0.256 | 0.097 | 0.087 | 0.159 | 2 |
#8 | 0.322 | 0.306 | 0.115 | 0.105 | 0.175 | 2 |
#10 | 0.373 | 0.357 | 0.133 | 0.122 | 0.192 | 2 |
#12 | 0.425 | 0.407 | 0.151 | 0.139 | 0.252 | 3 |
1/4 | 0.492 | 0.473 | 0.175 | 0.162 | 0.274 | 3 |
5/16 | 0.615 | 0.594 | 0.218 | 0.203 | 0.343 | 4 |
3/8 | 0.74 | 0.716 | 0.261 | 0.244 | 0.382 | 4 |
7/16 | 0.863 | 0.837 | 0.305 | 0.284 | 0.406 | 4 |
1/2 | 0.987 | 0.958 | 0.348 | 0.325 | 0.428 | 4 |
9/16 | 1.041 | 1 | 0.397 | 0.366 | 0.458 | 4 |
5/8 | 1.172 | 1.125 | 0.434 | 0.406 | 0.575 | 5 |
3/4 | 0.435 | 1.375 | 0.521 | 0.488 | 0.621 | 5 |
We do hope to supply our clients right goods with best price.Welcome contact us for inquiry of ANSI/ASME B18.6.3 TABLE18 Cross Recessed Pan Head Titanium Screws and related Ti nuts and bolts in titanium fasteners,also stainless steel fasteners just mail us info@topqualityalloy.com with necessary sizes and quantity.
