0#-5/8''
RuiYang
810890

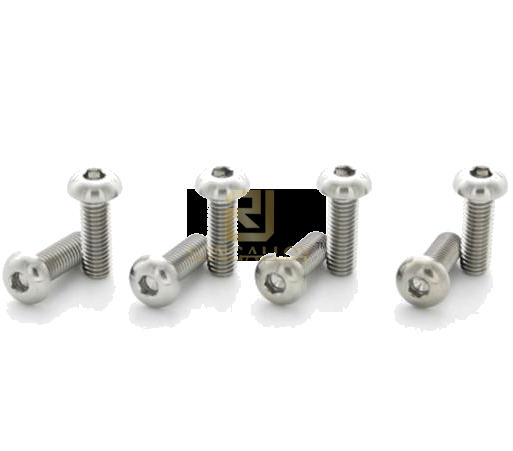

ANSI/ASME B18.3 TABLE 3 Titanium Hexagon Socket Round Head Screws mainly used for mechanical fixation. The advantage of this is that it is easier to fix without causing slippage, and it is easier to disassemble.We produce GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.There are our mature entrepreneurial management,professional R&D team,advanced manufacturing technology.
ANSI/ASME B18.3 TABLE3 Titanium Hexagon Socket Round Head Screws dimensions:
d | d | PP | dk | k | s | t | L | ||||
UNC | UNF | UNEF | max | min | max | min | DK | min | max | ||
0# | 0.060 | - | 80.0 | - | 0.114 | 0.104 | 0.032 | 0.026 | 0.035 | 0.020 | 0.50 |
1# | 0.073 | 64.0 | 72.0 | - | 0.139 | 0.129 | 0.039 | 0.033 | 0.050 | 0.028 | 0.50 |
2# | 0.086 | 56.0 | 64.0 | - | 0.164 | 0.154 | 0.046 | 0.038 | 0.050 | 0.028 | 0.50 |
3# | 0.099 | 48.0 | 56.0 | - | 0.188 | 0.0176 | 0.052 | 0.044 | 0.062 | 0.035 | 0.50 |
4# | 0.112 | 40.0 | 48.0 | - | 0.213 | 0.201 | 0.059 | 0.051 | 0.062 | 0.035 | 0.50 |
5# | 0.125 | 40.0 | 44.0 | - | 0.238 | 0.226 | 0.066 | 0.058 | 0.078 | 0.044 | 0.50 |
6# | 0.138 | 32.0 | 40.0 | - | 0.262 | 0.250 | 0.073 | 0.063 | 0.078 | 0.044 | 0.63 |
8# | 0.164 | 32.0 | 36.0 | - | 0.312 | 0.298 | 0.087 | 0.077 | 0.094 | 0.052 | 0.75 |
10# | 0.190 | 24.0 | 32.0 | - | 0.361 | 0.347 | 0.101 | 0.091 | 0.125 | 0.070 | 1.00 |
1/4 | 0.250 | 20.0 | 28.0 | 32.0 | 0.437 | 0.419 | 0.132 | 0.122 | 0.156 | 0.087 | 1.00 |
5/16 | 0.3125 | 18.0 | 24.0 | 32.0 | 0.547 | 0.527 | 0.166 | 0.152 | 0.188 | 0.105 | 1.00 |
3/8 | 0.375 | 16.0 | 24.0 | 32.0 | 0.656 | 0.636 | 0.199 | 0.185 | 0.219 | 0.122 | 1.25 |
1/2 | 0.500 | 13.0 | 20.0 | 28.0 | 0.875 | 0.851 | 0.265 | 0.245 | 0.312 | 0.175 | 2.00 |
5/8 | 0.625 | 11.0 | 18.0 | 24.0 | 1.000 | 0.970 | 0.331 | 0.311 | 0.375 | 0.210 | 2.00 |
We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium pipe and flange,pipe fittings,Ti wire rope,Ti Shackles and titanium sheets,laser cutting titanium sheets and cnc parts.Welcome contact us for ANSI/ASME B18.3 TABLE 3 Titanium Hexagon Socket Round Head Screws.
