0#-1-1/2''
RuiYang
810890

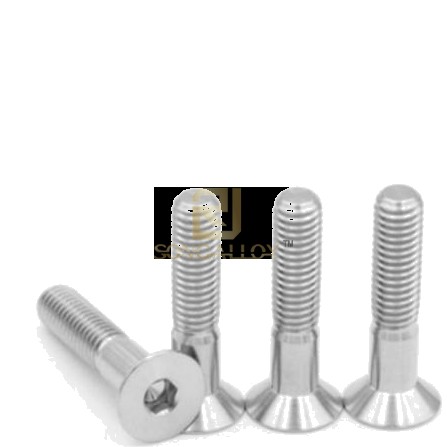

ANSI/ASME B18.3 TABLE 2 A Titanium Hexagon Socket Countersunk Head Screws commonly used in machinery, mainly has the advantages of easy fastening,disassembly,not easy to slip angle, etc.It can save a lot of force and can play a good tightening role.After installation, the surface of the part cannot be concave, and the screw head can sink into the installation surface to keep the installation surface flat.
We produce GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.
Our ANSI/ASME B18.3 TABLE2A Hexagon Socket Countersunk Head Screws Dimensions
0# - 5/16'' titanium screws hexagon socket countersunk head screws
d | 0# | 1# | 2# | 3# | 4# | 5# | 6# | 8# | 10# | 1/4 | 5/16 | |
d | 0.060 | 0.073 | 0.086 | 0.099 | 0.112 | 0.125 | 0.138 | 0.164 | 0.190 | 0.250 | 0.3125 | |
PP | UNC | - | 64.0 | 56.0 | 48.0 | 40.0 | 40.0 | 32.0 | 32.0 | 24.0 | 20.0 | 18.0 |
UNF | 80.0 | 72.0 | 64.0 | 56.0 | 48.0 | 44.0 | 40.0 | 36.0 | 32.0 | 28.0 | 24.0 | |
UNEF | - | - | - | - | - | - | - | - | - | 32.0 | 32.0 | |
ds | max | 0.060 | 0.073 | 0.086 | 0.099 | 0.112 | 0.125 | 0.138 | 0.164 | 0.19 | 0.250 | 0.3125 |
min | 0.0568 | 0.0695 | 0.0822 | 0.0949 | 0.1075 | 0.1202 | 0.1329 | 0.1585 | 0.1840 | 0.2435 | 0.3053 | |
dk | theoretical max | 0.138 | 0.168 | 0.197 | 0.226 | 0.255 | 0.281 | 0.307 | 0.359 | 0.411 | 0.531 | 0.656 |
Actual min | 0.117 | 0.143 | 0.168 | 0.193 | 0.218 | 0.240 | 0.263 | 0.311 | 0.359 | 0.480 | 0.600 | |
k | refer | 0.044 | 0.054 | 0.064 | 0.073 | 0.083 | 0.090 | 0.097 | 0.112 | 0.127 | 0.161 | 0.198 |
s | DK | - | - | - | 1/16 | 1/16 | 5/64 | 5/64 | 3/32 | 1/8 | 5/32 | 3/16 |
DK | 0.035 | 0.050 | 0.050 | 0.062 | 0.062 | 0.078 | 0.078 | 0.094 | 0.125 | 0.156 | 0.188 | |
t | min | 0.025 | 0.031 | 0.038 | 0.044 | 0.055 | 0.061 | 0.066 | 0.076 | 0.087 | 0.111 | 0.135 |
b | min | 0.50 | 0.62 | 0.62 | 0.62 | 0.75 | 0.75 | 0.75 | 0.88 | 0.88 | 1.00 | 1.12 |
α | ±2 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 |
b | - | - | - | - | - | - | - | - | - | - | - | |
3/8 - 1-1/2'' titanium screws hex socket countersunk head screws sizes:
d | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | |
d | 0.375 | 0.4375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.250 | 1.375 | 1.500 | |
PP | UNC | 16.0 | 14.0 | 13.0 | 11.0 | 10.0 | 9.0 | 8.0 | 7.0 | 7.0 | 6.0 | 6.0 |
UNF | 24.0 | 20.0 | 20.0 | 18.0 | 16.0 | 14.0 | 12.0 | 12.0 | 12.0 | 12.0 | 12.0 | |
UNEF | 32.0 | 28.0 | 28.0 | 24.0 | 20.0 | 20.0 | 20.0 | 18.0 | 18.0 | 18.0 | 18.0 | |
ds | max | 0.375 | 0.4375 | 0.500 | 0.625 | 0.750 | 0.875 | 1.000 | 1.125 | 1.250 | 1.375 | 1.500 |
min | 0.3678 | 0.4294 | 0.4919 | 0.6163 | 0.7406 | 0.8647 | 0.9886 | 1.1086 | 1.2336 | 1.3568 | 1.4818 | |
dk | theoretical max | 0.781 | 0.844 | 0.938 | 1.188 | 1.438 | 1.688 | 1.938 | 2.188 | 2.438 | 2.688 | 2.938 |
Actual min | 0.720 | 0.781 | 0.872 | 1.112 | 1.355 | 1.604 | 1.841 | 2.079 | 2.316 | 2.553 | 2.791 | |
k | refer | 0.234 | 0.234 | 0.251 | 0.324 | 0.396 | 0.468 | 0.540 | 0.611 | 0.683 | 0.755 | 0.827 |
s | DK | 7/32 | 1/4 | 5/16 | 3/8 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 7/8 | 1 |
DK | 0.219 | 0.250 | 0.312 | 0.375 | 0.500 | 0.562 | 0.625 | 0.750 | 0.875 | 0.875 | 1.000 | |
t | min | 0.159 | 0.159 | 0.172 | 0.220 | 0.220 | 0.248 | 0.297 | 0.325 | 0.358 | 0.402 | 0.435 |
b | min | 1.25 | 1.38 | 1.50 | 1.75 | 2.00 | 2.25 | 2.50 | 2.81 | 3.12 | 3.44 | 3.75 |
α | ±2 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 | 82 |
b | - | - | - | - | - | - | - | - | - | - | - | |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Ruiyang company could supply you one stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel washers and ss fasteners for choice.Just mail us info@topqualityalloy.com for our cooperation.
