ANSI/ASME B18.22.1 TABLE1A Titanium Plain Washers-Product GradeA

ANSI Washers and asme washers ANSI/ASME B18.22.1 TABLE1A Plain Washers-Product GradeA supply
18.22.1 Ti plat washes sizes:6#-3''
Gr2,Gr5 titanium material mainly ANSI/ASME B18.22.1 TABLE1A Plain Washers-Product GradeA material;pure titanium
Excellent quality factory price,one stop service,in stock,fast delivery
Welcome contact us buy titanium plain washers

Availability:

Quantity:



Inquire Add to Basket

Model:
6#-3''
Brand:
RuiYang
Code:
810890

Product Description

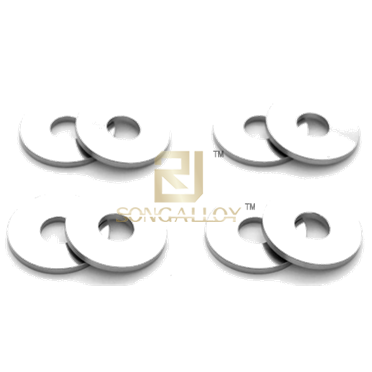

ANSI/ASME B18.22.1 TABLE1A Titanium Plain Washers-Product GradeA are usually thin pieces of various shapes used to reduce friction,prevent leakage,isolate,prevent looseness,or disperse pressure.

Titanium materials and Titanium alloy structures have this part,subject to Titanium threaded fasteners,Titanium bolts and other metal fasteners bearing surface is not large,so in order to reduce the pressure surface of the pressure protection is connected to the surface,the use of Ti Washers.

ANSI/ASME B18.22.1 TABLE1A Titanium Plain Washers-Product GradeA details sizes and drawings as below:

Titanium Plain Washers

nominal diameter(d)	d	Type	d₁			d_c			h
nominal diameter(d)	DN	Type	DN	max	min	DN	max	min	DN	max	min
-	-	-	0.078	0.078	0.073	0.188	0.188	0.183	0.020	0.025	0.016
-	-	-	0.094	0.094	0.089	0.250	0.250	0.245	0.020	0.025	0.016
-	-	-	0.125	0.133	0.120	0.312	0.320	0.307	0.032	0.040	0.025
6#	0.1380	-	0.156	0.164	0.151	0.375	0.390	0.370	0.049	0.065	0.036
8#	0.1640	-	0.188	0.196	0.183	0.438	0.453	0.433	0.049	0.065	0.036
10#	0.1900	-	0.219	0.227	0.214	0.500	0.515	0.495	0.049	0.065	0.036
3/16	0.1875	-	0.250	0.265	0.245	0.562	0.577	0.557	0.049	0.065	0.036
12#	0.2160	-	0.250	0.265	0.245	0.562	0.577	0.557	0.065	0.080	0.051
1/4	0.2500	N	0.281	0.296	0.276	0.625	0.640	0.620	0.065	0.080	0.051
1/4	0.2500	W	0.312	0.327	0.307	0.734*	0.749	0.727	0.065	0.080	0.051
5/16	0.3125	N	0.344	0.359	0.339	0.688	0.703	0.681	0.065	0.080	0.051
5/16	0.3125	W	0.375	0.390	0.370	0.875	0.905	0.868	0.083	0.104	0.064
3/8	0.3750	N	0.406	0.421	0.401	0.812	0.827	0.805	0.065	0.080	0.051
3/8	0.3750	W	0.438	0.453	0.433	1.000	1.030	0.993	0.083	0.104	0.064
7/16	0.4375	N	0.469	0.484	0.464	0.922	0.937	0.915	0.065	0.080	0.051

nominal diameter(d)	d	Type	d₁			d_c			h
nominal diameter(d)	DN	Type	DN	max	min	DN	max	min	DN	max	min
7/16	0.4375	W	0.500	0.515	0.495	1.250	1.280	1.243	0.083	0.104	0.064
1/2	0.5000	N	0.531	0.546	0.526	1.062	1.092	1.055	0.095	0.121	0.074
1/2	0.5000	W	0.562	0.577	0.557	1.375	1.405	1.368	0.109	0.132	0.086
9/16	0.5625	N	0.594	0.609	0.589	1.156*	1.186	1.149	0.095	0.121	0.074
9/16	0.5625	W	0.625	0.640	0.620	1.469*	1.499	1.462	0.109	0.132	0.086
5/8	0.6250	N	0.656	0.686	0.649	1.312	1.342	1.305	0.095	0.121	0.074
5/8	0.6250	W	0.688	0.718	0.681	1.750	1.780	1.743	0.134	0.160	0.108
3/4	0.7500	N	0.812	0.842	0.805	1.469*	1.499	1.462	0.134	0.160	0.108
3/4	0.7500	W	0.812	0.842	0.805	2.000	2.030	1.993	0.148	0.177	0.122
7/8	0.8750	N	0.938	0.968	0.931	1.750	1.780	1.743	0.134	0.160	0.108
7/8	0.8750	W	0.938	0.968	0.931	2.250	0.280	2.243	0.165	0.192	0.136
1	1.0000	N	1.062	1.092	1.055	2.000	2.030	1.993	0.134	0.160	0.108
1	1.0000	W	1.062	1.092	1.055	2.500	2.530	2.493	0.165	0.192	0.136
1-1/8	1.1250	N	1.250	1.280	1.243	2.250	2.280	2.243	0.134	0.160	0.108
1-1/8	1.1250	W	1.250	1.280	1.243	2.750	2.780	2.743	0.165	0.192	0.136

nominal diameter(d)	d	Type	d₁			d_c			h
nominal diameter(d)	DN	Type	DN	max	min	DN	max	min	DN	max	min
1-1/4	1.2500	N	1.375	1.405	1.368	2.500	2.530	2.493	0.165	0.192	0.136
1-1/4	1.2500	W	1.375	1.405	1.368	3.000	3.030	2.993	0.165	0.192	0.136
1-3/8	1.3750	N	1.500	1.530	1.493	2.750	2.780	2.743	0.165	0.192	0.136
1-3/8	1.3750	W	1.500	1.545	1.490	3.250	3.295	3.240	0.180	0.213	0.153
1-1/2	1.5000	N	1.625	1.655	1.618	3.000	3.030	2.993	0.165	0.192	0.136
1-1/2	1.5000	W	1.625	1.670	1.615	3.500	3.545	3.490	0.180	0.213	0.153
1-5/8	1.6250	-	1.750	1.795	1.740	3.750	3.795	3.740	0.180	0.213	0.153
1-3/4	1.7500	-	1.875	1.920	1.865	4.000	4.045	3.990	0.180	0.213	0.153
1-7/8	1.8750	-	2.000	2.045	1.990	4.250	4.295	4.240	0.180	0.213	0.153
2	2.0000	-	2.125	2.170	2.115	4.500	4.545	4.490	0.180	0.213	0.153
2-1/4	2.2500	-	2.375	2.420	2.365	4.750	4.795	4.740	0.220	0.248	0.193
2-1/2	2.5000	-	2.625	2.670	2.615	5.000	5.045	4.990	0.238	0.280	0.210
2-3/4	2.7500	-	2.85	2.940	2.865	5.250	5.315	5.240	0.259	0.310	0.228
3	3.0000	-	3.125	3.190	3.115	5.500	5.565	5.490	0.284	0.327	0.249

We are an audited fasteners Titanium supplier by SGS and BV,also supply stainless steel washers and ss bolts and nuts,ss stud bolts,thread bars and related fasteners and screws.specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.

Welcome contact us buy the ANSI/ASME B18.22.1 TABLE1A Titanium Plain Washers-Product GradeA types and related fasteners,just mail us info@topqualityalloy.com with necessary material,sizes and quantity for checking.
