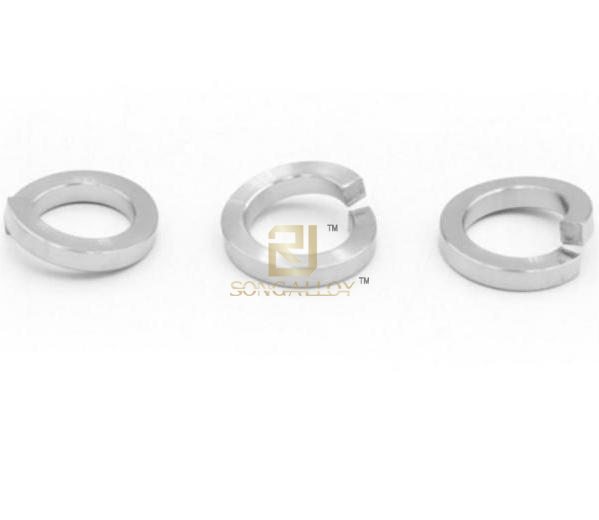

ANSI/ASME B18.21.1 TABLE1 Titanium Regular Spring Lock Washers Titanium fixings parts supply
Like plain ti washers in titanium fasteners,The basic function of ANSI/ASME B18.21.1 TABLE1 Regular Ti Spring Lock Washer is to give the Titanium nut a force after it is tightened,increasing the friction between the Titanium nut and the Titanium bolt. A protective measure added to prevent loosening of fastening bolts due to vibration of operating equipment.In the vibration, pulse, medium temperature has relatively large fluctuations, must use spring gasket. The spring pad can increase the preload and prevent loosening.

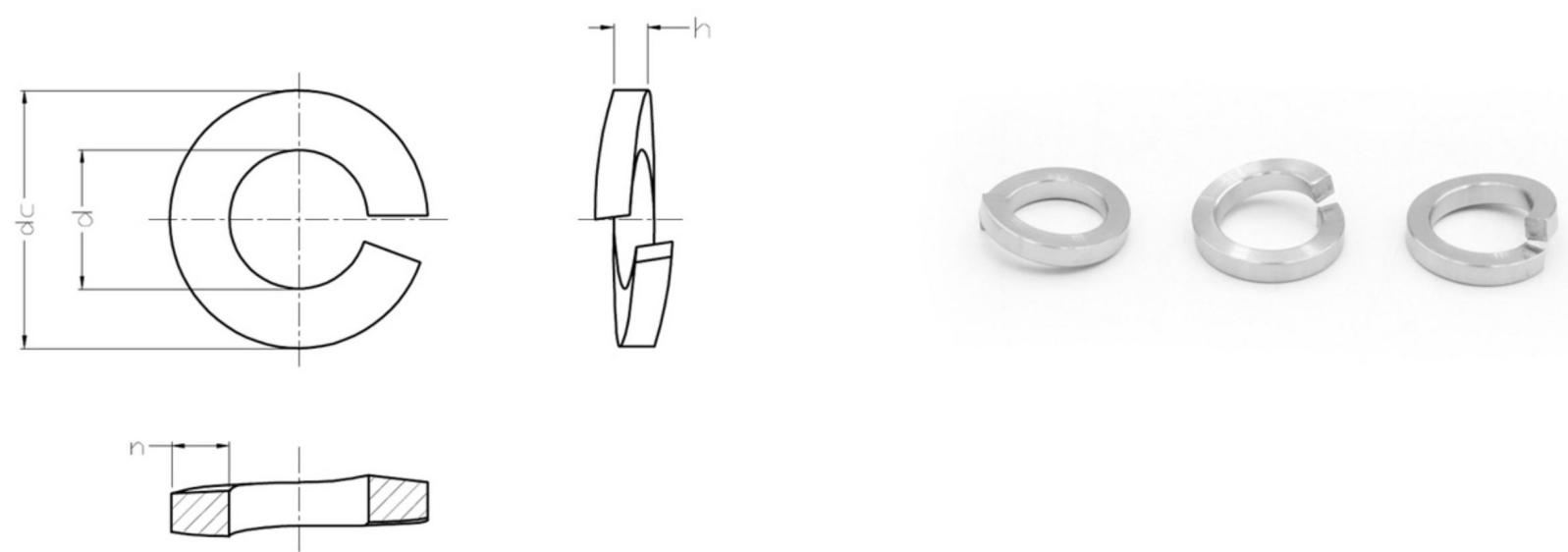

Dimension and drawing of ANSI/ASME B18.21.1 TABLE1 Titanium Regular Spring Lock Washers as below:
Thread specification(d) | d | dc | h | n | ||
DN | max | min | max | min | min | |
2# | 0.0860 | 0.094 | 0.088 | 0.172 | 0.020 | 0.035 |
3# | 0.09990 | 0.107 | 0.101 | 0.195 | 0.025 | 0.040 |
4# | 0.1120 | 0.120 | 0.114 | 0.209 | 0.025 | 0.040 |
5# | 0.1250 | 0.133 | 0.127 | 0.236 | 0.031 | 0.047 |
6# | 0.1380 | 0.148 | 0.141 | 0.250 | 0.031 | 0.047 |
8# | 0.1640 | 0.174 | 0.167 | 0.293 | 0.040 | 0.055 |
10# | 0.1900 | 0.200 | 0.193 | 0.334 | 0.047 | 0.062 |
12# | 0.2160 | 0.227 | 0.220 | 0.377 | 0.056 | 0.070 |
1/4 | 0.2500 | 0.260 | 0.252 | 0.487 | 0.062 | 0.109 |
5/16 | 0.3125 | 0.322 | 0.314 | 0.583 | 0.078 | 0.125 |
3/8 | 0.3750 | 0.385 | 0.377 | 0.680 | 0.094 | 0.141 |
7/16 | 0.4375 | 0.450 | 0.440 | 0.776 | 0.109 | 0.156 |
1/2 | 0.5000 | 0.512 | 0.502 | 0.869 | 0.125 | 0.171 |
9/16 | 0.5625 | 0.574 | 0.564 | 0.965 | 0.141 | 0.188 |
5/8 | 0.6250 | 0.641 | 0.628 | 1.073 | 0.156 | 0.203 |
11/16 | 0.6875 | 0.704 | 0.691 | 1.170 | 0.172 | 0.219 |
3/4 | 0.7500 | 0.766 | 0.753 | 1.265 | 0.188 | 0.234 |
13/16 | 0.8125 | 0.832 | 0.816 | 1.363 | 0.203 | 0.250 |
7/8 | 0.8750 | 0.894 | 0.878 | 1.459 | 0.219 | 0.266 |
15/16 | 0.9375 | 0.958 | 0.941 | 1.556 | 0.234 | 0.281 |
1 | 1.0000 | 10.24 | 1.003 | 1.656 | 0.250 | 0.297 |
1-1/16 | 1.0625 | 1.087 | 1.066 | 1.751 | 0.266 | 0.312 |
1-1/8 | 1.1250 | 1.153 | 1.129 | 1.847 | 0.281 | 0.326 |
1-3/16 | 1.1875 | 1.217 | 1.192 | 1.943 | 0.297 | 0.344 |
1-1/4 | 1.2500 | 1.280 | 1.254 | 2.036 | 0.312 | 0.359 |
1-5/16 | 1.3125 | 1.344 | 1.317 | 2.133 | 0.328 | 0.375 |
1-3/8 | 1.3750 | 1.408 | 1.379 | 2.219 | 0.344 | 0.391 |
1-7/16 | 1.4375 | 1.472 | 1.442 | 2.324 | 0.359 | 0.406 |
1-1/2 | 1.5000 | 1.534 | 1.504 | 2.419 | 0.375 | 0.422 |
1-5/8 | 1.6250 | 1.663 | 1.663 | 2.553 | 0.389 | 0.424 |
1-3/4 | 1.7500 | 1.789 | 1.758 | 2.679 | 0.389 | 0.424 |
1-7/8 | 1.8750 | 1.914 | 1.883 | 2.811 | 0.422 | 0.427 |
2 | 2.0000 | 2.039 | 2.008 | 2.936 | 0.422 | 0.427 |
2-1/4 | 2.2500 | 2.293 | 2.262 | 3.221 | 0.440 | 0.442 |
2-1/2 | 2.5000 | 2.543 | 2.512 | 3.471 | 0.440 | 0.442 |
2-3/4 | 2.7500 | 2.793 | 2.762 | 3.824 | 0.458 | 0.491 |
3 | 3.0000 | 3.043 | 3.012 | 4.074 | 0.458 | 0.491 |
Welcome contact us buy ANSI/ASME B18.21.1 TABLE1 Titanium Regular Spring Lock Washers,please mail us info@topqualityalloy.com with necessary material,washers sizes and quantity for inquiry and order.
As one of an audited Titanium fasteners supplier by SGS and BV,with own professional factory could do soonest delivery with good quality and pretty competitive price and one stop service here in Titanium products.
