1/16-7/16
RuiYang
810890

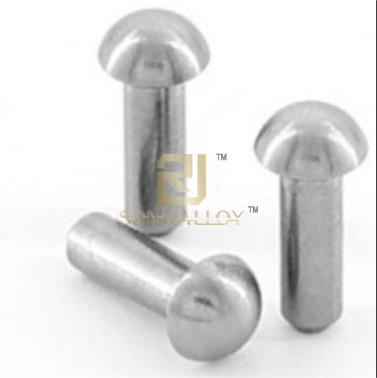

ANSI/ASME B18.1.1(R2016) TABLE3 Titanium Round Head Rivets Pure Titanium and titanium alloy rivets,the Gr1,Gr2 Pure titanium Round head rivets mainly used for riveting occasions with large lateral load,and is the most widely used,such as riveting fasteners on Titanium structures like boilers,bridges,and containers.The characteristic of riveting is that it is not removable. If the two riveted parts are to be separated, the rivet must be destroyed.
We are an audited supplier by SGS,BV,produce GB,DIN,ASME/ANSI,ISO,UNI,JIS,and other industrial fasteners and special fasteners in titanium and titanium alloy fasteners,With professional factory best guarantee the quality and lead time,just free to buy from us.

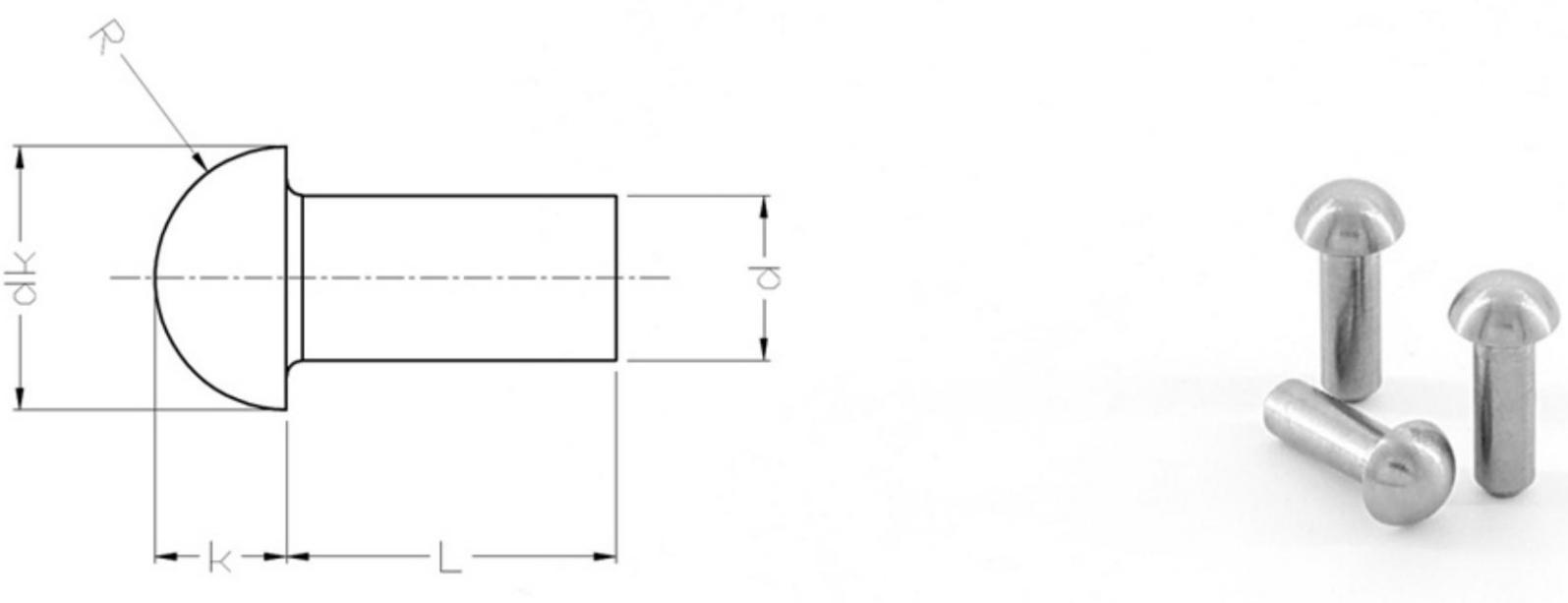

ANSI/ASME B18.1.1(R2016) TABLE3 Titanium Round Head Rivets details sizes and drawings as below:
Nominal diameter（d） | d | dk | k | R | |||
max | min | max | min | max | min | - | |
1/16 | 0.064 | 0.059 | 0.122 | 0.102 | 0.052 | 0.042 | 0.055 |
3/32 | 0.096 | 0.090 | 0.182 | 0.162 | 0.077 | 0.065 | 0.084 |
1/8 | 0.127 | 0.121 | 0.235 | 0.215 | 0.100 | 0.088 | 0.111 |
5/32 | 0.158 | 0.152 | 0.290 | 0.268 | 0.124 | 0.110 | 0.138 |
3/16 | 0.191 | 0.182 | 0.348 | 0.322 | 0.147 | 0.133 | 0.166 |
7/32 | 0.222 | 0.213 | 0.405 | 0.379 | 0.172 | 0.158 | 0.195 |
1/4 | 0.253 | 0.244 | 0.460 | 0.430 | 0.196 | 0.180 | 0.221 |
9/32 | 0.285 | 0.273 | 0.518 | 0.484 | 0.220 | 0.202 | 0.249 |
5/16 | 0.316 | 0.304 | 0.572 | 0.538 | 0.243 | 0.225 | 0.276 |
11/32 | 0.348 | 0.336 | 0.630 | 0.592 | 0.267 | 0.247 | 0.304 |
3/8 | 0.380 | 0.365 | 0.684 | 0.646 | 0.291 | 0.271 | 0.332 |
13/32 | 0.411 | 0.396 | 0.743 | 0.699 | 0.316 | 0.294 | 0.358 |
7/16 | 0.443 | 0.428 | 0.798 | 0.754 | 0.339 | 0.317 | 0.387 |
Welcome contact us buy ANSI/ASME B18.1.1(R2016) TABLE3 Titanium Round Head Rivets,please mail us info@topqualityalloy.com with titanium material,necessary sizes and quantity for inquiry and order.
