0.5-120
Ruiyang
73121000

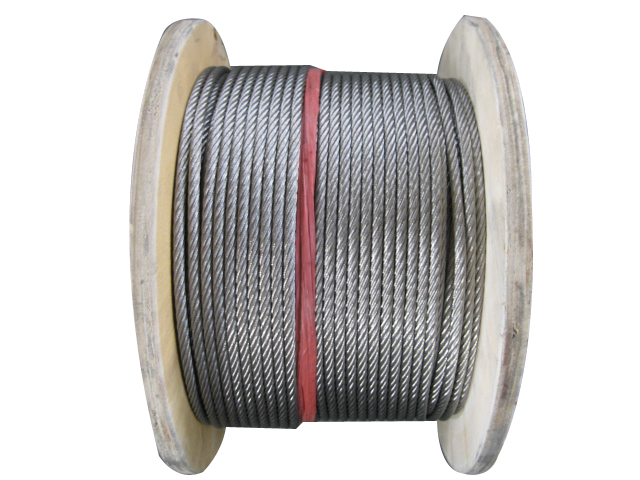

7x19 Stainless Steel Cable from 0.5mm to 12mm, constructed of 7 strands and 19 wires per strand. 7x19 construction makes this cable very flexible. bare wire rope or coated wire rope with wire rope riggigs could supply you one stop service from our company.
7x19 Stainless Steel Cable is used for a wide range of applications. Extremely flexible when compared to both 1x19 and 7x7, the 7x19 construction is often used where a flexible stainless steel wire rope is particularly required. 7x19 performs well for running applications. Used extensively throughout the marine industry as well as for general engineering applications, 7x19's excellent flexibility make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
constr | Dia.(mm) | Tolerance | Appro Weight(Kg/100m) | MBL/KN |
7x19 | 1.2 | ±0.080 | 0.54 | 0.75 |
1.5 | 0.85 | 1.17 | ||
1.8 | 1.23 | 1.68 | ||
2 | 1.52 | 2.08 | ||
2.5 | 2.38 | 3.25 | ||
3 | 3.42 | 4.69 | ||
4 |
±0.070 | 6.09 | 8.33 | |
5 | 9.52 | 13.03 | ||
6 |
±0.060 | 13.71 | 18.76 | |
7 | 18.66 | 25.54 | ||
8 |
±0.050 | 24.38 | 33.35 | |
10 | 38.1 | 52.12 | ||
12 | 54.86 | 75.05 | ||
14 | 74.67 | 102.16 | ||
16 | 97.53 | 133.43 | ||
18 | 123.44 | 168.88 | ||
20 | 152.4 | 208.49 | ||
24 | 219.45 | 300.23 | ||
26 | 257.55 | 352.35 |
Welcome contact us for 7x19 stainless steel cable with stainless steel 304,304l,316,316L wire cables and wire rope fittings inquiry.we could supply you steel wire rope and wire rope rigging hardware one stop service.
7x19 Stainless Steel Cable from 0.5mm to 12mm, constructed of 7 strands and 19 wires per strand. 7x19 construction makes this cable very flexible. bare wire rope or coated wire rope with wire rope riggigs could supply you one stop service from our company.
7x19 Stainless Steel Cable is used for a wide range of applications. Extremely flexible when compared to both 1x19 and 7x7, the 7x19 construction is often used where a flexible stainless steel wire rope is particularly required. 7x19 performs well for running applications. Used extensively throughout the marine industry as well as for general engineering applications, 7x19's excellent flexibility make it a favourite for control cable and a variety of marine rigging applications, examples of which are shown below:
constr | Dia.(mm) | Tolerance | Appro Weight(Kg/100m) | MBL/KN |
7x19 | 1.2 | ±0.080 | 0.54 | 0.75 |
1.5 | 0.85 | 1.17 | ||
1.8 | 1.23 | 1.68 | ||
2 | 1.52 | 2.08 | ||
2.5 | 2.38 | 3.25 | ||
3 | 3.42 | 4.69 | ||
4 |
±0.070 | 6.09 | 8.33 | |
5 | 9.52 | 13.03 | ||
6 |
±0.060 | 13.71 | 18.76 | |
7 | 18.66 | 25.54 | ||
8 |
±0.050 | 24.38 | 33.35 | |
10 | 38.1 | 52.12 | ||
12 | 54.86 | 75.05 | ||
14 | 74.67 | 102.16 | ||
16 | 97.53 | 133.43 | ||
18 | 123.44 | 168.88 | ||
20 | 152.4 | 208.49 | ||
24 | 219.45 | 300.23 | ||
26 | 257.55 | 352.35 |
Welcome contact us for 7x19 stainless steel cable with stainless steel 304,304l,316,316L wire cables and wire rope fittings inquiry.we could supply you steel wire rope and wire rope rigging hardware one stop service.
