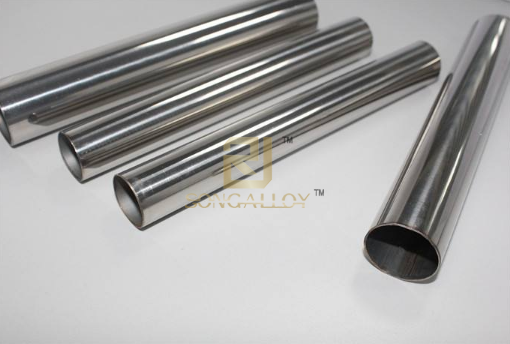

420 Stainless Steel Pipe

420 stainless steel: with certain wear resistance and corrosion resistance, high hardness, similar to Brinell high chromium steel, the earliest stainless steel. It's also used for surgical knives. It's very bright. 420 stainless steel is suitable for all kinds of precision machinery, bearings, electrical, equipment, instruments, meters, transportation tools, household appliances, etc. It is mainly used to make parts resistant to atmospheric, steam, water and oxidizing acid corrosion
Availability:
Quantity:
  • O.D.: Φ60mm~219mm, W.T.: 4mm~35mm.

  • Ruiyang

  • 7304319000

420 stainless steel pipe,420 Seamless Stainless Steel Pipe Tube For High Temperature And Pressure,420 stainless steel we call 2Cr13 steel grade,For high temperature and pressure boiler and petrochemical, for example heating-pipelines, pressure pipelines, coal-saving devices, containers, heat exchangers, superheaters and reheaters. (P≥9.8MPa,T>450℃)

Sizes of 420 Seamless Stainless Steel Pipe Tube For High Temperature And Pressure

 O.D: Φ60mm~219mm, W.T.: 4mm~35mm.


Mechanical Properties of 420 seamless stainless steel pipe tube for high temperature and pressure):



Steel Grade

(MPa)

Tensile Strength

ReL or Rp0.2(MPa)

Elongation

(%)

absorbed energy

(KV2/J)

Longitudinal

Transverse

Longitudinal

Transverse


2Cr13(TP420)

415

215

20

-

Chemical Composition, Mass Fraction(%)of seamless stainless steel pipe TP420:

Steel Grade

C

Si

Mn

P

S

Cr

Mo

Ni

 other










2Cr13(TP420)

0.16~0.25

1.00

1.00

0.035

0.030

12.00~14.00

-

-

-

Meanwhile,We also could supply other stainless steel seamless pipe tube as below:

TP304 , 304L, 304H, 304N, 316, 316L 316Ti, 317L, 310S, 321, 321H, 347H, S31803, S32750, 347, 330, 825, 904L,12X18H9, 08X18H10, 03X18H11, 08X18H10T, 20X25H20C2, 08X17H13M2T, 08X18H12E.

1.4301, 1.4306, 1.4401, 1.4404, 1.4435, 1.4541, 1.4571, 1.4563, 1.4462, 1.4845,

SUS304, SUS304L, SUS316, SUS316L, SUS321, SUS310S ,420,430,410,446etc ss round pipe supply

When you need and find who could produce and supply 420 Seamless Stainless Steel Pipe tube for High Pressure,Where to buy 420 seamless stainless steel pipe,please contact us directly
