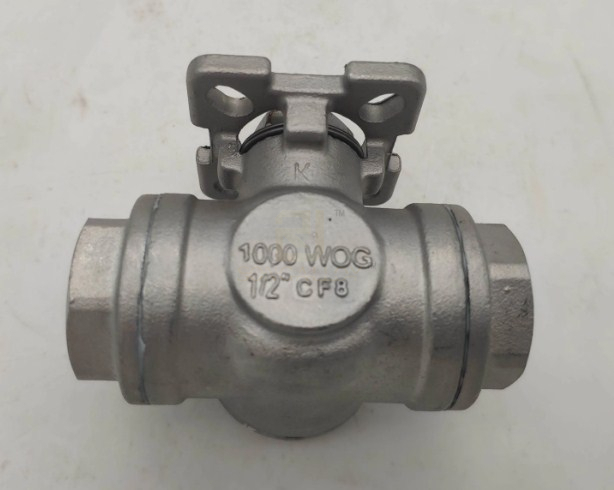

3-Way Thread Floating Ball Valve with ISO 5211 High Mounting Pad

3-Way Thread Floating Ball Valve with ISO 5211 High Mounting PAD details as below
1.Investment casting body
2.Working pressure 1000 psi for W.O.G.
3.Adjustable stem packing
4.Pure PTFE seals and seats
5.Temperature range: -60 to 450 °F
6.ISO5211 direct mounting pad design for Actuators
7.Blow-out proof stem, solid ball as per customer request
8.100% leakage tested at 100 psi air under water
9.Hydrostatic test pressure: 1500psi
10.Locking device handle (option)
Welcome contact us to buy ss valves 3-Way Thread Floating Ball Valve with ISO 5211 High Mounting PAD
Availability:
Quantity:
  • 1/4''~4'' ( DN6~DN100)

  • songalloy

Our products 3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD customed

3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD Stainless steel 304 material supplied

3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD Stainless Steel 316 produce and supply

3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD SS304L material supplying

3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD SS316L stainless steel valves supply

3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD in casting material CF8,CF8M,CF3,CF3M supply

What is the sizes of 3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD

1/4''~4'' ( DN6~DN100)

3 way thread floating ss ball valves ISO 5211 details
Portreduced Port
Working Pressure1000PSI (PN63,6.3Mpa)
Connection Endsthread
Working Temp.-20~300ºC
Suitable MediumWater, Natural Gas, Oil and some corrosive liquid
SealPTFE, RPTFE, PPL
LockingOption
Inspection & TestingAccording to API598
Delivery Time15~20 Days
PackageStandard Exporting Plywood Case
Shipping PortNingbo/Shanghai, China
Shipping TermsExw, FOB, CFR, CIF, etc.
Payment TermsT/T,30% prepayment, 70% balance paid before shipping
Warranty18 Months after leaving factory
AdvantageOEM/ODM is applicable

Welcome contact us to buy stainless steel valves with 3-Way Thread Floating Ball Valve with ISO 5211 Mounting PAD inquiry with your necessary infomation
