Nickel alloys are some of the most useful materials for manufacturing technically superior pipes and tubes for industrial applications. Their inherent properties make them viable for a wide range of uses. Nickel alloys are exceptionally corrosion resistant and can be used in high-temperature environments.

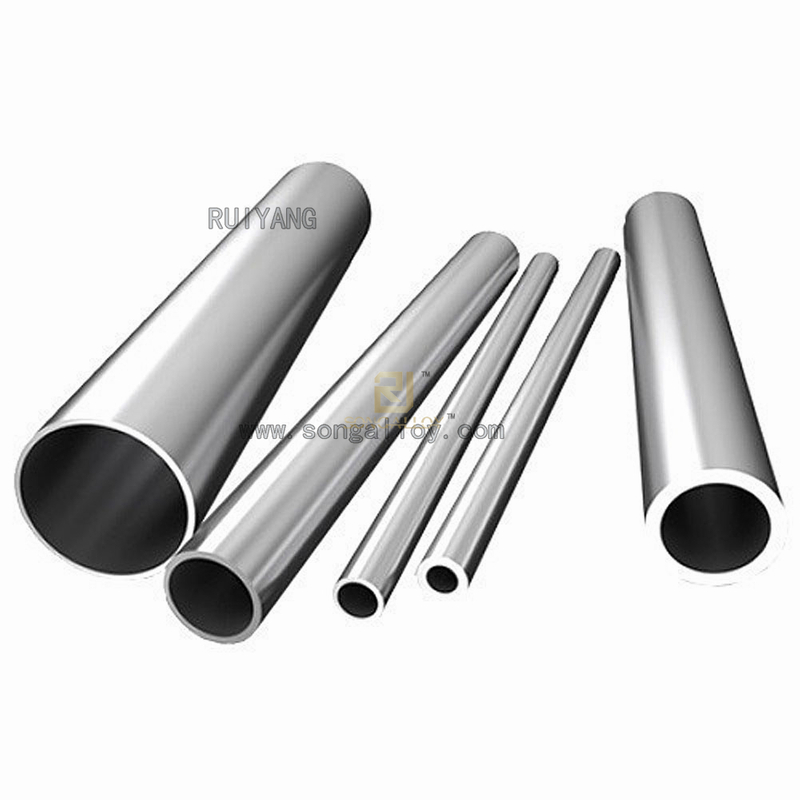

Pure nickel pipe,pure nickel tube,Nickel 200 steel pipe detailed
Pure Nickel pipe | Ni200 Nickel Tube |
Standard | ASTMB161, ASMEB161,ASTM B163, ASTM B725, ASTM B751 |
Grade | N4,N6,Ni200,Ni201 |
Technology | Hot Rolled Tube,Cold Rolled Pipe |
Outer Diameter(OD) | 10-2000mm |
Thickness(WT) | 0.4-50 mm |
Length(L) | 1-12 m |
Welding nickel tube sizes | Outer diameter:Φ4.76-135mm,WT:0.25-4.00mm,Length:≤35000 mm |
Seamless nickel tube sizes | Outer diameterΦ3-114mm,Wall Thickness 0.2-4.5mm |
Nickel pipe application | 1)Nickel was used in produce stainless steel and heat resistance steel 2)electroplating 3)catalyst in oil industry 4)Nickel is one of the chemical source of energy 5)Nickel are made for battery 6)Nickel used to make pigment,dye,ceramic,and ferrite |
Ni200 chemical components and properties
Chemical component | ||||||
Ni | Fe | C | S | Mn | Si | Cu |
≥99.0 | ≤0.40 | ≤0.15 | ≤0.01 | ≤0.35 | ≤0.35 | ≤0.25 |
typical mechancial properties | ||||||
yield strengthen(0.2% offset) | tensile strength | Elongation % in 2 inches | ||||
105Mpa | 380Mpa | 35 |
Related Nickel Alloy Steel pipe- Alloy B/ N10001,Alloy B2/N10665,Alloy B3/N10675,Alloy C4/N06455,Alloy C22/N06022,Alloy C276/N10276,Alloy C2000/N06200,Alloy G35/N06035,Alloy G30/N06030,Alloy S/N06635,Alloy N/N10003,Alloy X/N06002,Alloy 188/R30188,Alloy 230/N06230,Alloy 556/R30556 Alloy 600/ N06600,Alloy 601/N06601,Alloy 617/N06617,Alloy 625/N06625,Alloy 718/N07718,Alloy X750/N07750,Alloy 800/N08800,Alloy 800H/N08810,Alloy 800HT/N08811,Alloy 825/N08825,Alloy 925/N09925,Alloy 926/N08926/Alloy 400/ N04400,Alloy K500/N05500
Nickel: N4/UNS N02201,N6/UNS N02200
Welcome to contact us for 200 nickel pipe inquiry and order.here will supply you one stop service good price good quality soonest delivery.
