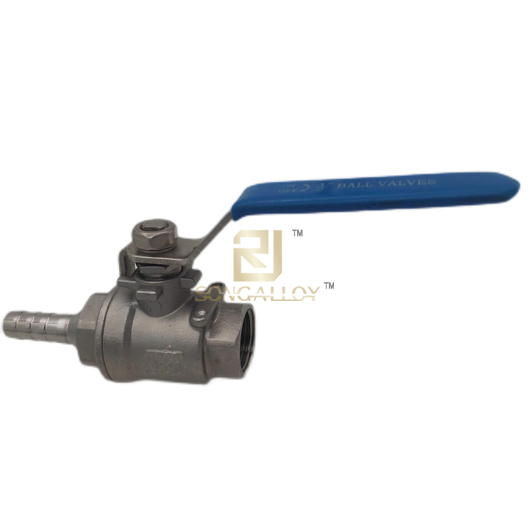

2 Piece Stainless Steel Ball Valve we also called 2PC Stainless Steel Hose X Female Floating Ball Valve with locking.2PC Thread Ball Valve has different connection ends,like NPT/BSP/BSPT/DIN259/DIN2999 it is a form of quarter-turn valves,it is floating type.It has reduce port and full port,use the ball to open and close the ss valve.
Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff applications, where they are often preferred to gates and globe valves, but they lack their fine control in throttling applications.
Operating and Test Conditions of SS valves:
Maximum Working Pressure (RTFE):
1000 PSI WOG (1/4"-2")
800 PSI WOG (2 1/2"-3")
All ss valves are shell and seat tested to ANSI/ASME B16.34 and API 598
All ss materials comply with applicable ASTM material specifications
End connections NPT to B1.20.1 and B16.34
Our 2 piece stainless steel ball valves competitive advantages:
OEM/ODM is applicable
Offer sample for testing
100% test before delivery
12 months warranty
2 piece stainless steel ball valves details supplying | ||
---|---|---|
stainless valves | 2PC Stainless Steel Hose X Female Floating Ball Valve with locking | |
ss valveType | Floating,Trunnion/Fixed,Full weld,Top,Side ball valve | |
ss valve Standard | API,JIS,DIN,BS,PY | |
2 pcs ss valves Size | 1/2"-4",(DN15-DN100) | |
valves Pressure | ANSI CLASS: 150#-2500# | |
JIS: 10K-40K . | ||
DIN: PN10-PN64 | ||
Valve Body/Bonnet | A216 WCB, A105,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti,A351 CF8,CF3,CF8M,CF3M Etc. | |
Ball | A105,WCB,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti,CF8,CF3,CF8M,CF3M Etc. | |
Lining Seats | PTFE(F4),PCTFE(F3),FEP(F46),PFA | |
Packing Cover | A105,WCB,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti,CF8,CF3,CF8M,CF3M Etc. | |
ss valves sealing material | PTFE(F4),PTFE/RPTFE/PPL option for different material,temperature and medium | |
Handle | stainless steel | |
Valves Working Pressure | 1.6-6.4Mpa | |
Working Temperature | -29°C--+180°C,some valves could reach 300ºC | |
Connection | BSP/BSPT/NPT/Flanged/BW/SW | |
Operated | Lever,Handwheel,Worm gear,Hydrostatic,Pneumatic, Electric | |
Valves Application scope | Water,Oil,Gas and some corrosion medium | |
Valves Package | Plywood box or according to specific customer needing suitable for long-time sea shipments |
Welcome contact us to buy stainless steel ball valves,buy 2 piece stainless steel ball valves from us,also titanium valves for your choice.
