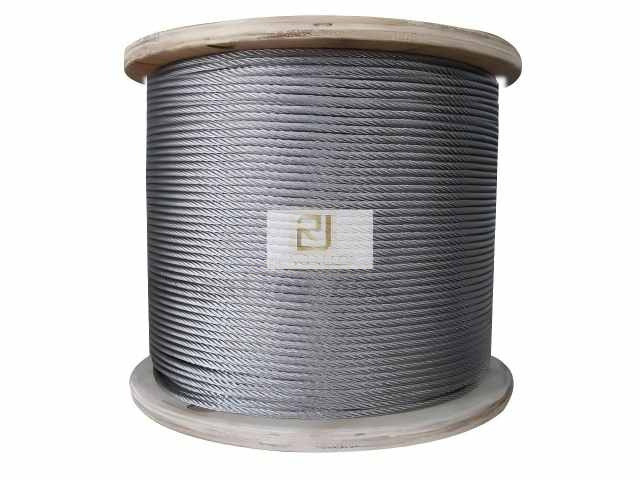

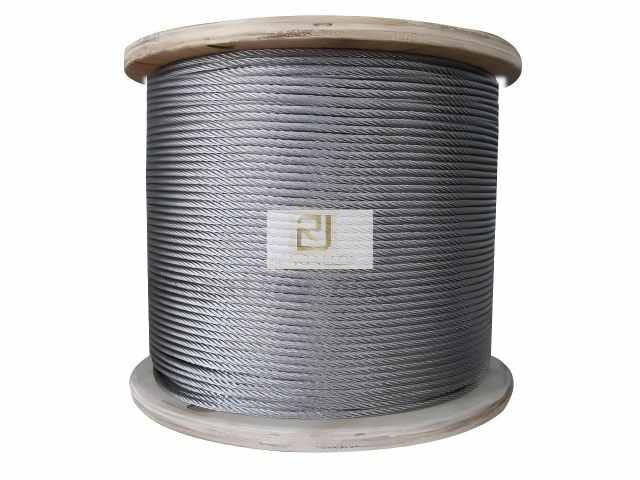

1x37 Stainless Steel Cable produce and supply by Ruiyang company,with professional factory and tech person to slove your inquiry in steel wire ropes.
1×37 structure indicates that this stainless steel wire rope is composed of1 outer strand, which contains37 individual steel wires-twisted together. Compared with multi-strand wire ropes, the single-strand 1×37 design has a simpler structure and more compact arrangement, which provides a balance between flexibility and breaking strength.
1x37 Stainless Steel Cable diameter:0.5-20mm usually,material always 304 stainless steel and 316 stainless steel,316L stainless steel.
1x37 stainless steel wire rope details dia and weight for refer | ||||
Stainless Steel Cable construction | Dia.(mm) | Tolerance | Appro Weight(Kg/100m) | MBL/KN |
1x37 Stainless Cable | 5 | ±0.07.0 | 12.23 | 20.41 |
1x37 Stainless Cable | 6 | ±0.08.0 | 17.6 | 29.39 |
1x37 Stainless Cable | 8 | ±0.1 | 31.3 | 52.25 |
1x37 Stainless Cable | 10 | 48.9 | 81.64 | |
1x37 Stainless Cable | 12 | 70.42 | 117.56 | |
1x37 Stainless Cable | 14 | 95.84 | 160.01 | |
1x37 Stainless Cable | 16 | 125.18 | 208.99 | |
1x37 Stainless Cable | 18 | 154.44 | 264.51 | |
1x37 Stainless Cable | 20 | 195.6 | 326.56 | |
How to choose 304 stainless steel wire rope 1x37 and 316 stainless steel wire rope 1x37?
When we choose we need know the Core Material Properties of 304 and 316 stainless steel first.stainless steel wire ropes All wires in ss wire ropes are made of stainless steel, with common grades including304 stainless steeland316 stainless steel:304 stainless steel characters:Good general corrosion resistance,suitable for most indoor,dry atmosphere and mild water environment applications, with lower cost than 316.316 stainless steel characters because of Added molybdenum element,has excellent resistance to salt spray,acid and alkaline corrosion,specially designed for marine environment, chemical engineering and other harsh corrosive scenarios.
Stainless steel material itself has non-magnetic (or weak magnetic after processing), high temperature resistance, low temperature toughness and no rust discoloration advantages, can maintain stable performance in long-term use, will not pollute the environment or the contact medium.
Welcome contact us to buy 1x37 Stainless Steel Cable,just mail us info@topqualityalloy.com,we aim to supply you right goods with best price and soonest delivery and safe package.
