OD19-610mm
Ruiyang
73043920

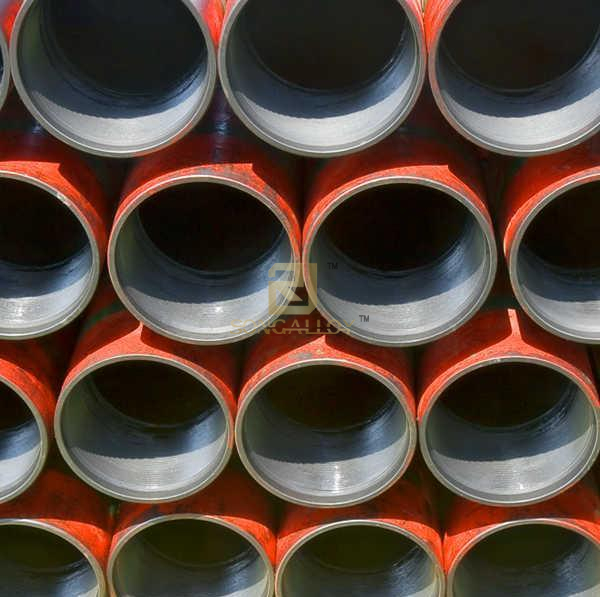

Oil And Casing Tube API 5CT standard supply,this technical specifications for steel casing and tubing pipes used for oil wells in petroleum and natural gas industries.
Besides casing and tubing, it also includes pup joints, coupling stock, coupling material, and accessory materials, and establishes requirements for three product specification levels (PSL-1,PSL-2 and PSL-3)
| Oil and casing tube API5CT | |
|---|---|
| Oil & casing Tubing Sizes: | 1.05'',1.315'',1.66'',1.9'', 2-3/8'',3-1/2''and 4-1/2'' |
| Ends Type: | BTC,UN,EUE, Premium ends that could completely replace the tubing premium connection of Vam, Tenaris,Hunting,TSH etc. |
| Length of the Tubing in API 5CT Spec: | R2, R3 |
| Standard | API 5 CT,API |
| Steel grades | J55/K55,N80/N80Q/L80,P110/C110,C90,R95/T95,Q125 |
The requirements for PSL-1 are the basis of this standard.
Connections API 5CT is applicable to following connections which complied with API SPEC 5B:
SC: Short round thread casing
LC: Long ound thread casing
BC: Buttress thread casing
NU: Non-upset tubing
EU: External upset tubing
IJ: Integral tubing connections
Groups of Grade of casing tubes
Group 1: All casing and tubing in Grades with H, J, K, N and R
Group 2: All casing and tubing in Grades with C, L, M and T
Group 3: All casing and tubing in Grade P
Group 4: All casing in Grade Q
Welcome contact us for Oil And Casing Tube inquiry.
