M3-M24
RuiYang

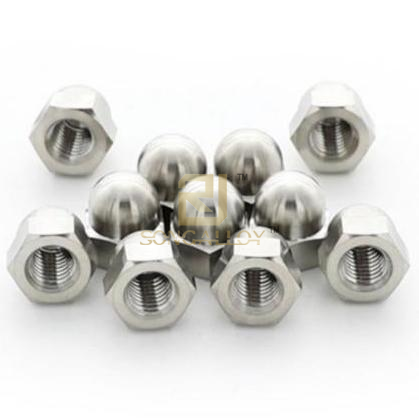

We are an acorn bolts stainless supplier,could supply GB/T923 Stainless Steel Acorn Nuts
ss acorn nut is the same as that of the hexagonal nut.
Stainless acorn nuts characteristic is that the main nut is not easy to slip when the wrench is used for assembly and disassembly. Assembly and disassembly. It is mostly used on rough and simple components.stainless steel acorn nuts used to withst and vibration and alternating loads,GB/T 923 ss nut can prevent the nut from loosening and coming out.Cap nut with insert,the insert taps out the inner thread by tightening the nut, which can prevent loosening and has good elasticity.

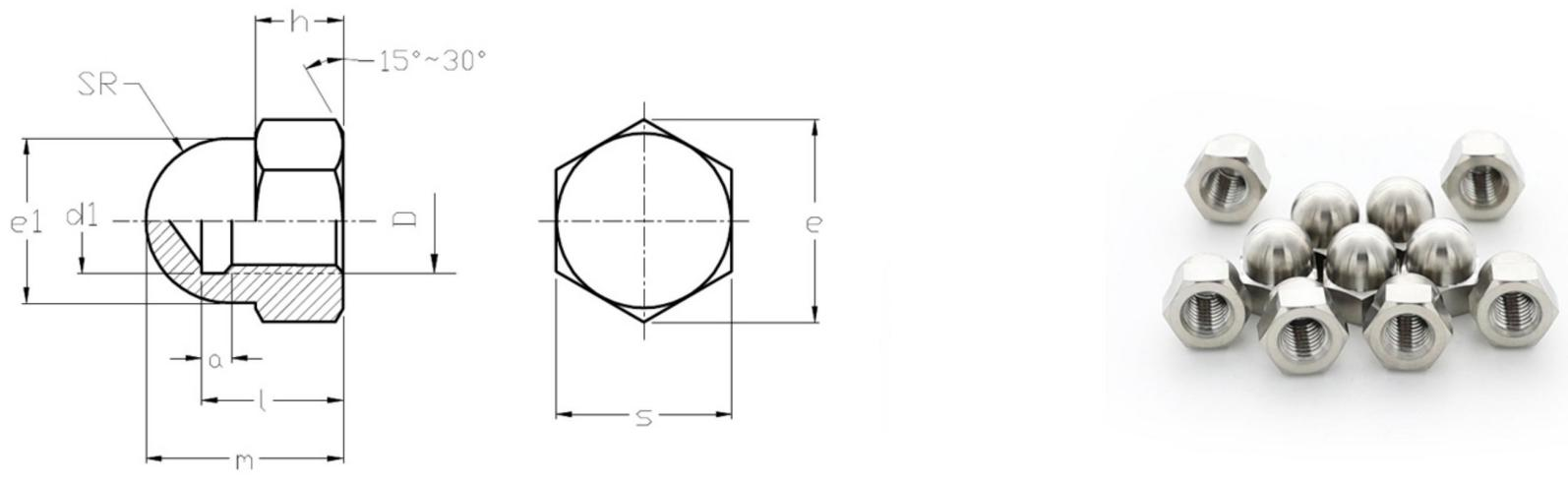

Dimensions of GB/T923 Stainless steel Acorn Nuts sizes as below:
Often used sizes are m6 stainless steel dome nuts m8 stainless steel dome nuts,m10 stainless steel dome nuts,m12 stainless steel dome nuts acorn nuts
D | P | h | e | e1 | a | m | d1 | l | s | SR | |
pitch | min | max | min | max | min | ≈ | |||||
M3 | 0.5 | 2.5 | 6.01 | 5 | / | 6 | / | 5 | 5.5 | 5.32 | 2.5 |
M4 | 0.7 | 3 | 7.66 | 6 | / | 7 | / | 5 | 7 | 6.78 | 3 |
M5 | 0.8 | 4 | 8.79 | 7.2 | 2 | 9 | 5.5 | 6 | 8 | 7.78 | 3.6 |
M6 | 1 | 5 | 11.05 | 9.2 | 2.5 | 11 | 6.5 | 7 | 10 | 9.78 | 4.6 |
M8 | 1.25 | 6 | 14.38 | 13 | 3 | 15 | 8.5 | 11 | 13 | 12.73 | 6.5 |
M10 | 1.5 | 8 | 17.77 | 16 | 4 | 18 | 10.5 | 13 | 16 | 15.73 | 8 |
M12 | 1.75 | 10 | 20.03 | 18 | 4.5 | 22 | 13 | 16 | 18 | 17.73 | 9 |
（M14） | 2 | 11 | 23.35 | 20 | 5 | 24 | 15 | 17 | 21 | 20.67 | 10 |
M16 | 2 | 13 | 26.75 | 22 | 5 | 26 | 17 | 19 | 24 | 23.67 | 11.5 |
（M18） | 2.5 | 14 | 29.56 | 25 | 6 | 29 | 19 | 22 | 27 | 26.16 | 12.5 |
M20 | 2.5 | 16 | 32.95 | 28 | 6 | 32 | 21 | 25 | 30 | 29.16 | 14 |
（M22） | 2.5 | 18 | 37.29 | 30 | 6 | 35 | 23 | 26 | 34 | 33 | 15 |
M24 | 3 | 19 | 39.55 | 34 | 7 | 38 | 25 | 28 | 36 | 35 | 17 |
Welcome contact us for GB/T923 Stainless Steel Acorn Nuts inquiry,please mail us info@topqualityalloy.com with necessary sizes,material and quantity for inquiry and order.
Not only supply ss acorn nuts,related titanium acorn nuts also supply
